Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

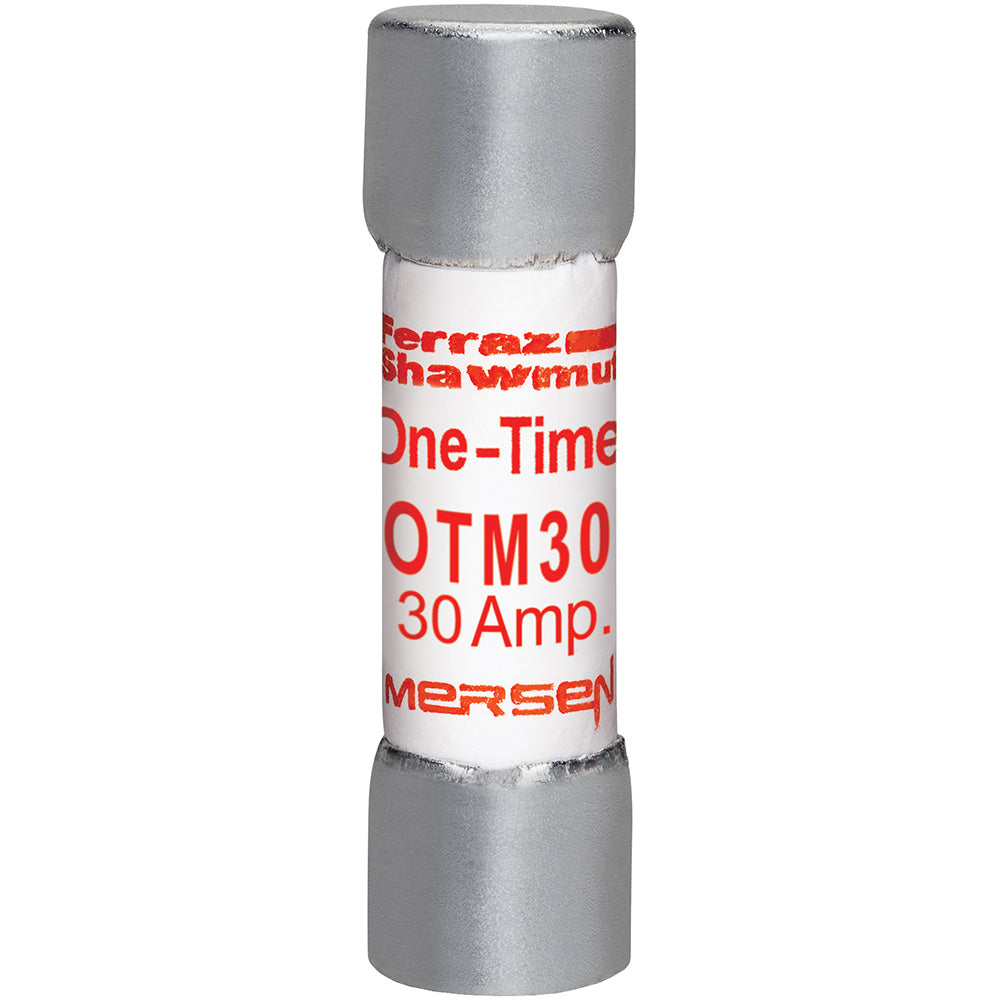

OTM30
OTM30 is a fast-acting midget fuse from Mersen Ferraz Shawmut designed for 30 ampere and 250 volt AC applications.This one-time use fuse features a 1-pole configuration with a compact midget frame size. It provides reliable overcurrent protection with a 10kA interrupting rating at 250V AC. The fuse is UL 248-14 and CSA C22.2 certified, suitable for general purpose lighting, heating, and control circuits requiring fast-acting protection.
- Amperage: 30A
- Voltage: 250V AC
- Poles: 1
- Fuse Type: Fast-Acting Midget
- Interrupting Rating: 10kA at 250V
- Frame Type: OTM (One-Time Midget)
- Dimensions: 1.5 inch length, 0.41 inch diameter
- Certifications: UL 248-14, CSA C22.2
- Application: General purpose lighting, heating, control circuits
Specifications
- Part Number: OTM30
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : One-Time
- Type : OTM
- Voltage : 250
- Amperage : 30
- AIC rating : 10kA@250V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782001705152
- GTIN : 00782001705152
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.01
