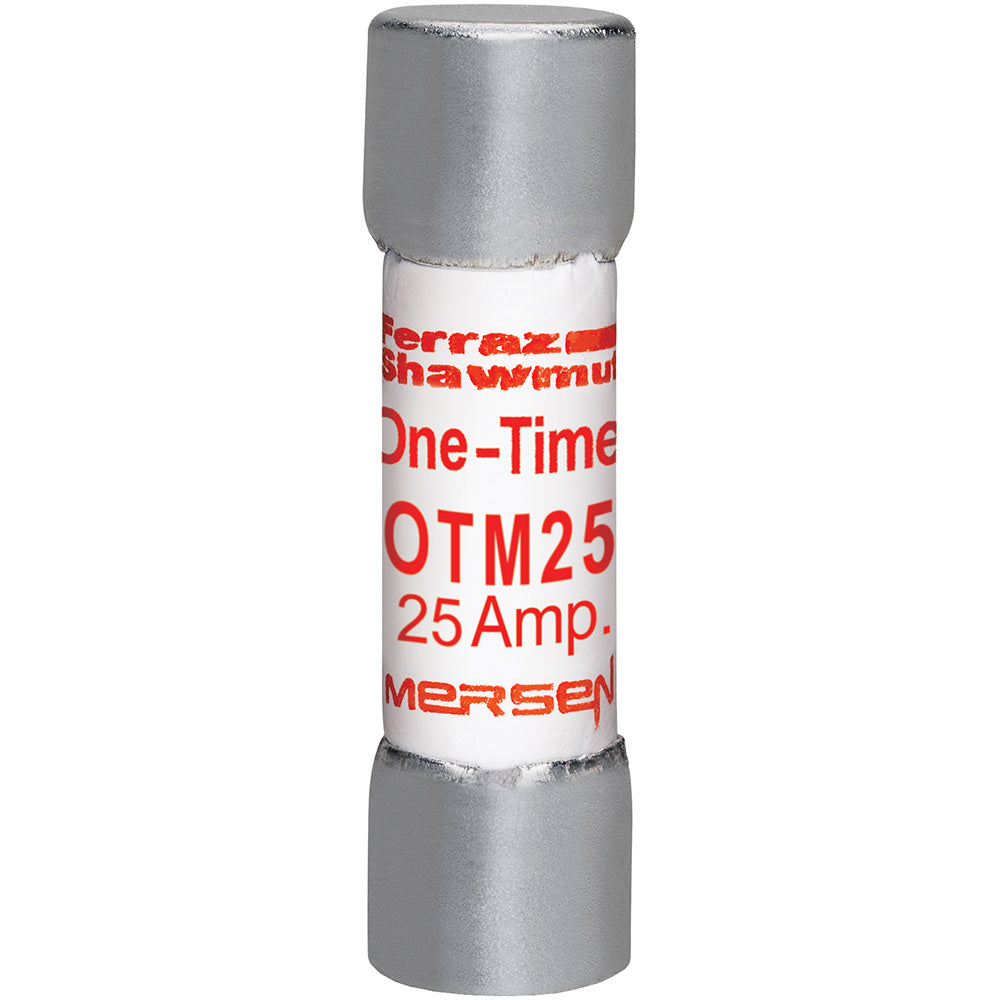

OTM25 - Mersen Ferraz Shawmut 25A 250V AC 1-Pole Midget Fast Acting Fuse

OTM25

OTM25 is a 25 amp, 250 volt AC, 1-pole midget fast acting fuse by Mersen Ferraz Shawmut.This OTM25 fuse features a fast-acting characteristic designed for general purpose applications where time delay is not required. It has a physical size of 13/32" x 1 1/2" and a high interrupting rating of 10,000 AIC at 250VAC. The fuse is UL listed to standard 248-14 and CSA certified to C22.2 No. 248.14, ensuring compliance with safety standards. It is intended for use in low voltage circuits and is compatible with UltraSafe™ fuse holders. This single-pole fuse is a one-time use device providing reliable circuit protection.

Key Specifications
• Amperage: 25A
• Voltage: 250VAC
• Poles: 1
• Mounting Type: Midget Fuse
• Interrupt Rating: 10,000 AIC @ 250VAC
• Frame/Series: OTM
• Trip Unit: Fast Acting
• Certifications: UL Listed (248-14), CSA Certified (C22.2 No. 248.14)
• Physical Size: 13/32" x 1 1/2"
• Fuse Type: One Time Use
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: OTM25
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 250
• Amperage : 25
• AIC rating : 10kA@250V
• Diameter : 0.41
• Class Rating : Ferrule
• Barrels : 1



Product Data

• UPC : 78200170514
• GTIN : 00782001705145
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 0.01
