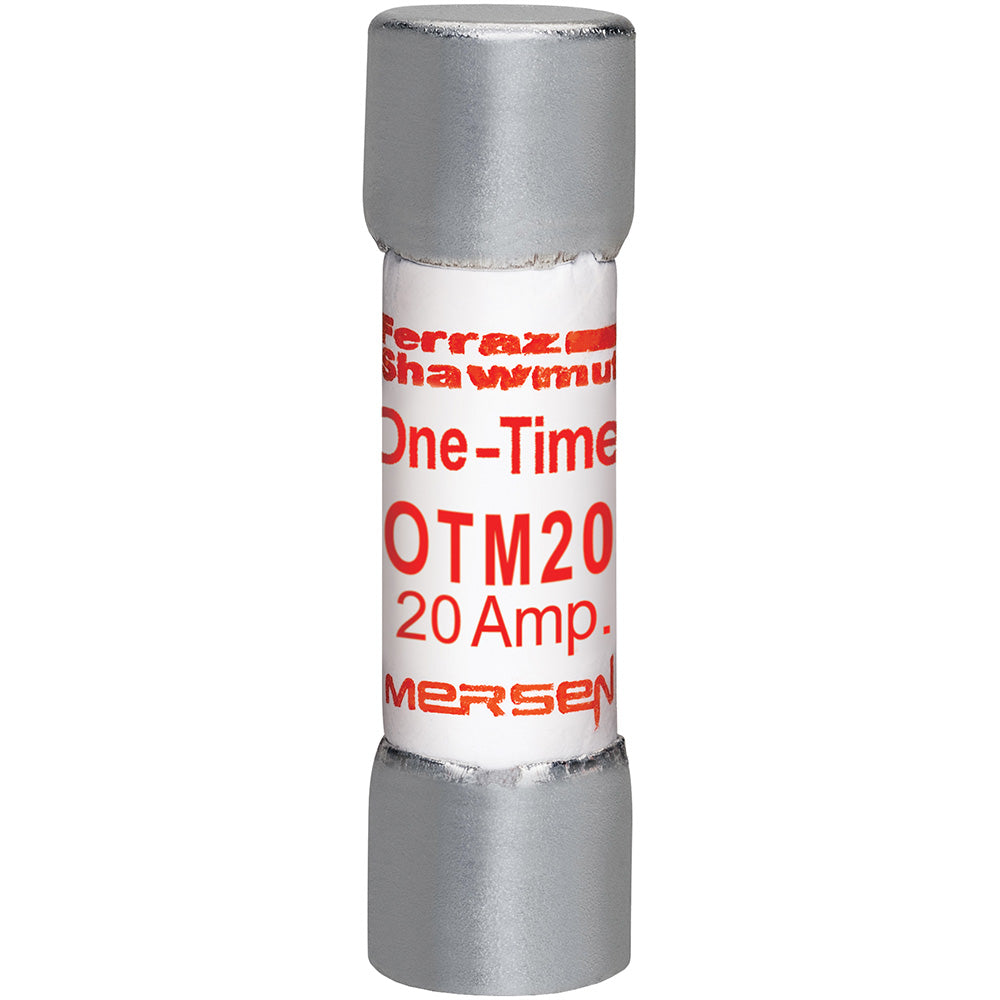

OTM20 - Mersen Ferraz Shawmut 20 Amp 250 Volt 1-Pole Fast Acting Midget Fuse

OTM20

OTM20 is a fast acting midget fuse from Mersen Ferraz Shawmut designed for 20 ampere circuits at 250 volts AC.This one-time use fuse features a fast acting characteristic with a high interrupting rating of 10,000 amperes at 250VAC. It is a 1-pole fuse with a physical size of 13/32 inch diameter by 1 1/2 inch length, suitable for general purpose protection in lighting and heating circuits where time delay is not required. The fuse has a ferrule terminal type and is UL listed to standard 248-14 and CSA certified to C22.2 No. 248.14.

Key Specifications
• Amperage: 20 Amps
• Voltage Rating: 250 Volts AC
• Poles: 1
• Fuse Type: Midget, Fast Acting
• Interrupting Rating: 10,000 AIC @ 250VAC
• Physical Size: 13/32" diameter x 1 1/2" length
• Mounting Type: Ferrule terminal
• Series: OTM
• Certifications: UL Listed 248-14, CSA Certified C22.2 No. 248.14
• One-Time Use
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: OTM20
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : One-Time
• Type : OTM
• Voltage : 250
• Amperage : 20
• AIC rating : 10kA@250V
• Diameter : 0.41
• Class Rating : Midget
• Barrels : 1



Product Data

• UPC : 078200170513
• GTIN : 00782001705138
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 0.01
