Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
OTM15

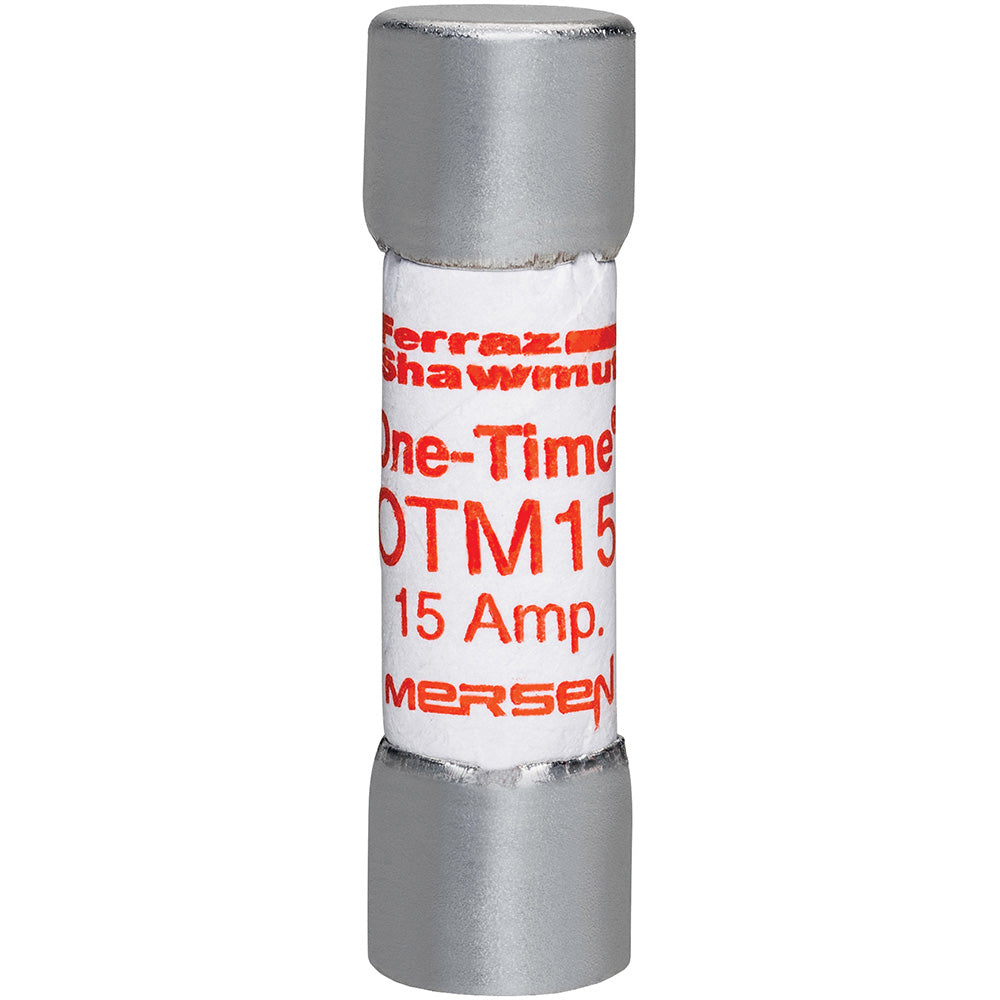

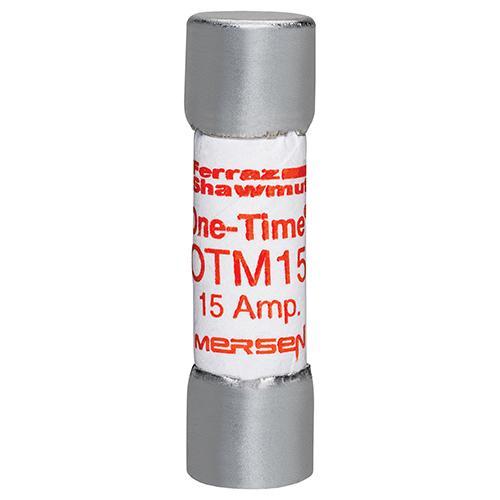

OTM15 is a fast-acting midget fuse designed for reliable circuit protection in low-voltage applications. This Ferraz Shawmut Mersen fuse features a 15A current rating and a maximum voltage of 250V AC, making it suitable for a wide range of industrial and commercial uses. The OTM15 fuse is constructed with a ferrule amp-trap design and offers a high interrupting rating of 10,000 amps, ensuring safety and durability under fault conditions. It is UL 248-14 and CSA C22.2 certified for compliance with industry standards. The fuse is one-time use and features fast-acting characteristics for quick response to overcurrent events.
- Part Number: OTM15
- Manufacturer: Ferraz Shawmut, Mersen
- Amperage: 15A
- Voltage: 250V AC
- Interrupting Rating: 10kA
- Mounting Type: Midget (Ferrule)
- Series/Frame: OTM
- Fast-Acting
- One-Time Use
- UL 248-14 Certified
- CSA C22.2 Certified
- Physical Size: 13/32" x 1 1/2"
Specifications
- Part Number: OTM15
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : One-Time
- Type : OTM
- Voltage : 250
- Amperage : 15
- AIC rating : 10kA@250V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 078200170512
- GTIN : 00782001705121
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.01
