OT45 - Ferraz Shawmut 45A 250V Class K5 Fast-Acting General Purpose Fuse

OT45

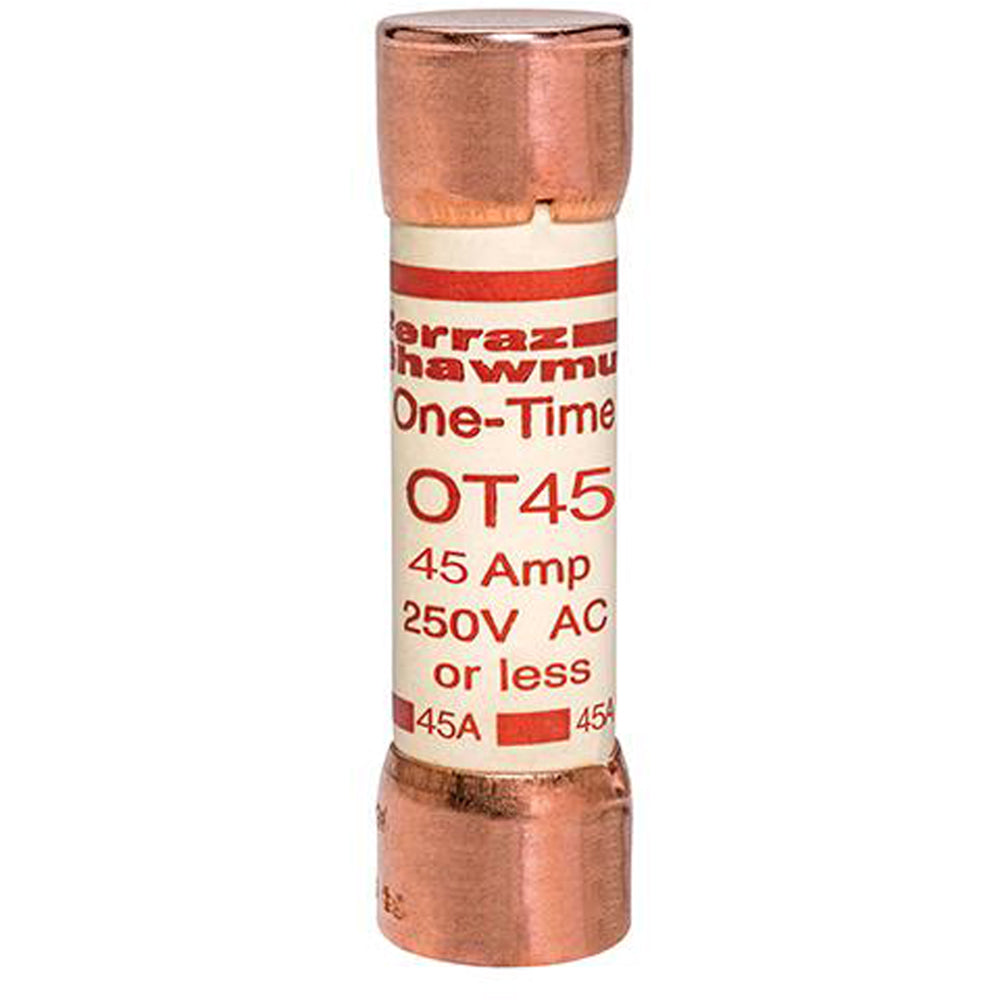

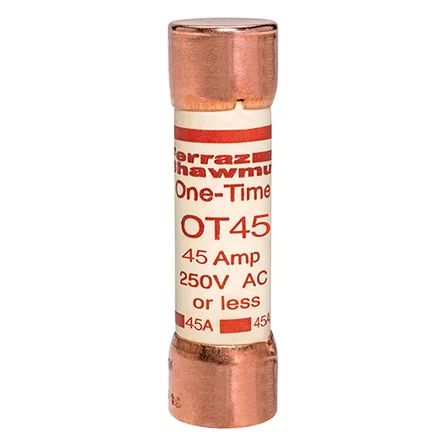

OT45 is a Ferraz Shawmut 45 Amp, 250 Volt Class K5 fast-acting general purpose fuse designed for low cost protection in residential and small commercial installations.This cylindrical one-time fuse features a 0.81 inch diameter and 3 inch overall length. It is rated for 45 amps and 250 volts AC/DC with a high interrupting rating of 50,000 AIC at 250 VAC and 20,000 AIC at 250 VDC. The OT45 fuse is UL 248/248-9 and CSA C22.2 certified and is suitable for circuits serving non-inductive loads. It is a non-rejection type fuse providing reliable short circuit protection.

Key Specifications
• Amperage: 45A
• Voltage Rating: 250V AC/DC
• Fuse Class: K5
• Fuse Timing: Fast-Acting
• Body Type: Cylindrical
• Overall Length: 3 inches (76.2 mm)
• Diameter: 0.81 inches (20.7 mm)
• Interrupting Rating: 50,000 AIC @ 250 VAC, 20,000 AIC @ 250 VDC
• One-Time Use
• Non-Rejection Type
• Certifications: UL 248/248-9, CSA C22.2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: OT45
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : OT Series
• Type : OT
• Voltage : 250
• Amperage : 45
• AIC rating : 50kA@250V
• Diameter : 0.81
• Class Rating : K-5
• Barrels : 1

Product Data

• UPC : 782001700171
• GTIN : 00782001700171
• Country of Origin : Mexico
• Dimensions : x 3 in x
• Weight : 7
