Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
OT40

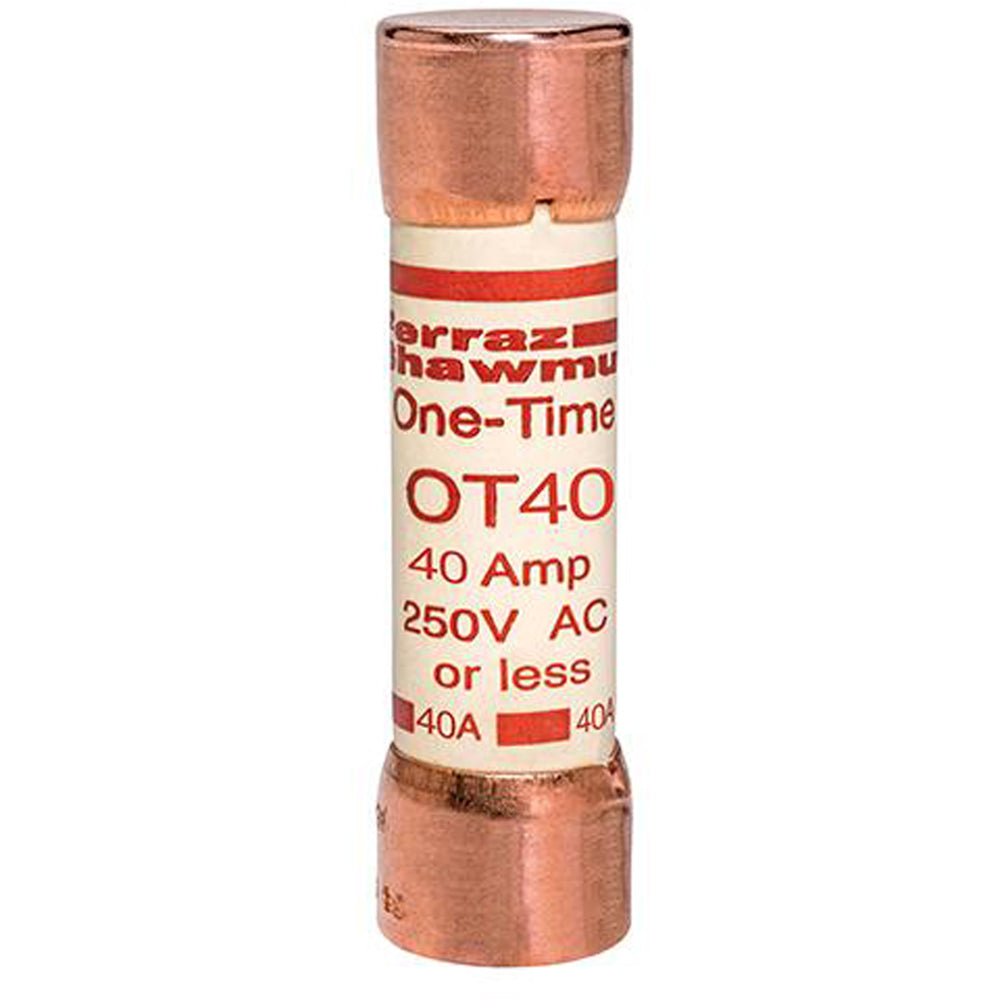

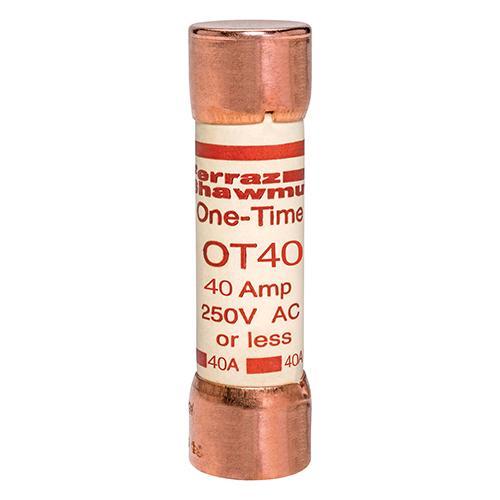

OT40 is a Ferraz Shawmut 40 Amp, 250 Volt Class K5 one-time fuse designed for low voltage circuit protection.This fuse features a fast-acting, one-time operation with a 50,000 A interrupting rating at 250 VAC and 20,000 A at 250 VDC. It is a non-rejection type fuse with a physical size of 13/16" x 3" suitable for residential and small commercial installations serving non-inductive loads. The OT40 complies with UL 248/248-9 and CSA C22.2 certifications.
- Key Specifications
- Amperage: 40 Amps
- Voltage Rating: 250 VAC / 250 VDC
- Fuse Class: K5
- Interrupting Rating: 50,000 AIC @ 250 VAC, 20,000 AIC @ 250 VDC
- Poles: 1 Pole
- Mounting Type: Ferrule Terminal
- Physical Size: 13/16" x 3"
- Fuse Type: One-Time, Fast-Acting
- Non-Rejection Type
- Certifications: UL 248/248-9, CSA C22.2
Specifications
- Part Number: OT40
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : OT Series
- Type : OT
- Voltage : 250
- Amperage : 40
- AIC rating : 50kA@250V
- Diameter : 0.81
- Class Rating : K-5
- Barrels : 1
Product Data
- UPC : 782001700164
- GTIN : 00782001700164
- Country of Origin : Mexico
- Dimensions : x 3 in x
- Weight : 0.08
