Product Info
- Manufacturer:Merson
- Sub-Category:Low Voltage Fuse
Description
OT4

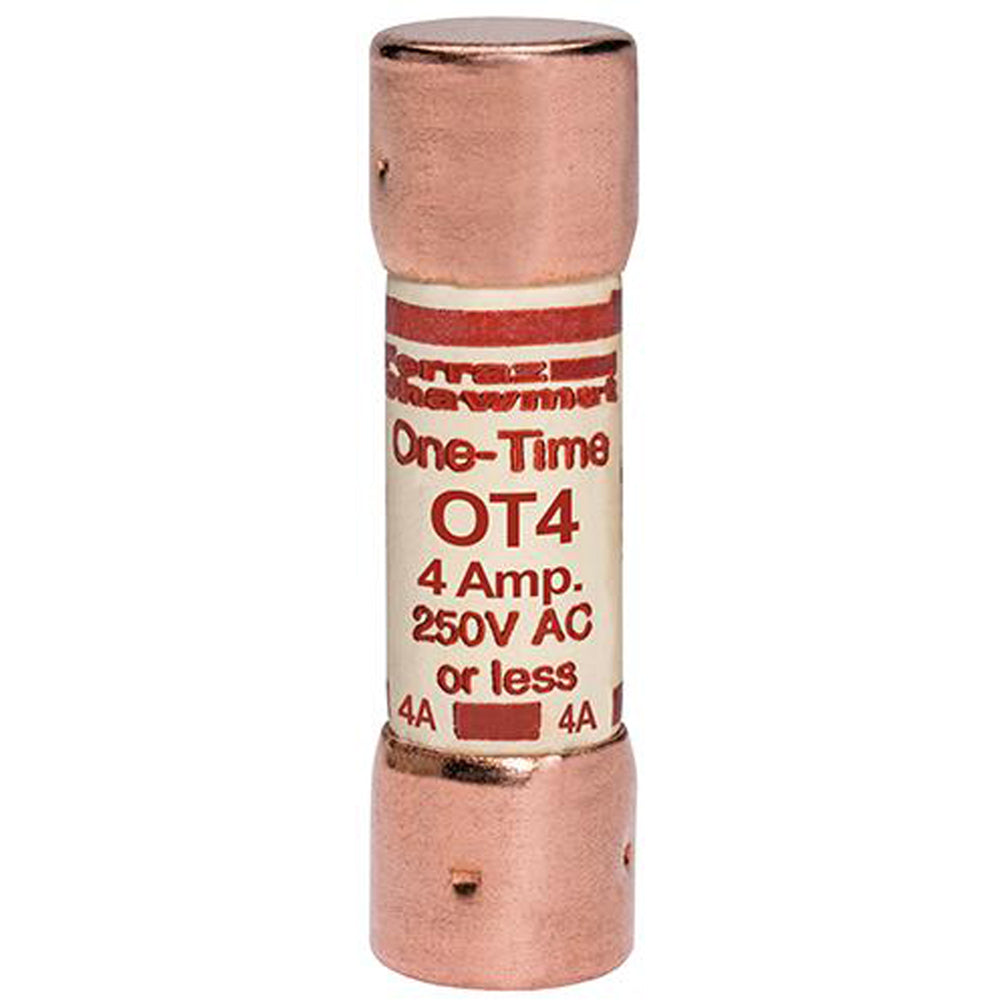

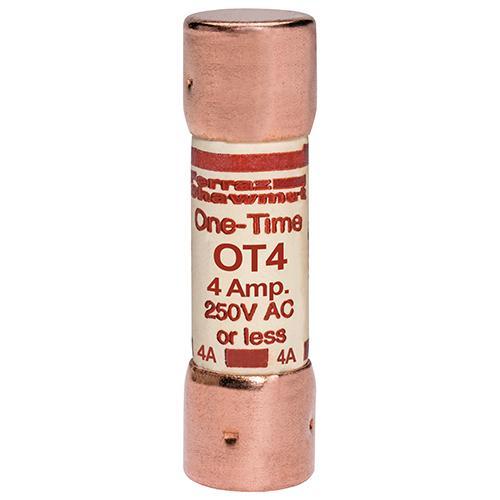

OT4 is a Mersen 4 Amp fast-acting cartridge fuse designed for low voltage protection.This fuse features a 250 Volt AC/DC rating and a 50 kA interrupt rating, classified as UL Class K5. It is a one-time use fuse with a clip mounting type and ferrule terminal connection. The fuse body is made of paper insulating material, measuring 0.56 inches in diameter and 2 inches in length, suitable for general purpose circuit protection.
- Key Specifications
- Amperage: 4 A
- Voltage Rating: 250 V AC/DC
- Interrupt Rating: 50 kA at 250 V AC
- Fuse Class: UL Class K5
- Speed: Fast-Acting (One Time Use)
- Mounting Type: Clip
- Terminal Connection: Ferrule, Copper
- Body Material: Paper Insulating
- Dimensions: 0.56 in diameter x 2 in length
- Certifications: UL, CSA, RoHS Compliant
- Part Number: OT4
- Manufacturer : Merson
- Brand : Ferraz Shawmut
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : OT Series
- Type : OT
- Voltage : 250
- Amperage : 4
- AIC rating : 50kA@250V
- Diameter : 0.56
- Class Rating : K-5
- Barrels : 1
- UPC : 782001700034
- GTIN : 00782001700034
- Country of Origin : Mexico
- Dimensions : x 2 in x
- Weight : 0.04
