Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

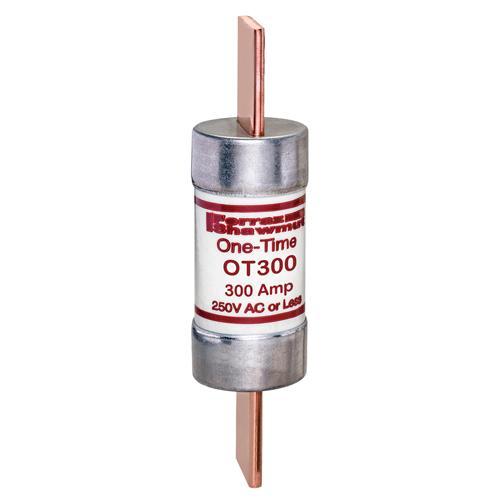

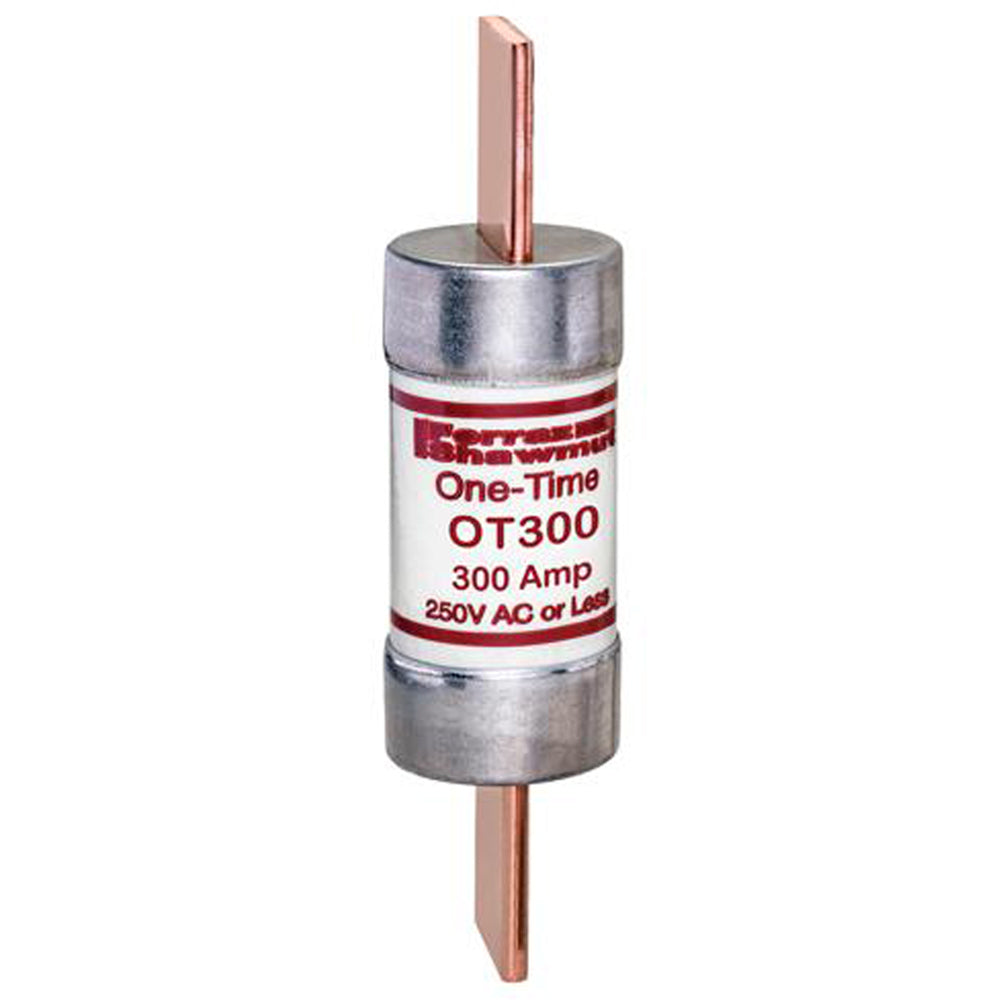

OT300
OT300 is a 300 Amp, 250 Volt AC/DC Class K5 one-time fuse from Eaton designed for reliable circuit protection.This fast-acting fuse features a clip mounting type and is rated for 50,000 AIC interrupting capacity at 250VAC and 20,000 AIC at 250VDC. It is intended for non-inductive load circuits in residential and small commercial installations, providing low-cost, dependable protection.
- Key Specifications
- Amperage: 300A
- Voltage Rating: 250VAC / 250VDC
- Fuse Class: K5
- Speed: Fast-Acting (One-Time Use)
- Interrupting Rating: 50,000 AIC @ 250VAC
- Interrupting Rating: 20,000 AIC @ 250VDC
- Mounting Type: Clip Mount
- Physical Size: 2 1/16" x 8 5/8"
- Application: Non-Inductive Loads
- Certifications: UL Listed
- Part Number: OT300
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : OT Series
- Type : OT
- Voltage : 250
- Amperage : 300
- AIC rating : 50kA@250V
- Diameter : 1.06
- Class Rating : K-5
- Barrels : 1
- UPC : 782001700447
- GTIN : 00782001700447
- Country of Origin : Mexico
- Dimensions : x 8.63 in x
- Weight : 7
