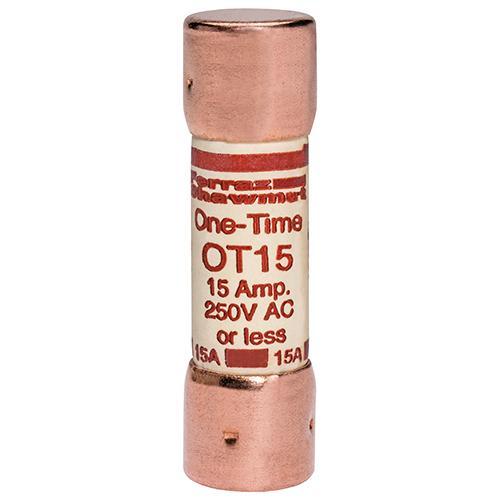

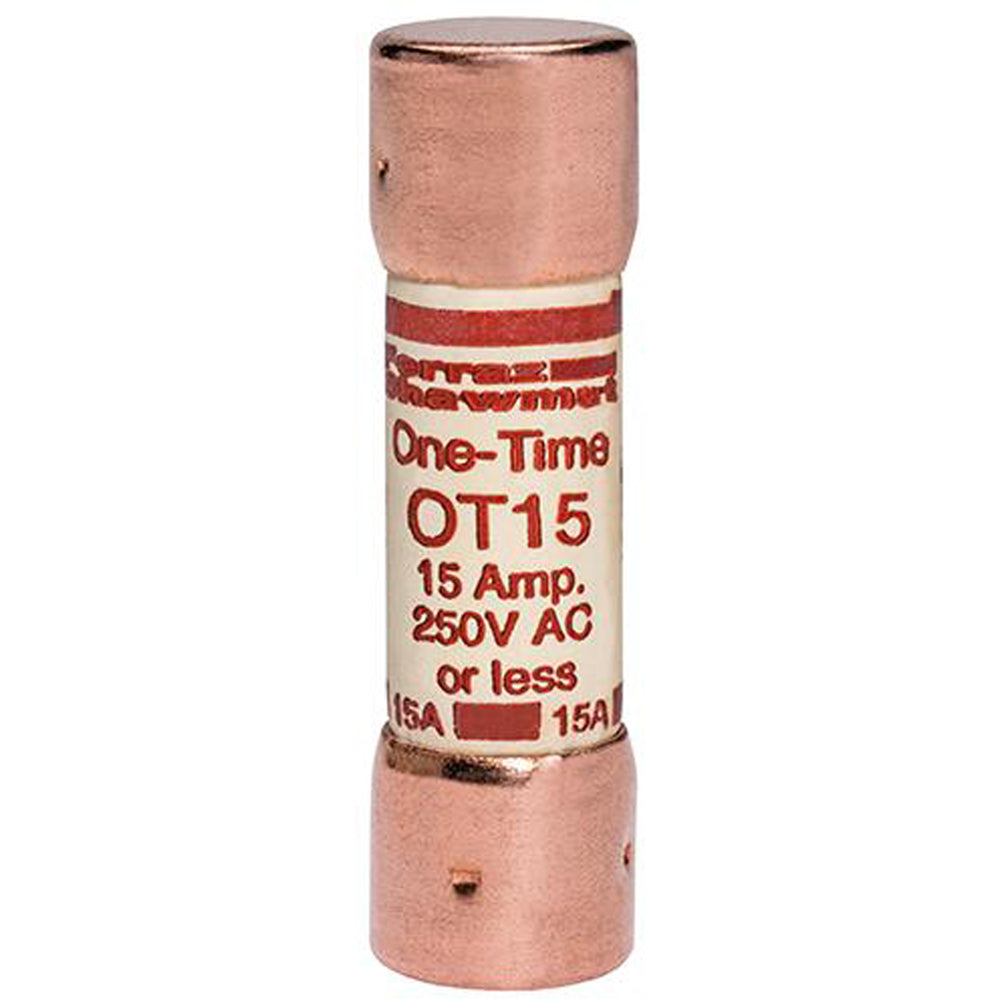

OT15 - Ferraz Shawmut 15A 250V Class K5 Fast-Acting Fuse Cartridge Holder Mount

OT15

OT15 is a Ferraz Shawmut Class K5 fast-acting fuse rated for 15 amps and 250 volts AC/DC, designed for cartridge holder mounting.This OT15 fuse provides low-cost protection for non-motor loads with a high interrupting rating of 50,000 amps at 250VAC and 20,000 amps at 250VDC. It features a fast-acting, one-time use characteristic suitable for general purpose circuit protection. The fuse measures approximately 0.56 x 2 inches (14mm diameter by 51mm length) and complies with UL 248/248-9 and CSA C22.2 certifications.

Key Specifications
• Amperage: 15A
• Voltage Rating: 250VAC/250VDC
• Fuse Class: K5
• Fuse Type: Fast-Acting (one-time use)
• Interrupting Rating: 50,000 AIC at 250VAC, 20,000 AIC at 250VDC
• Mounting Type: Cartridge holder mount
• Dimensions: 0.56 x 2 inches (14mm x 51mm)
• Certifications: UL 248/248-9, CSA C22.2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: OT15
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : OT Series
• Type : OT
• Voltage : 250
• Amperage : 15
• AIC rating : 50kA@250V
• Diameter : 0.56
• Class Rating : K-5
• Barrels : 1

Product Data

• UPC : 782001700119
• GTIN : 00782001700119
• Country of Origin : Mexico
• Dimensions : x 2 in x
• Weight : 7
