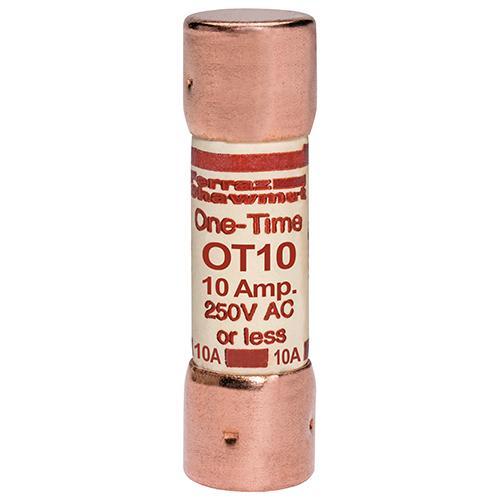

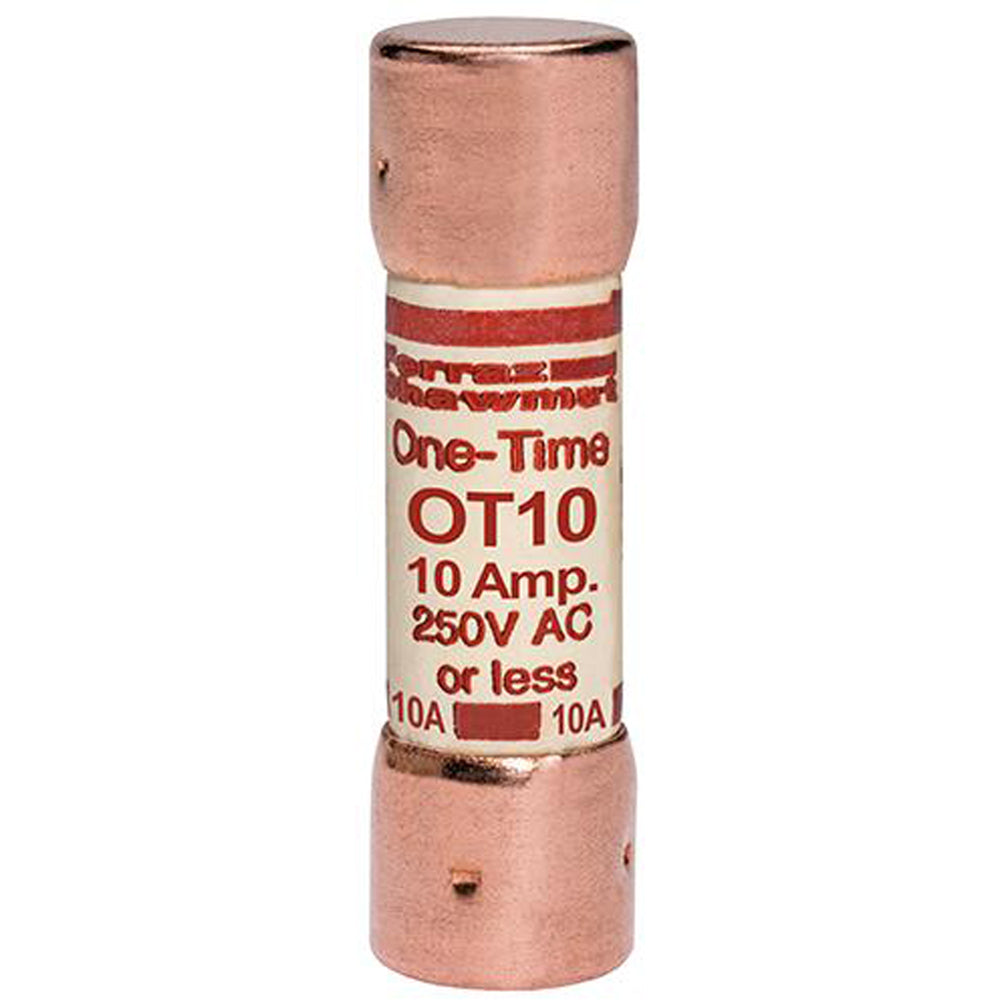

OT10 - Ferraz Shawmut 10A 250V One-Time Class K5 General Purpose Fuse

OT10

OT10 is a Ferraz Shawmut 10 amp, 250 volt one-time general purpose fuse designed for low cost protection of feeder and branch circuits serving lighting, heating, and other non-motor loads.This UL Class K5 fuse features a fast-acting characteristic with a high interrupt rating of 50,000 amperes, suitable for both AC and DC applications. It is non-rejection type and UL Listed to Standard 248-9, CSA Certified to Standard C22.2 No. 248.9, and DC tested to UL Standard 198L. The fuse has a physical size of 9/16 inch diameter by 2 inches length, providing reliable protection in residential and small commercial installations.

Key Specifications
• Amperage: 10 Amps
• Voltage Rating: 250 Volts AC/DC
• Fuse Type: One-Time (Non-Rejection)
• Class: K5
• Interrupt Rating: 50,000 Amperes
• Physical Size: 9/16 inch diameter x 2 inch length
• Approvals: UL Listed 248-9, CSA Certified C22.2 No. 248.9
• Mounting Type: Cartridge Fuse
• Application: Feeder and Branch Circuits, Lighting, Heating
• Fast Acting Characteristic
• RoHS Compliant (some ratings)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: OT10
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : OT Series
• Type : OT
• Voltage : 250
• Amperage : 10
• AIC rating : 50kA@250V
• Diameter : 0.56
• Class Rating : K-5
• Barrels : 1



Product Data

• UPC : 782001700096
• GTIN : 00782001700096
• Country of Origin : Mexico
• Dimensions : x 2 in x
• Weight : 7
