Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Part And Accessory
Description

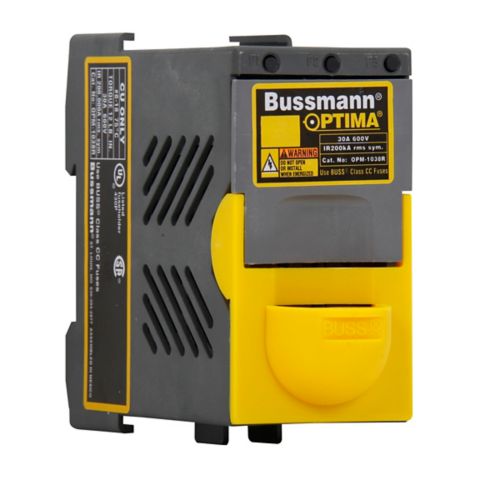

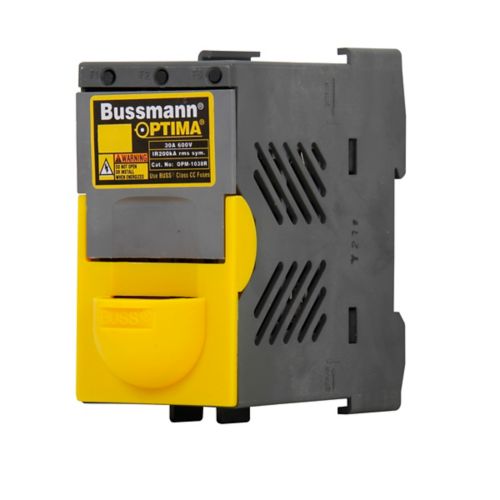

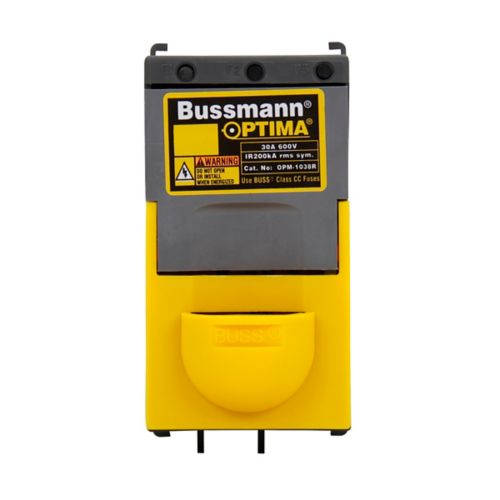

OPM-1038R
OPM-1038R is a 30 amp, 600 volt, 3-pole Class CC fuse holder from Eaton's Optima series designed for reliable overcurrent protection.OPM-1038R features a thermoplastic housing, finger-safe terminals, and compatibility with 13/32 inch x 1-1/2 inch (10x38mm) Class CC fuses. It supports #10-18 AWG solid and #8-18 AWG stranded wire, offers a 200 kA interrupt rating, and mounts easily on DIN rails. The fuse holder includes open fuse indication and rejection features to ensure proper fuse installation and safety compliance with UL 512 and IEC standards.
- Key Specifications
- Amperage: 30A
- Voltage Rating: 600V AC/DC
- Poles: 3
- Mounting Type: DIN Rail
- Interrupt Rating: 200 kAIC
- Fuse Size: 13/32 in x 1-1/2 in (10x38mm)
- Fuse Type: Class CC
- Material: Thermoplastic
- Wire Range: #10-18 AWG solid, #8-18 AWG stranded
- Open Fuse Indication: Yes
- Certifications: UL 512, IEC 269-2-1, CSA
Specifications
- Part Number: OPM-1038R
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Fuse Part And Accessory
Product Data
- UPC : 51712797245
- GTIN : 00051712797245
- Country of Origin : Mexico
- Dimensions : 3.60 in x 3.61 in x 3-3/4 in
- Weight : 0.535
