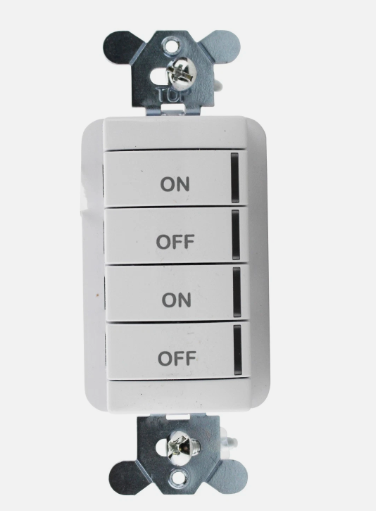

NPODM-2P-WH - Acuity Controls nLight 2-Pole Network Wall Pod, 5 mA, White

NPODM-2P-WH

NPODM-2P-WH is a 2-pole, nLight-enabled network wall pod for local lighting zone control with soft-click push-button operation and green LED indicators.The NPODM-2P-WH provides convenient scene selection and on/off or raise/lower control for lighting zones. It features field-replaceable, customizable buttons and daisy-chain wiring via two RJ-45 ports for integration with nLight network devices. Designed for single gang switch box or low voltage ring mounting, this wall pod is suitable for a wide range of commercial and institutional applications.

• Manufacturer: Acuity Controls
• Part Number: NPODM-2P-WH
• Series: nPODM
• Number of Poles: 2
• Power Consumption: < 5 mA
• Mounting Type: Single Gang Switch Box or Low Voltage Ring
• Color: White
• Network Connection: 2 RJ-45 Ports
• Operating Temperature: 14º to 160ºF (-10º to 71ºC)
• Storage Temperature: -14º to 160ºF (-26º to 71ºC)
• Relative Humidity: 20 to 90% non-condensing
• Weight: 2 oz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NPODM-2P-WH
• Manufacturer : Acuity Controls
• Brand : Acuity Controls
• Category : Switch
• Item Subcategory : Parts & Accessories
• Compatible Frames : TFJ

Product Data

• UPC : 74597790361
• GTIN : 00745977903618
• Weight : 5
