Product Info
- Manufacturer:Eaton
Description
NPJ3484 S4

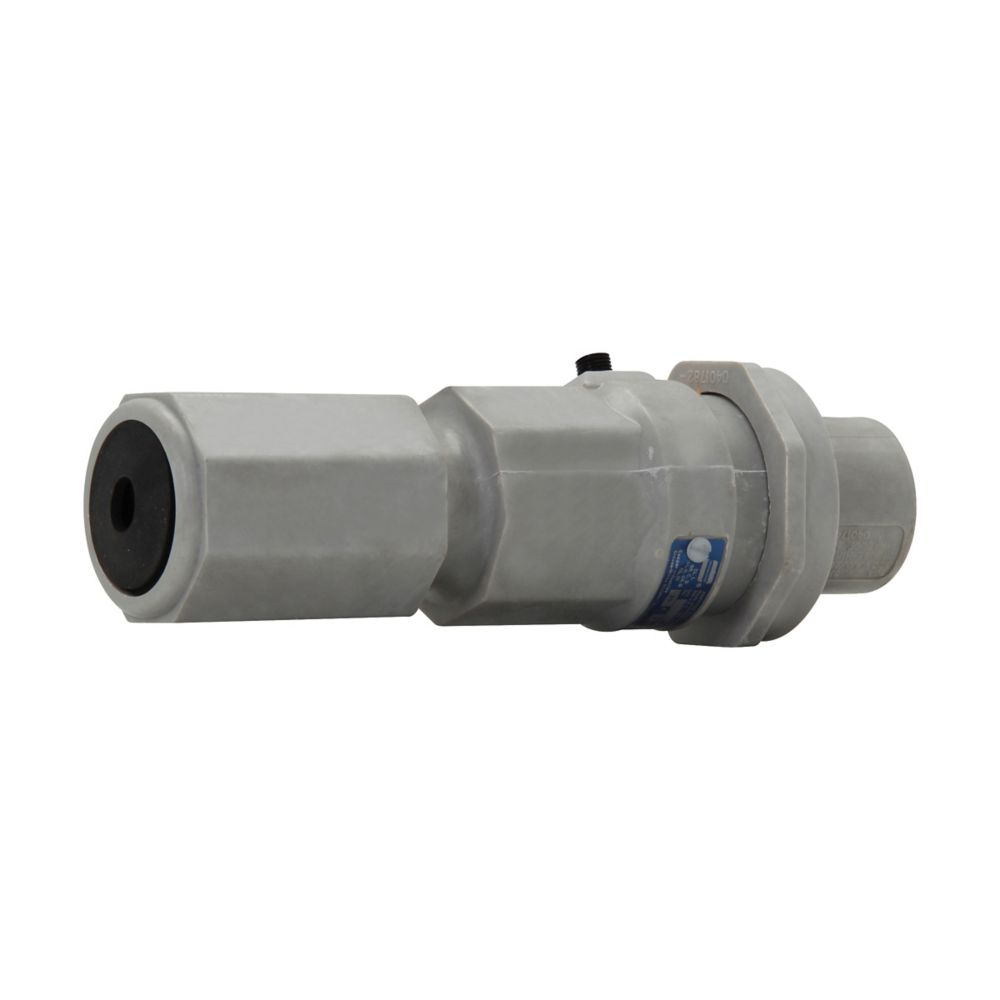

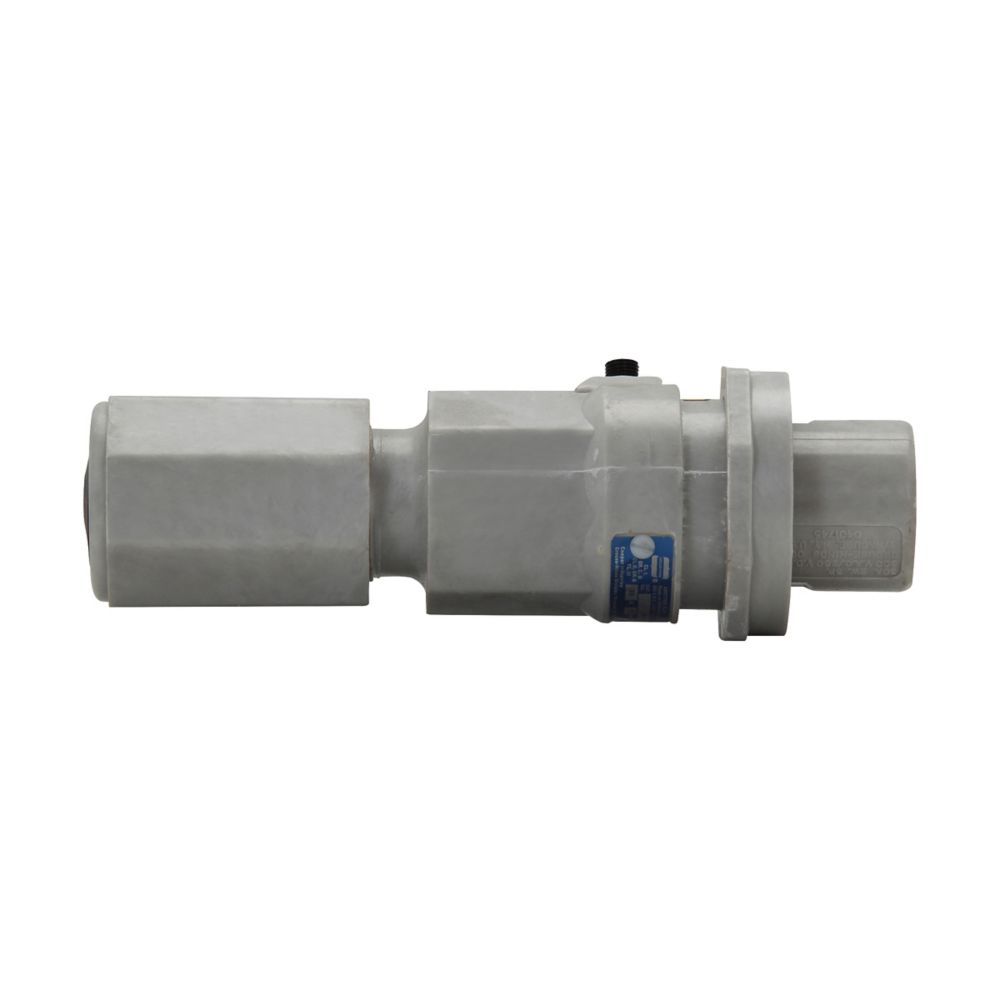

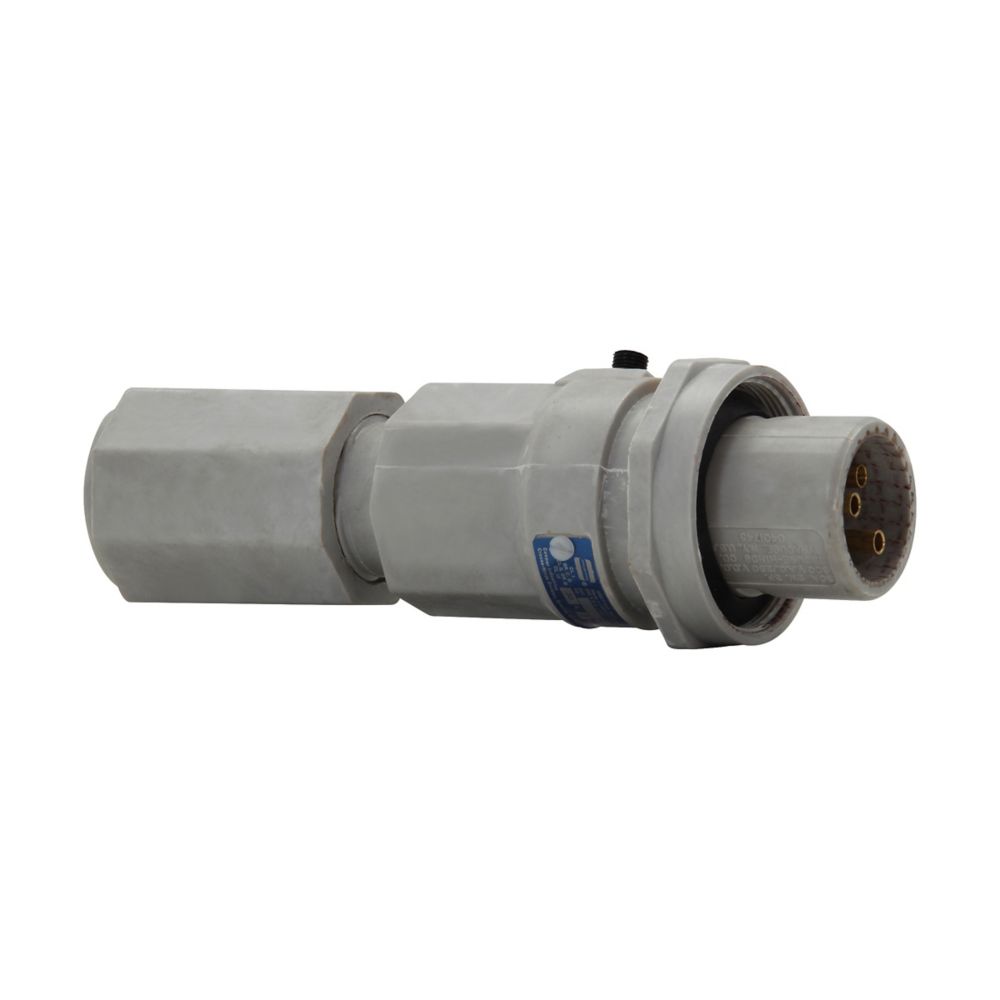

NPJ3484 S4 is an Eaton Crouse-Hinds series Arktite non-metallic plug designed for heavy-duty industrial applications. This watertight, grounding-style plug features a three-wire, four-pole configuration with a molded Krydon fiberglass-reinforced polyester construction that provides superior corrosion resistance. The plug locks into receptacles for positive, worry-free power engagement and includes an optional window for viewing fuses. Key Specifications
- Part Number: NPJ3484 S4
- Manufacturer: Eaton
- Amperage: 30 A
- Voltage: 125-250 VAC
- Frequency: 50-400 Hz
- Poles: 4
- Wire Size: 0.70-0.85 in
- Certifications: NEC/CEC Class I Division 1 and 2 Groups C, D; UL 1010; CSA C22.2 No. 30
- Material: Krydon fiberglass-reinforced polyester
- NEMA Rating: 3, 3R, 4, 12, 4X
Specifications
- Part Number: NPJ3484 S4
- Manufacturer : Eaton
- Brand : Eaton
- Category : Wiring Devices
- Item Subcategory : Pin and sleeve devices
- Voltage : 125-250 VAC
- Amperage : 30 A
- Poles : 4
- Class Rating : NEC/CEC Class I Division 1 and 2 Groups C, D
- Wire : 0.70-0.85 in
- Nema Rating : 3, 3R, 4, 12, 4X
- Hz : 50-400 Hz
- Material : Krydon fiberglass-reinforced polyester
- Special features : Interior rotated 22-1/2 degrees
Product Data
- UPC : 782274307596
- Dimensions : 8.5 in x 3.19 in x 3.19 in (Length/Depth x Height x Width)
- Weight : 1.8 lb
