Product Info
- Manufacturer:Eaton
Description
NPFMA20LCY/UNV34 76

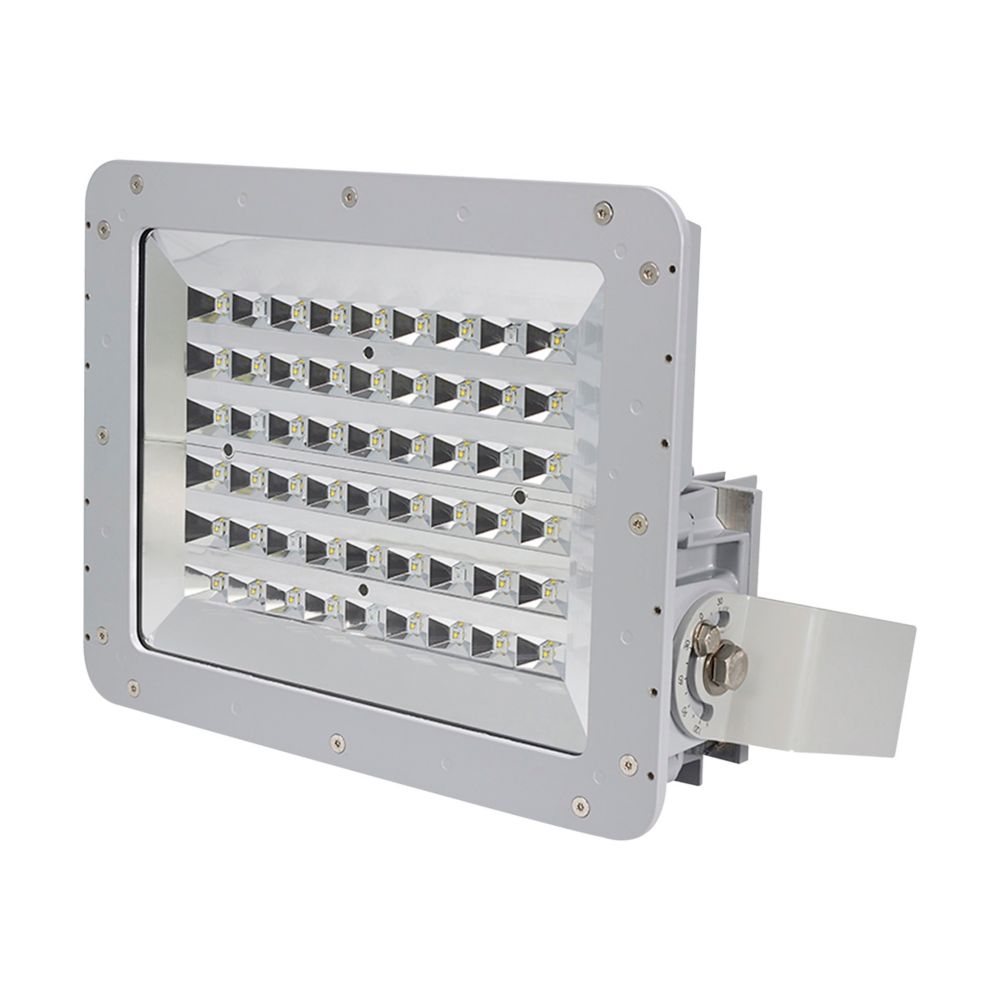

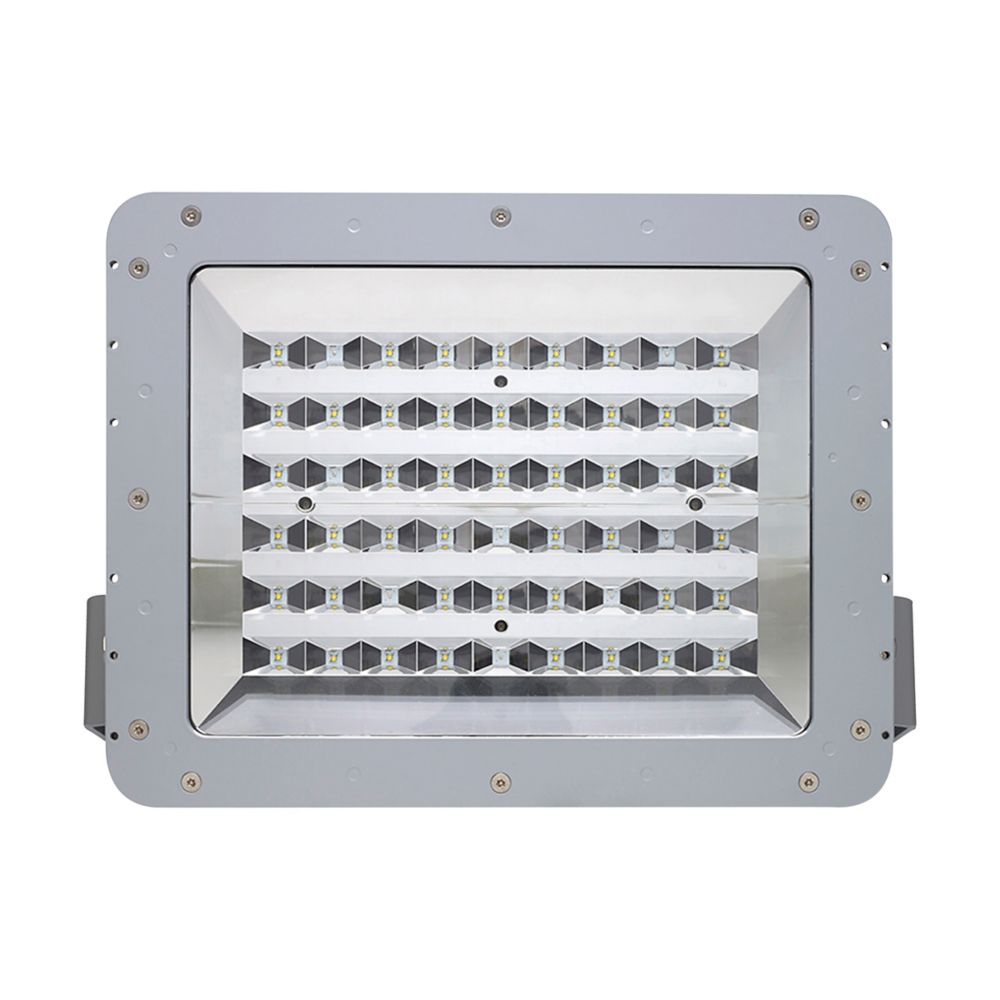

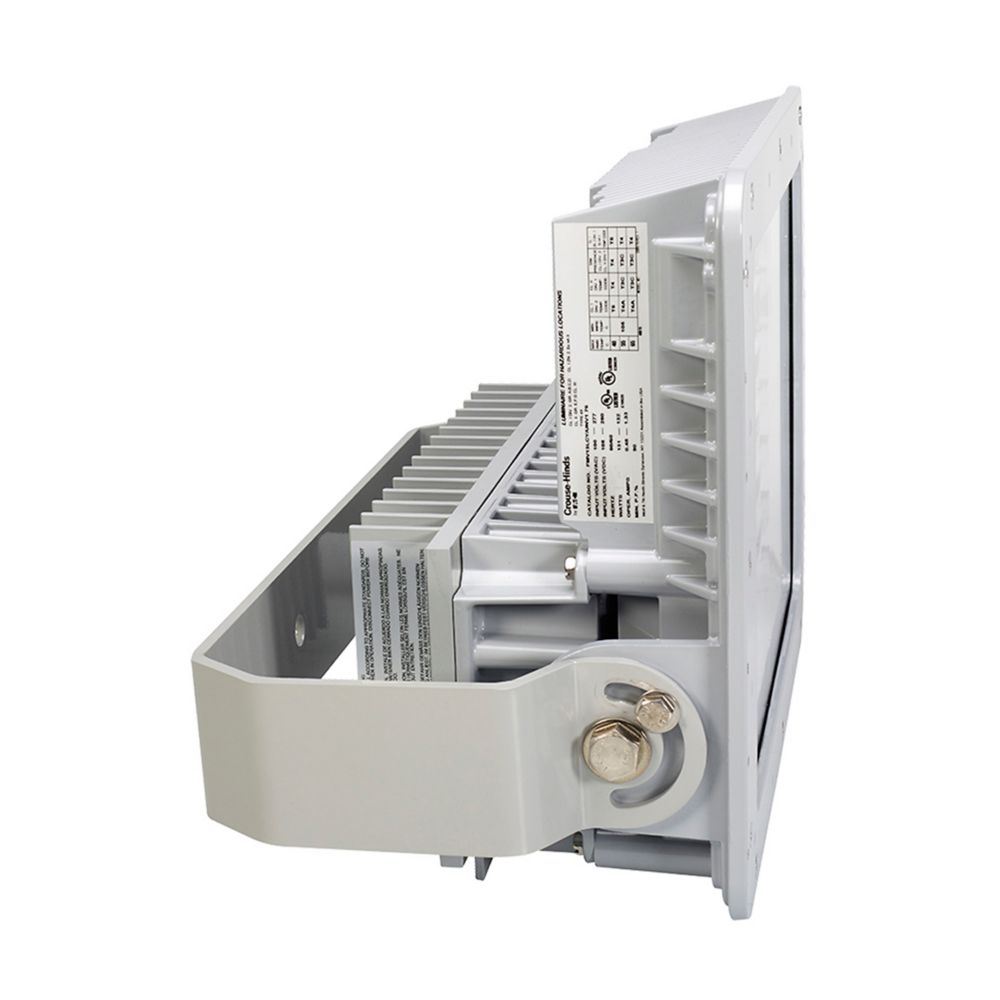

NPFMA20LCY/UNV34 76 is an Eaton Crouse-Hinds Champ Pro series high lumen LED floodlight designed for ordinary locations.This floodlight delivers 20,000 lumens at 177W with 347-480 Vac operation, featuring a dimmable driver, NEMA 4X/IP66 rating, and heat/impact resistant glass lens.Key Specifications
- Part Number: NPFMA20LCY/UNV34 76
- Manufacturer: Eaton
- Lumens: 20000
- Wattage: 177W
- Voltage rating: 347-480 Vac
- Amperage Rating: 0.52 A
- Frequency rating: 50/60 Hz
- Color temperature: Cool white
- NEMA Rating: 4X
- Lumens per watt: 115
- Dimming: Dimmable driver
- Mounting Method: Yoke
Specifications
- Part Number: NPFMA20LCY/UNV34 76
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Floodlights
- Type : IEC model
- Voltage : 347-480 Vac
- Amperage : 0.52 A
- Nema Rating : 4X
- Watts : 177W
- Enclosure : IP66
- Mounting : Yoke
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66
- Lumens : 20000
- Lumens per watt : 115
- Color temperature : Cool white
- Mounting Method : Yoke
- Equivalent luminaire : 600-750W
- Dimming : Dimmable driver
- Power factor : > 0.90
Product Data
- UPC : 662276842144
- Dimensions : 17.85 in x 12 in x 7 in (Length/Depth x Height x Width)
- Weight : 77 lb
