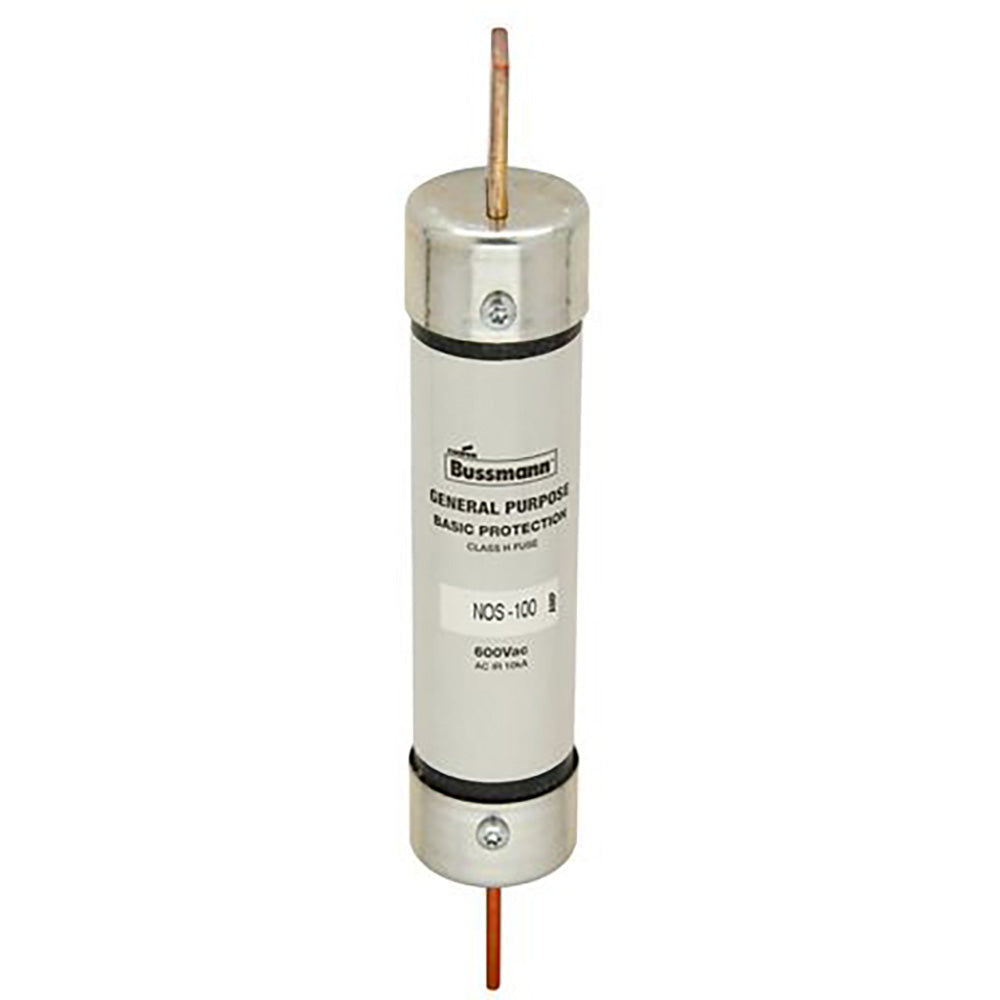

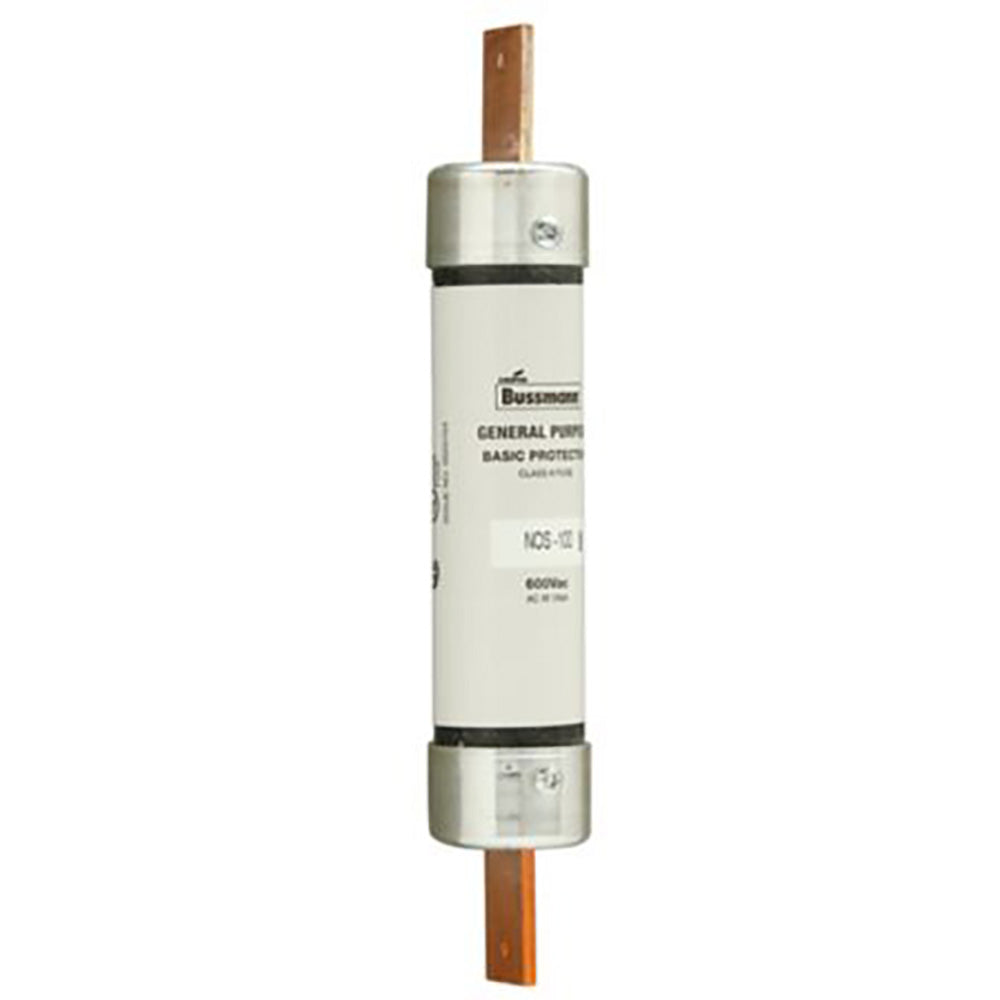

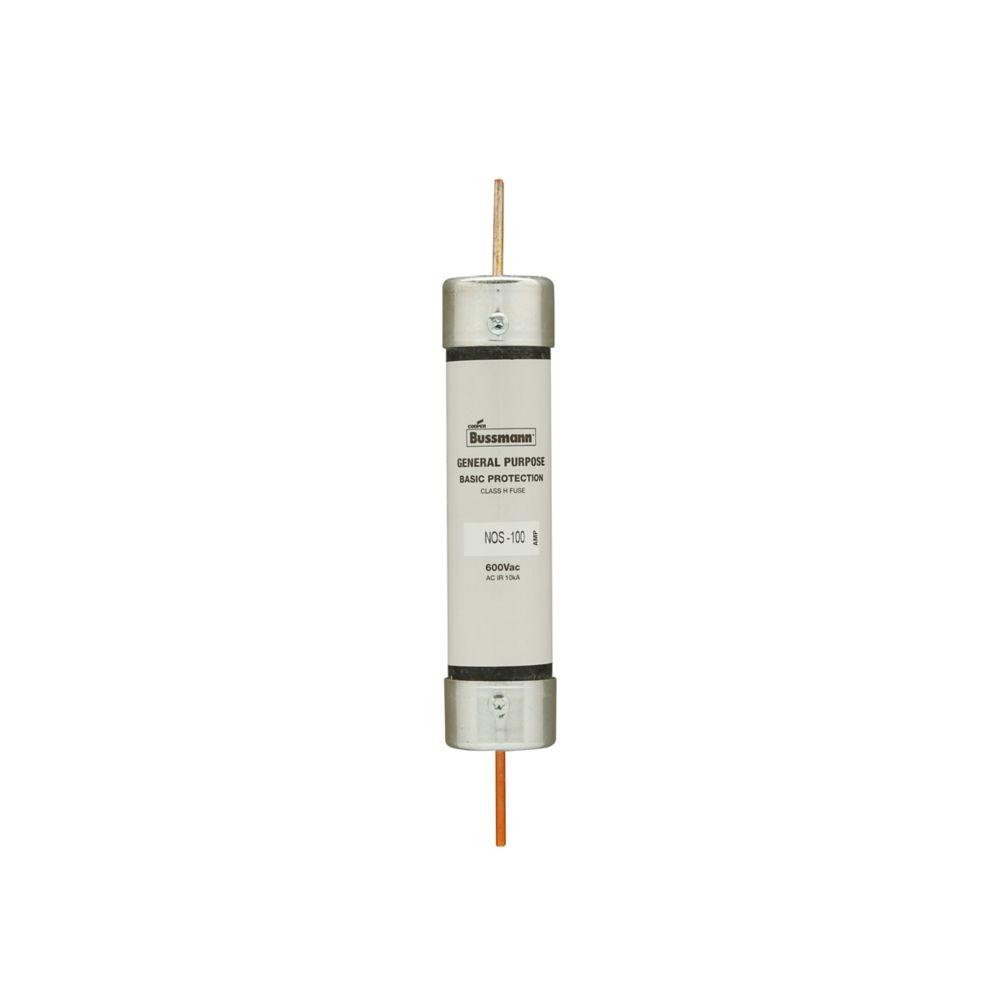

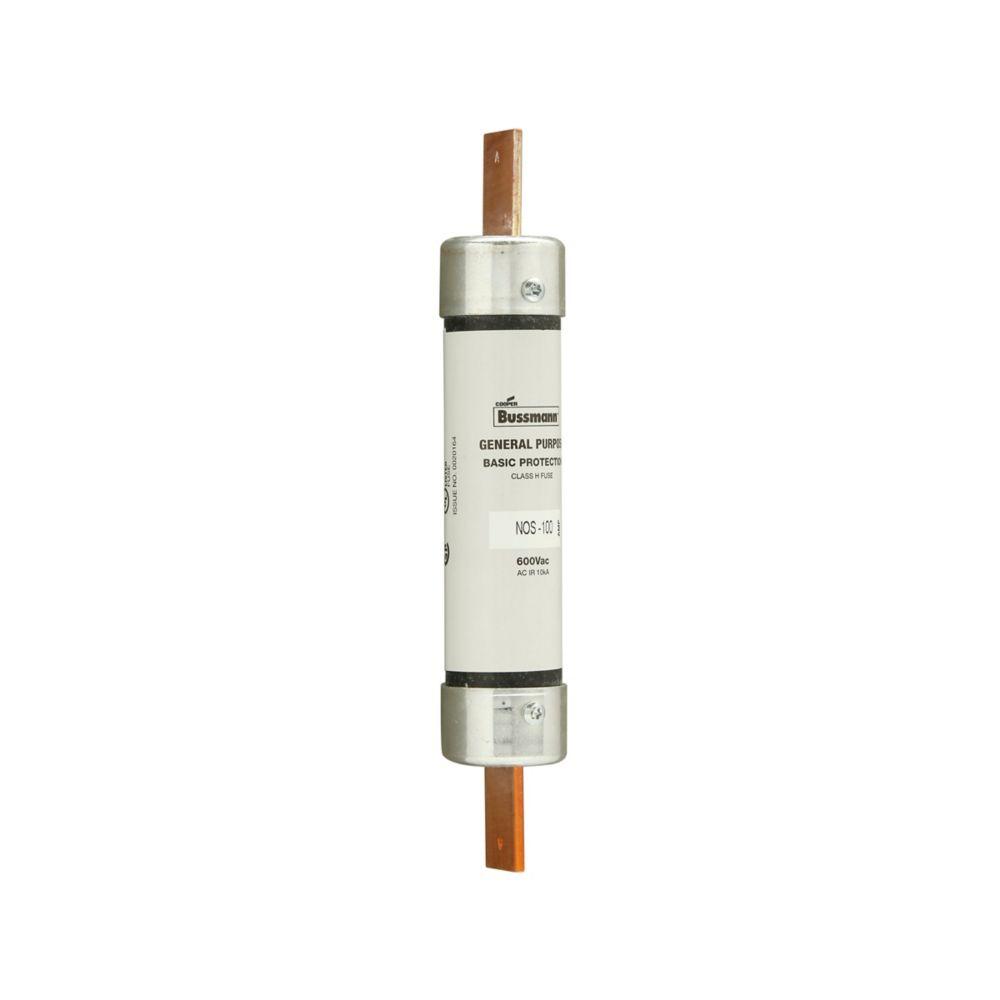

NOS-70 - Eaton Bussmann 70A 600V Class H One-Time General Purpose Fuse

NOS-70

NOS-70 is a 70 amp, 600 volt AC Class H one-time general purpose fuse from Eaton Bussmann designed for reliable circuit protection.This NOS series fuse features a non-current-limiting, one-time operation with a high interrupt rating suitable for general purpose applications. It is rated for 600 VAC and 70 amps with a 10 kA interrupt rating. The fuse complies with UL Class H and CSA certifications, ensuring safety and performance standards. It is a cylindrical fuse with a physical size approximately 1.34 inches by 7.9 inches, designed for mounting in fuse holders or clips.

Key Specifications
• Amperage: 70 Amps
• Voltage Rating: 600 VAC
• Fuse Class: H
• Type: One-Time, Non-Current-Limiting
• Interrupt Rating: 10 kA RMS Symmetrical
• Mounting Type: Fuse Holder/Clip Mount
• Physical Size: 1.34" x 7.9"
• Certifications: UL Listed, CSA Certified, CE Marked
• Series: NOS
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: NOS-70
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : NOS Series
• Type : NOS
• Voltage : 600
• Amperage : 70
• AIC rating : 10kA@600V
• Diameter : 1.34
• Class Rating : H
• Barrels : 1



Product Data

• UPC : 051712310703
• GTIN : 00051712310703
• Country of Origin : Mexico
• Dimensions : 7.9 in x 1.34 in x 1.34 in (Length/Depth x Height x Width)
• Weight : 0.55
• Certification : CE, UL Listed, Guide JDDZ, File E4273, STD 248-6, CSA Certified Class 1421-01, File 53787
