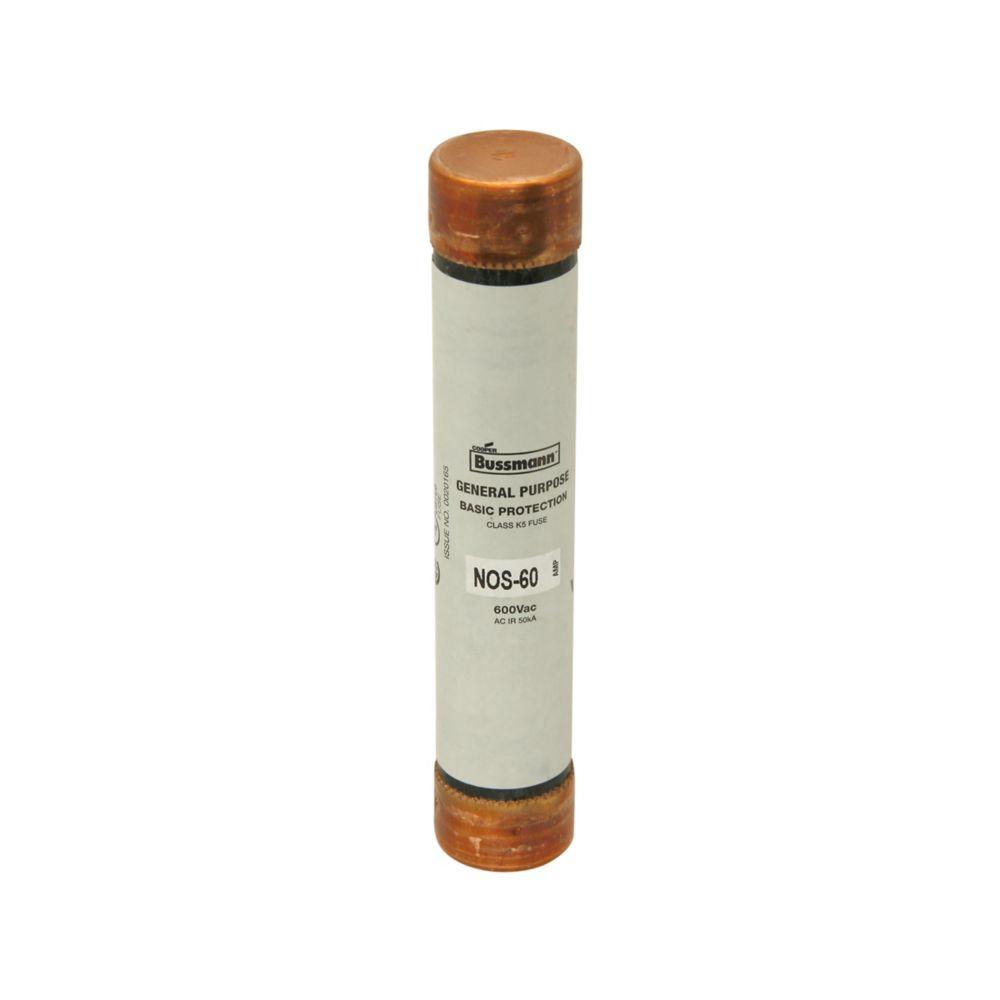

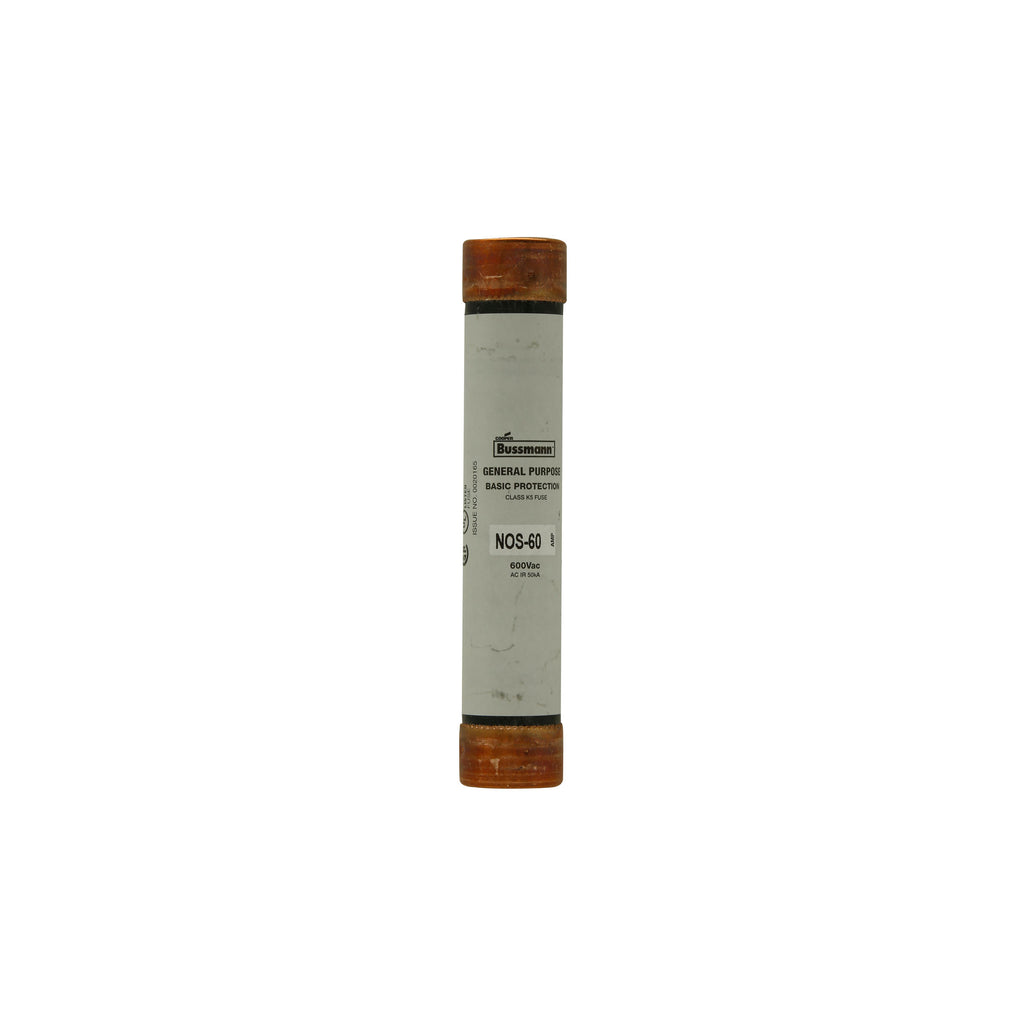

NOS-60 - Eaton Bussmann 60A 600V Class K5 General Purpose Fuse, Non-Current-Limiting, One-Time

NOS-60

NOS-60 is a 60 amp, 600 volt Eaton Bussmann Class K5 general purpose fuse designed for non-current-limiting, one-time protection.This NOS series fuse features a 50 kA interrupting rating at 600 VAC, suitable for industrial and electrical applications requiring reliable overcurrent protection. It is a cylindrical, non-indicating fuse with a medium time-delay characteristic, compliant with UL Class K5 and CSA certifications.

Key Specifications
• Amperage: 60 A
• Voltage Rating: 600 VAC
• Interrupting Rating: 50 kA RMS Symmetrical
• Fuse Type: General Purpose, Non-Current-Limiting
• Series: NOS
• Time-Current Characteristic: Medium/Normal Blow
• Certification: UL Listed Class K5, CSA Certified
• Mounting Type: Fits standard fuse blocks
• Body Style: Cylindrical
• One-Time Use

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NOS-60
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : NOS Series
• Type : NOS
• Voltage : 600
• Amperage : 60
• AIC rating : 50kA@600V
• Diameter : 1.06
• Class Rating : K5
• Barrels : 1

Product Data

• UPC : 051712310604
• GTIN : 00051712310604
• Country of Origin : Mexico
• Dimensions : 5.5 in x 1.6 in x 1.6 in (Length/Depth x Height x Width)
• Weight : 0.25
• Certification : CE, UL Listed, Guide JDDZ, File E4273, STD 248-9, CSA Certified Class 1421-01, File 53787
