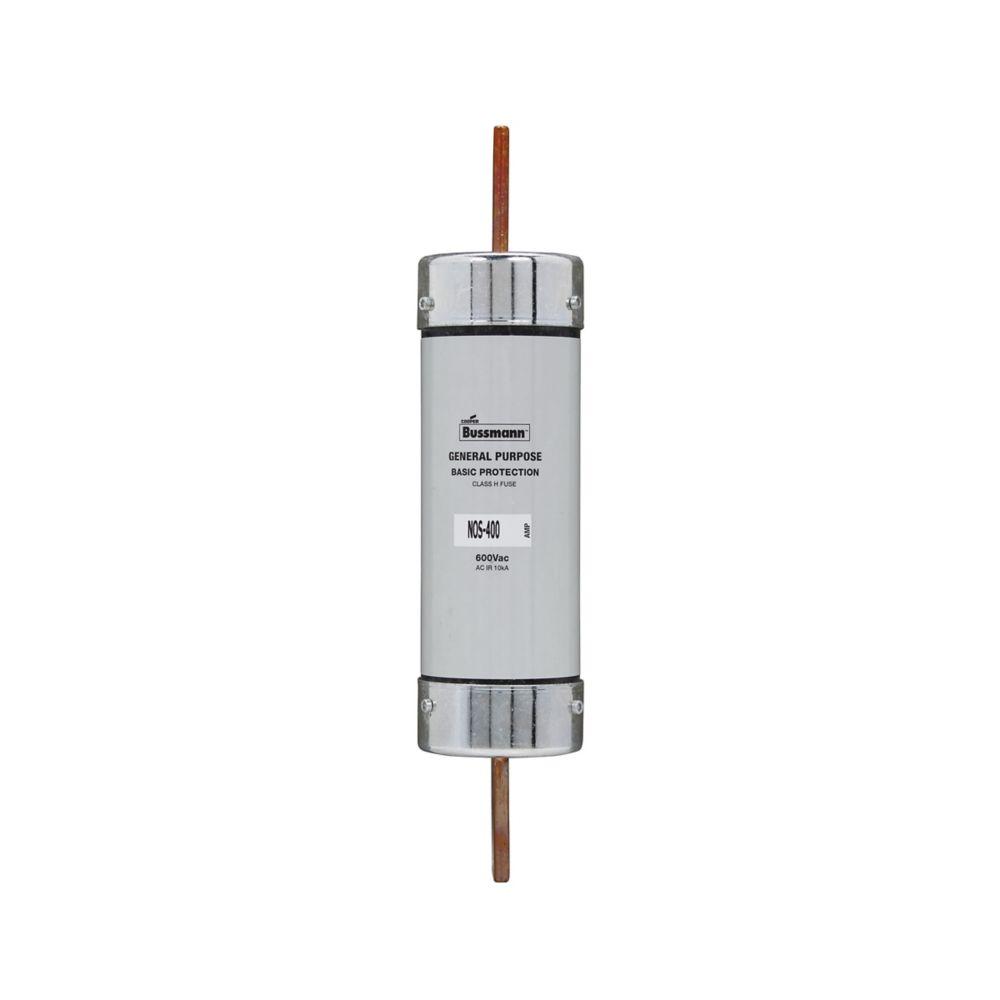

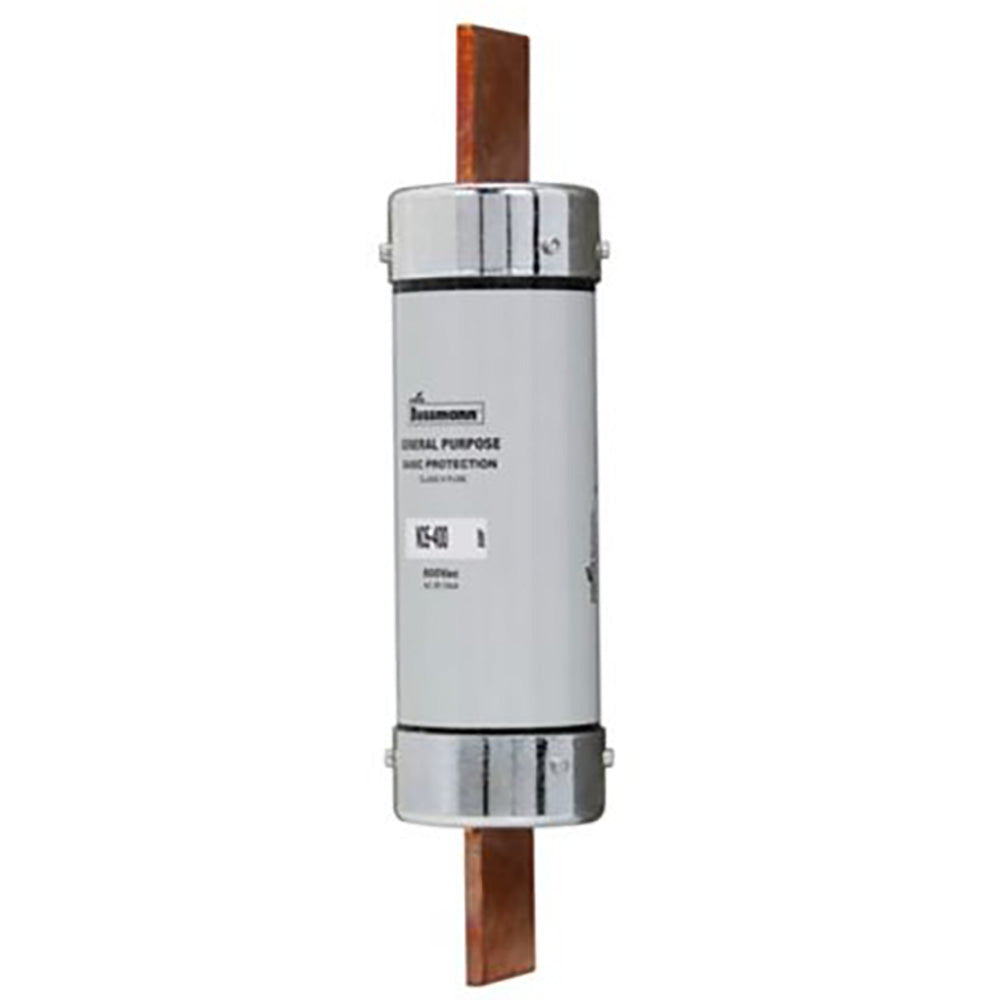

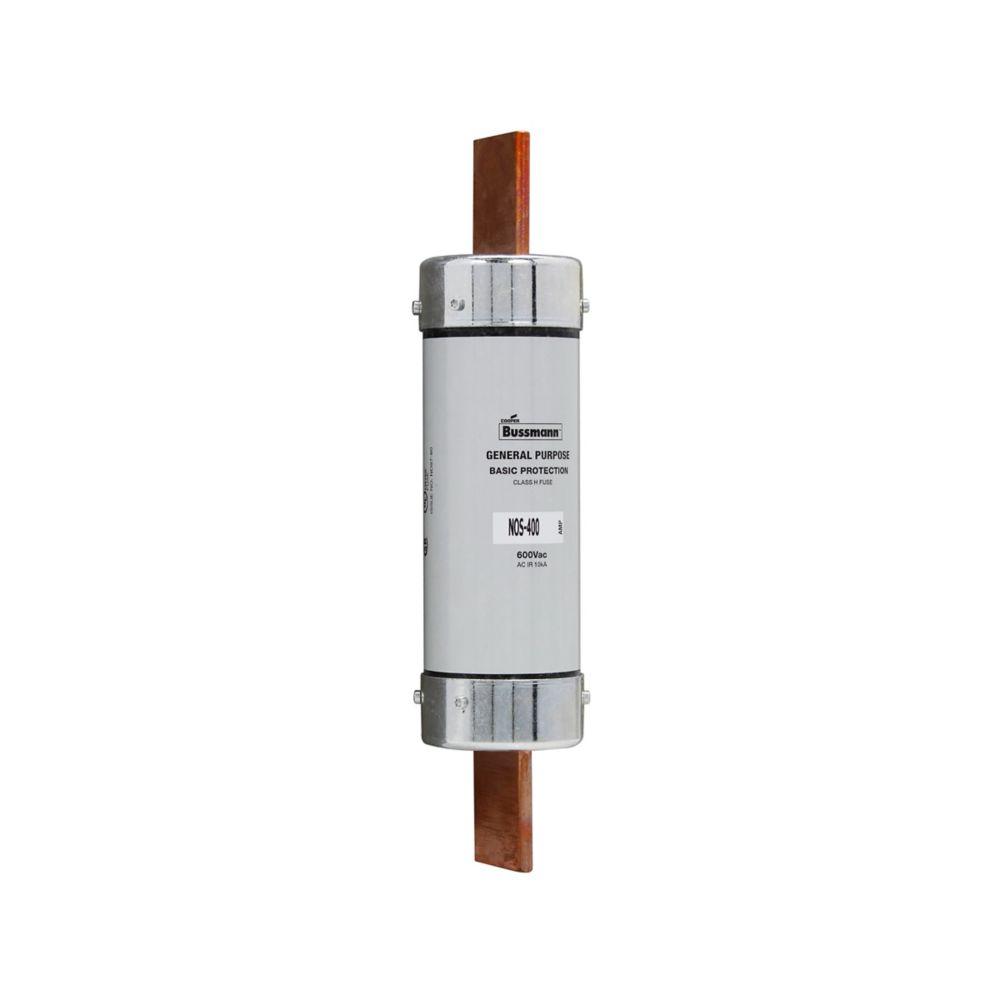

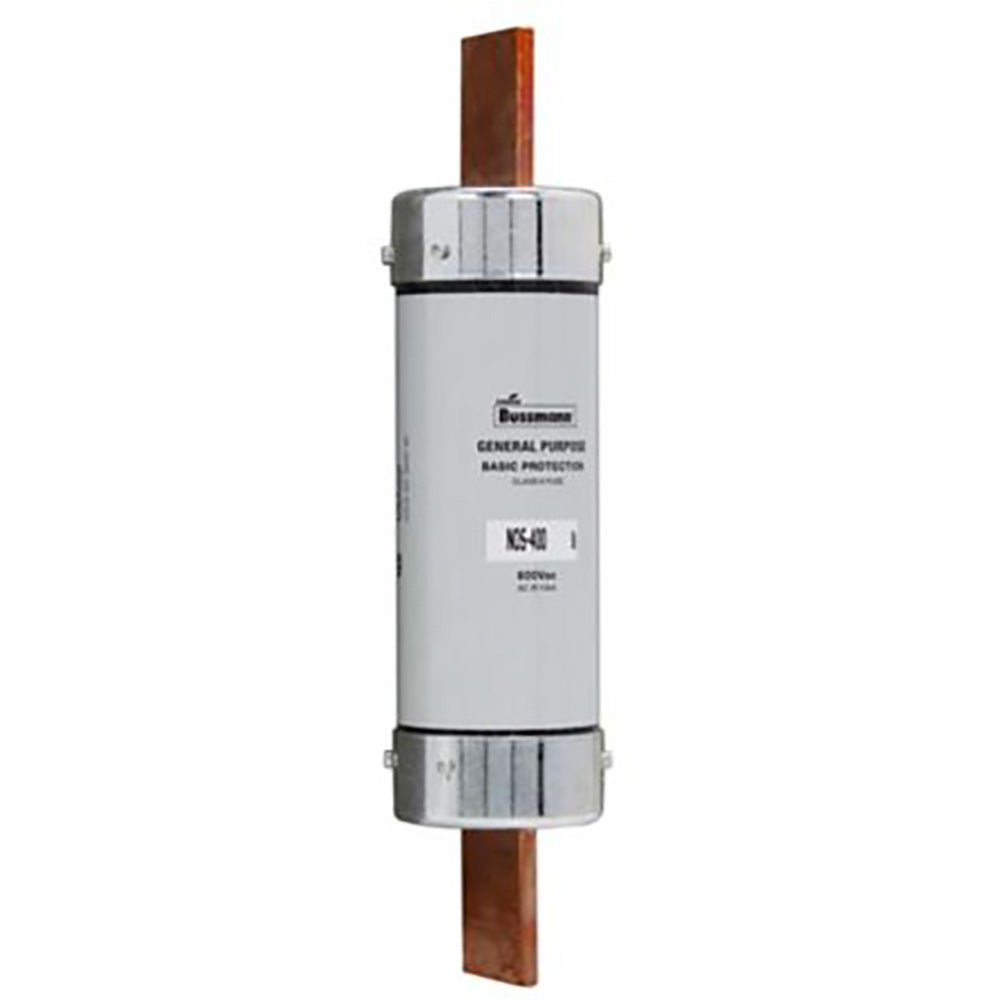

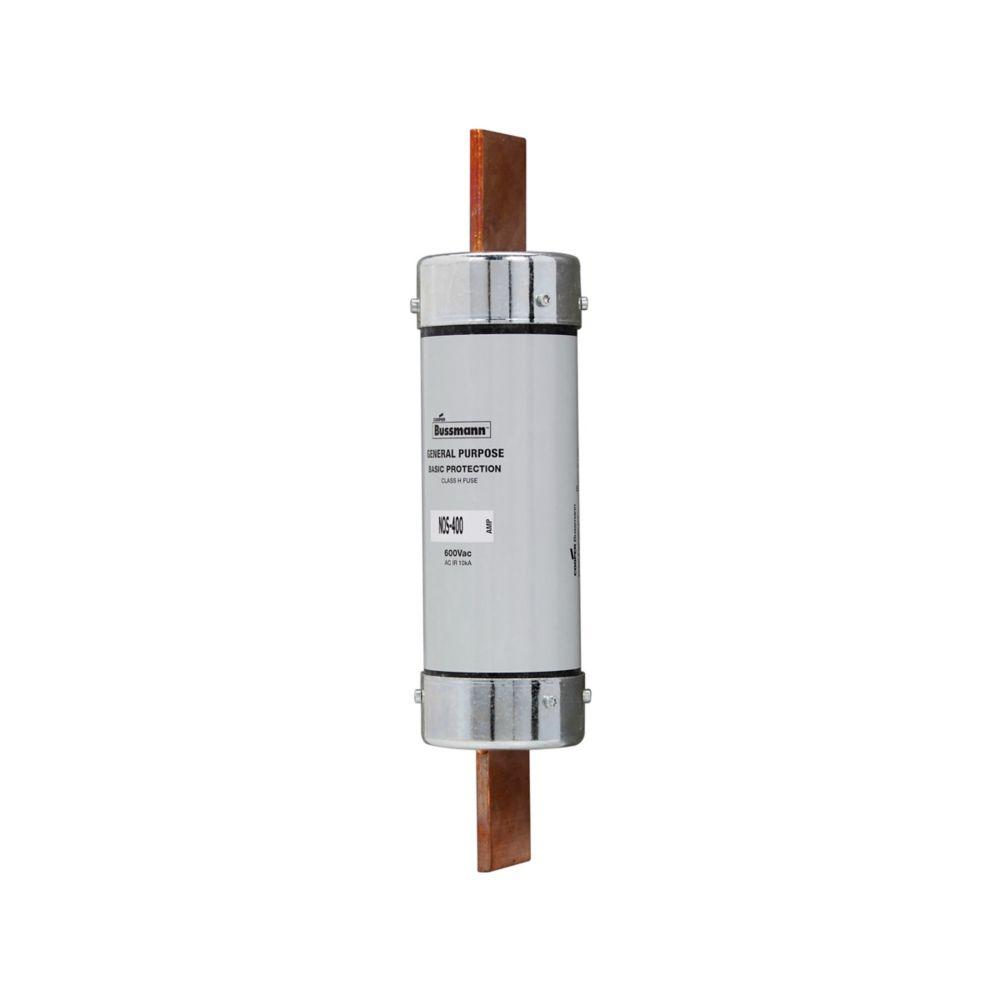

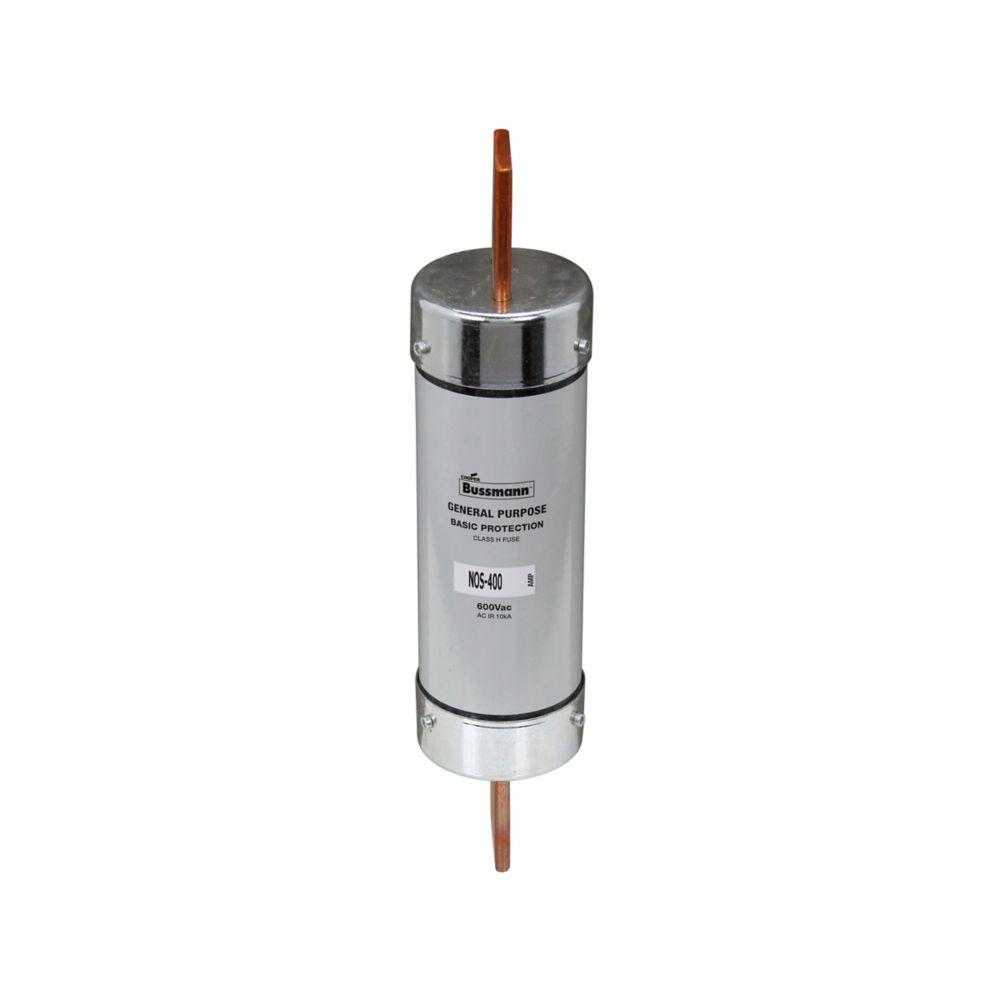

NOS-400 - Eaton Bussmann 400A Class H One-Time Fuse 600V

NOS-400

NOS-400 is an Eaton Bussmann Series Class H one-time general purpose fuse designed for low voltage circuit protection applications. This non-current-limiting fuse provides reliable protection in light duty circuit locations with a slow blow response characteristic and blade end terminations for secure mounting in standard fuse holders. Key Specifications

• Part Number: NOS-400
• Manufacturer: Eaton Bussmann
• Amperage Rating: 400A
• Voltage Rating: 600 VAC
• Fuse Type: Cartridge
• Class: Class H / Class K5
• Response Time: Slow Blow (One-Time)
• Interrupting Rating: 10 kAIC at 600 Vac
• Length: 11.63 Inch
• Termination: Blade End x Blade End
• Current Limiting: Non-current-limiting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NOS-400
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : NOS Series
• Type : NOS
• Voltage : 600
• Amperage : 400
• AIC rating : 10kA@600V
• Diameter : 2.59
• Class Rating : H
• Barrels : 1

Product Data

• UPC : 051712314008
• GTIN : 00051712314008
• Country of Origin : Mexico
• Dimensions : 11.63 in x 2.59 in x 2.59 in (Length/Depth x Height x Width)
• Weight : 2.82
• Certification : CE, UL Listed, Guide JDDZ, File E4273, STD 248-6, CSA Certified Class 1421-01, File 53787
