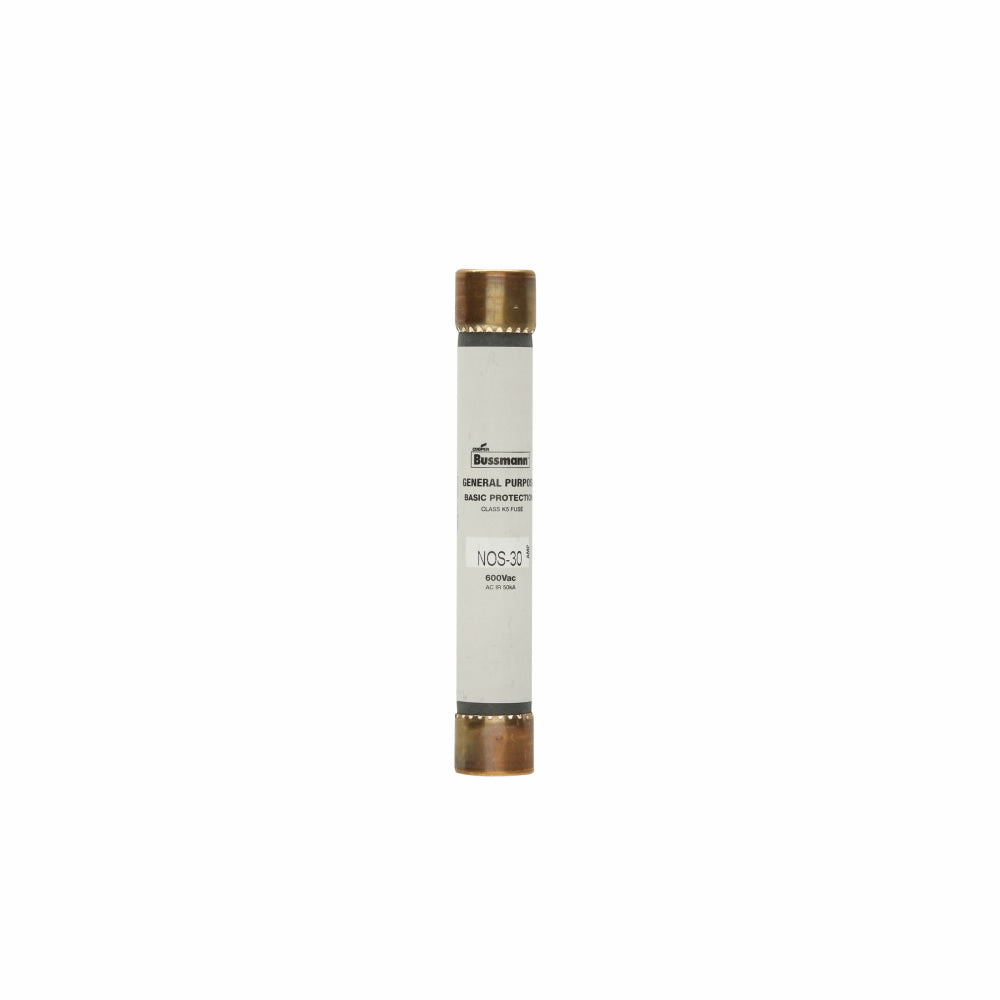

NOS-30 - Eaton Bussmann 30A 600V Class K5/H Non-Current-Limiting Fuse 50kAIC

NOS-30

NOS-30 is a 30 amp, 600 volt Class K5/H non-current-limiting general purpose fuse from Eaton Bussmann.This fuse features a ferrule end x ferrule end connection, 50 kA interrupting rating at 600 VAC, and is designed for light duty circuit protection in industrial and facility safety applications. It is a one-time use fuse with a non-indicating ferrule end construction, measuring 0.81 inches in diameter by 5.00 inches in length. The NOS series is UL listed, CSA certified, and CE marked.

Key Specifications
• Amperage: 30 A
• Voltage Rating: 600 VAC
• Interrupt Rating: 50 kAIC at 600 VAC
• Fuse Class: K5/H
• Connection Type: Ferrule end x ferrule end
• Fuse Type: Non-current-limiting, one-time use
• Size: 0.81 in diameter x 5.00 in length
• Certifications: UL Listed, CSA Certified, CE Marked
• Mounting Style: Holder
• Application: Industrial and facility safety circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NOS-30
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : NOS Series
• Type : NOS
• Voltage : 600
• Amperage : 30
• AIC rating : 50kA@600V
• Diameter : 0.81
• Class Rating : K5
• Barrels : 1

Product Data

• UPC : 051712310307
• GTIN : 00051712310307
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.153
• Certification : CE, UL Listed, Guide JDDZ, File E4273, STD 248-9, CSA Certified Class 1421-01, File 53787
