Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
NON-70

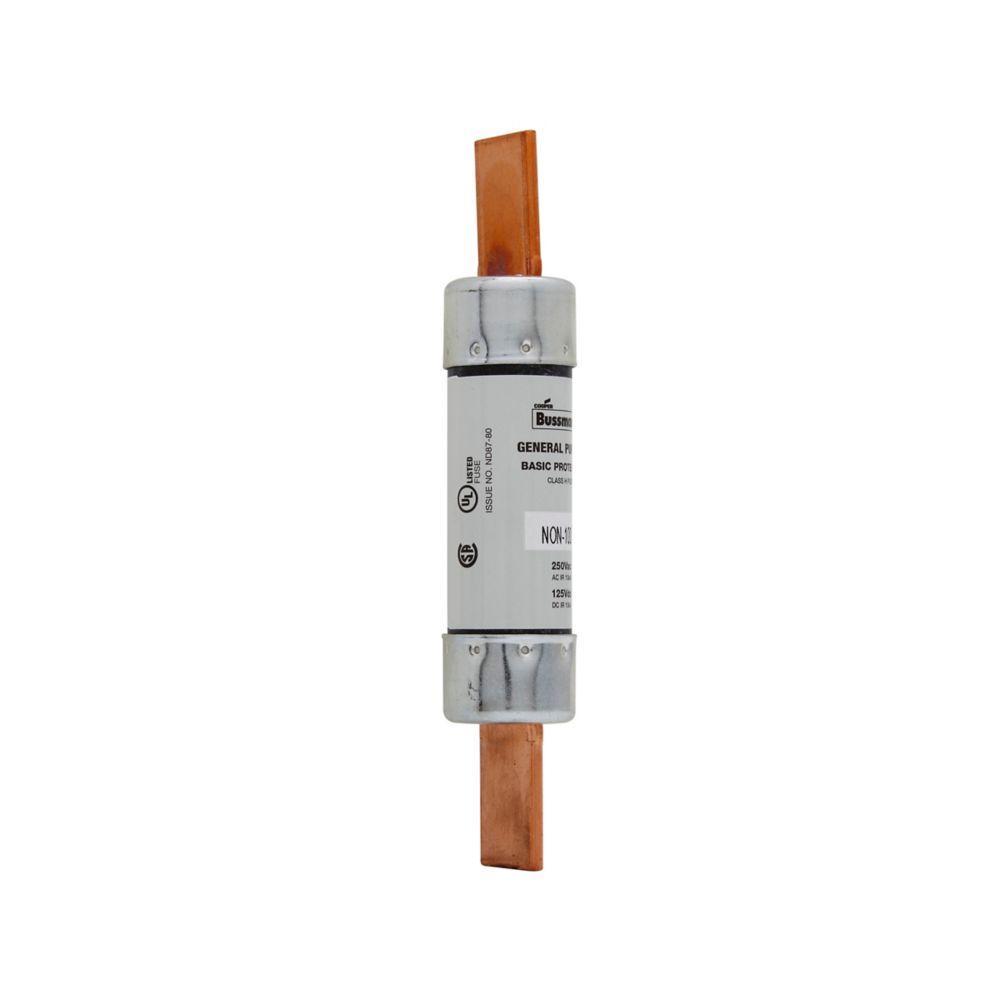

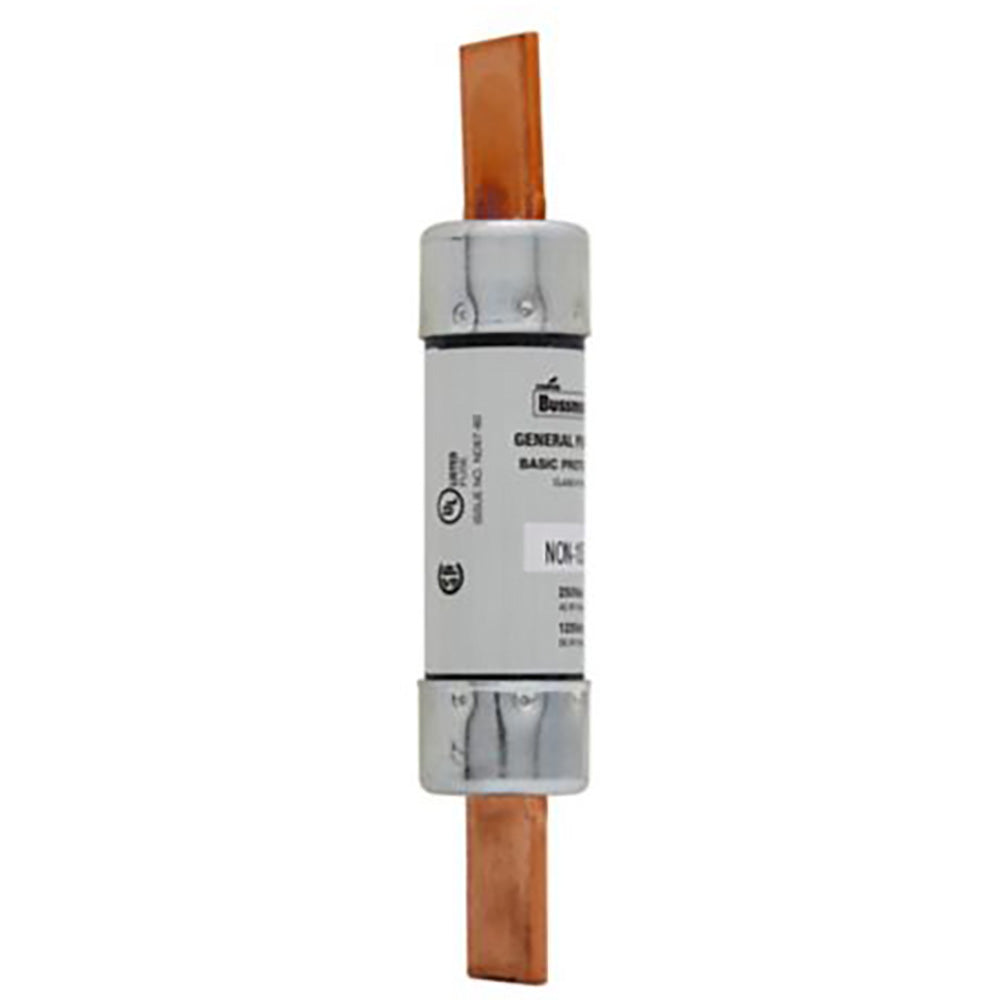

NON-70 is a 70 amp, 250 volt AC, Class H one-time general purpose fuse from Eaton Bussmann series designed for light duty circuit protection.
This non-current-limiting fuse features a blade end x blade end connection, a 50 kA interrupt rating at 125 Vdc and 10 kA at 250 Vac, and is non-indicating. It complies with CE marking and is suitable for supplemental protection in various electrical applications.
- Key Specifications
- Amperage Rating: 70 A
- Voltage Rating: 250 Vac, 125 Vdc
- Interrupt Rating: 50 kAIC at 125 Vdc, 10 kAIC at 250 Vac
- Class: Class H
- Fuse Type: One-Time, Non-Current-Limiting
- Connection Type: Blade end x blade end
- Fuse Indicator: Non-indicating
- Certifications: CE Marked
- Physical Size: 1.06 in x 5.88 in
- Weight: 0.3 lb
- Part Number: NON-70
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : NON Series
- Type : NON
- Voltage : 250
- Amperage : 70
- AIC rating : 10kA@250V
- Diameter : 1.06
- Class Rating : H
- Barrels : 1
- UPC : 051712101653
- GTIN : 00051712101653
- Country of Origin : Mexico
- Dimensions : 5.88 in x 1.06 in x 1.06 in (Length/Depth x Height x Width)
- Weight : 0.3
- Certification : CE, UL Listed, Guide JDDZ, File E4274, STD 248-6, CSA Certified Class 1421-01, File 53787
