Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
NON-600

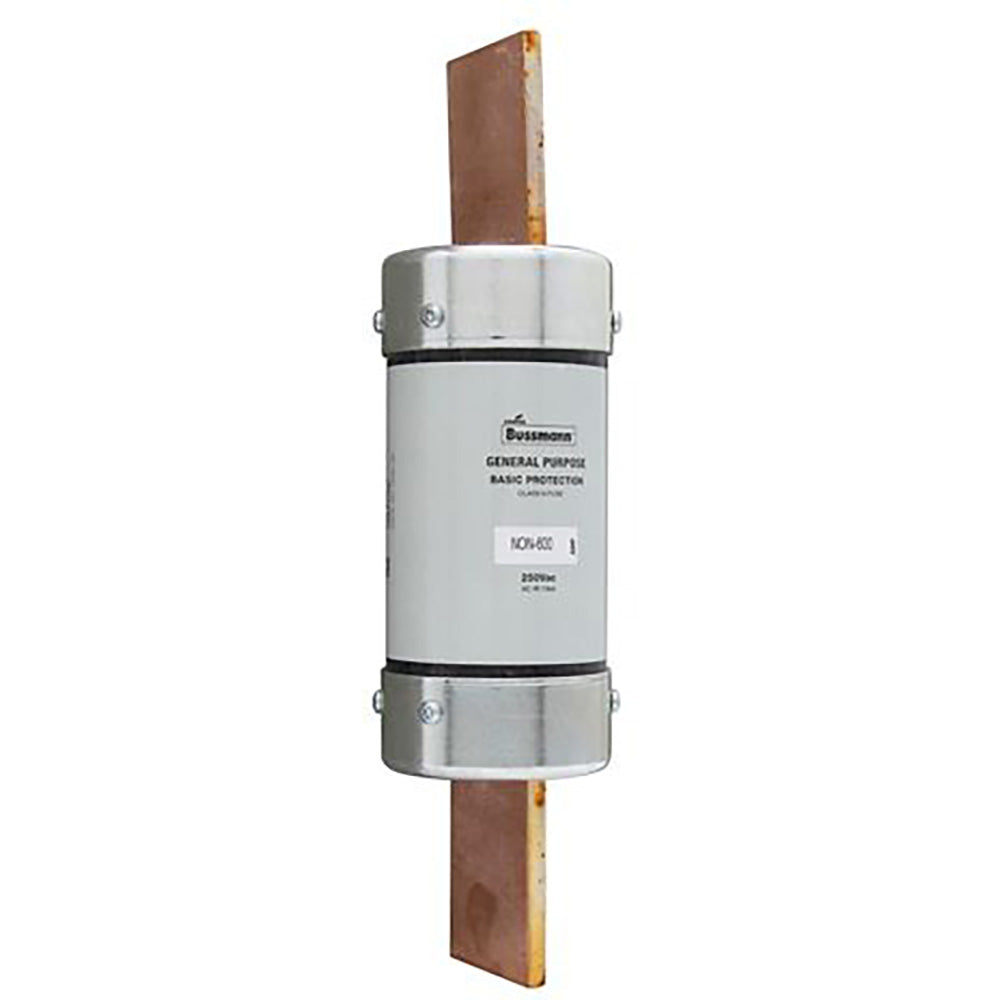

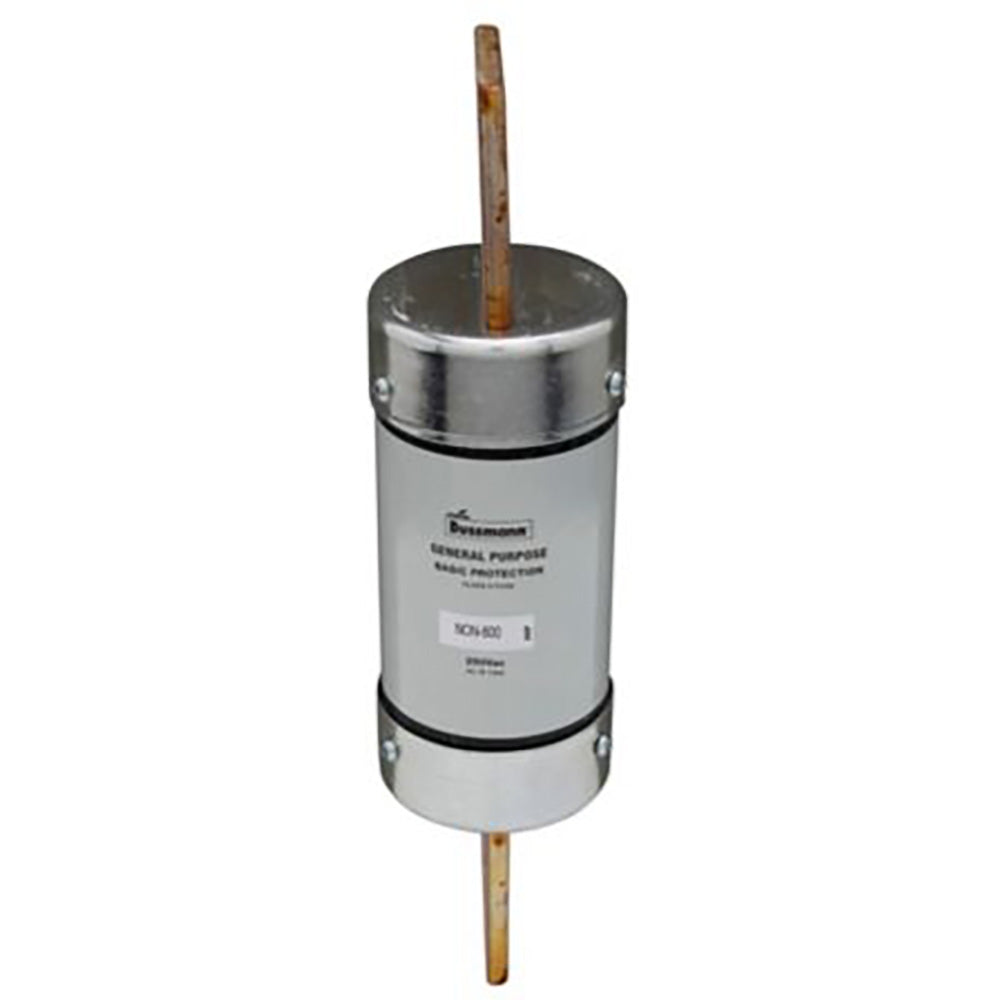

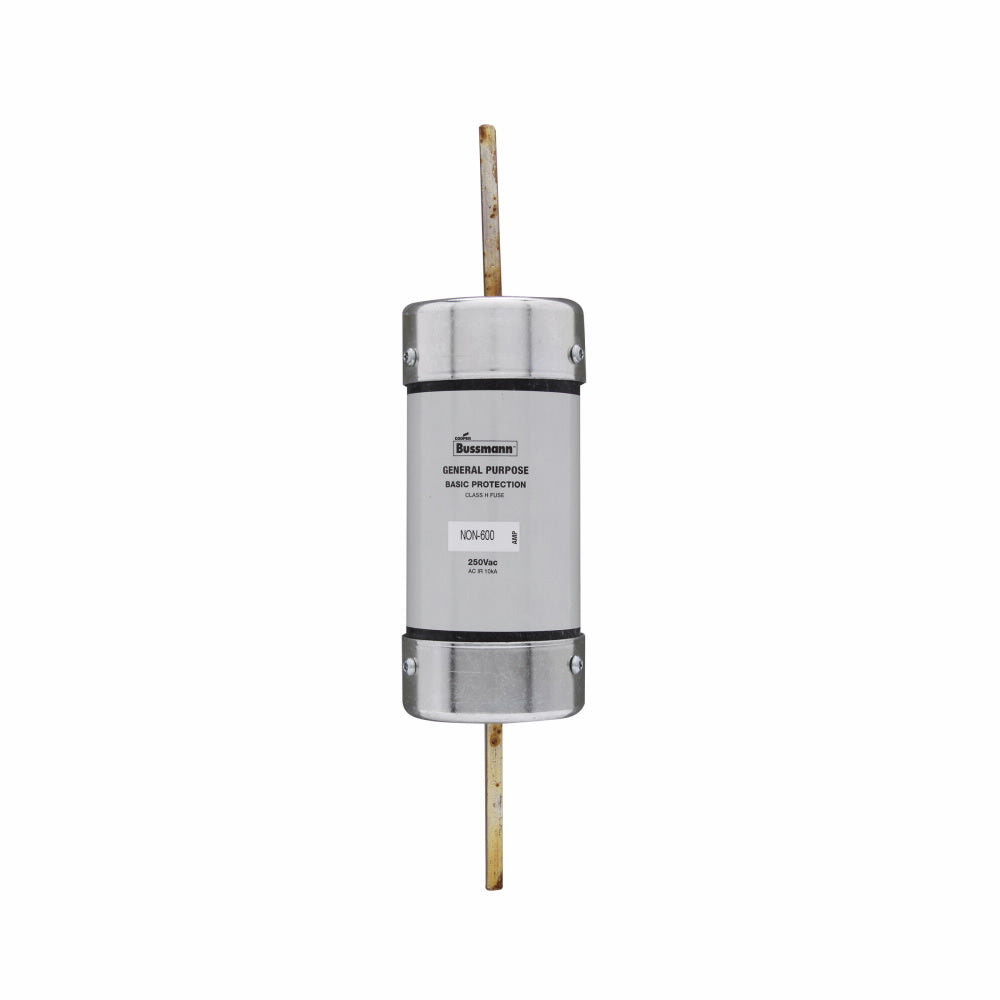

NON-600 is a 600 amp, 600 volt Class H non-indicating supplemental one-time fuse from Eaton designed for light duty circuit protection.
This Eaton NON series fuse is a non-current limiting, blade-end fuse intended for protecting lighting, heating, and other circuits not subject to temporary surges and where available short-circuit currents are relatively low. It is UL Listed as Class H and rated for 600 volts AC with an interrupt rating of 10 kA at 250 VAC. The fuse is suitable for use in modular fuse blocks and provides reliable protection for circuits requiring supplemental fuse protection.
- Key Specifications
- Amperage: 600 A
- Voltage Rating: 600 V AC
- Fuse Class: H
- Type: Non-indicating, one-time supplemental fuse
- Interrupt Rating: 10 kA at 250 VAC
- Mounting: Blade-end
- Non-current limiting
- Application: Light duty circuit protection
- UL Listed
- Part Number: NON-600
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 250
- Amperage : 600
- AIC rating : 10kA@250V
- Diameter : 0.81
- Class Rating : K5
- Barrels : 1
- UPC : 051712306003
- GTIN : 00051712306003
- Country of Origin : Mexico
- Dimensions : 10.38 in x 2.59 in x 2.59 in (Length/Depth x Height x Width)
- Weight : 2.76
- Certification : CE, UL Listed, Guide JDDZ, File E4274, STD 248-6, CSA Certified Class 1421-01, File 53787
