NON-50 - Eaton Bussmann 50A 250Vac/125Vdc Class K5 Non-Current-Limiting Fuse 50kAIC Interrupt Rating

NON-50

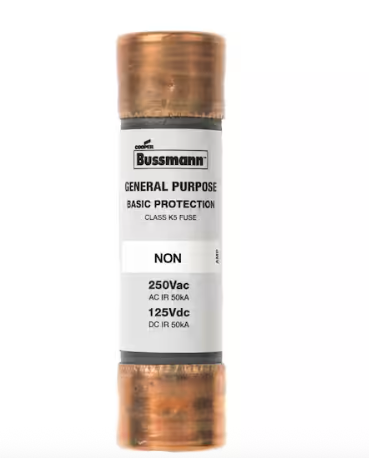

NON-50 is a 50 Amp, 250 Vac/125 Vdc, Class K5 general purpose, non-current-limiting one-time fuse from Eaton Bussmann series.This fuse features a 50,000 Amp interrupting rating at 250 Vac and 125 Vdc, ferrule end connections, and is non-indicating. It is designed for basic circuit protection with a compact size of 0.81 in width and height and 3 in length. The NON-50 is CE marked and suitable for use in a variety of industrial and commercial applications requiring reliable fuse protection.

Key Specifications
• Amperage Rating: 50 A
• Voltage Rating: 250 Vac, 125 Vdc
• Interrupting Rating: 50 kAIC at 250 Vac, 50 kAIC at 125 Vdc
• Fuse Class: Class K5
• Fuse Type: Non-current-limiting, one-time fuse
• Connection Type: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Compliance: CE Marked
• Physical Dimensions: 0.81 in W x 0.81 in H x 3 in L
• Manufacturer: Eaton Bussmann
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: NON-50
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : NON Series
• Type : NON
• Voltage : 250
• Amperage : 50
• AIC rating : 50kA@250V
• Diameter : 0.81
• Class Rating : K5
• Barrels : 1



Product Data

• UPC : 051712101639
• GTIN : 00051712101639
• Country of Origin : Mexico
• Dimensions : 3 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.1
• Certification : CE, UL Listed, Guide JDDZ, File E4274, STD 248-9, CSA Certified Class 1421-01, File 53787
