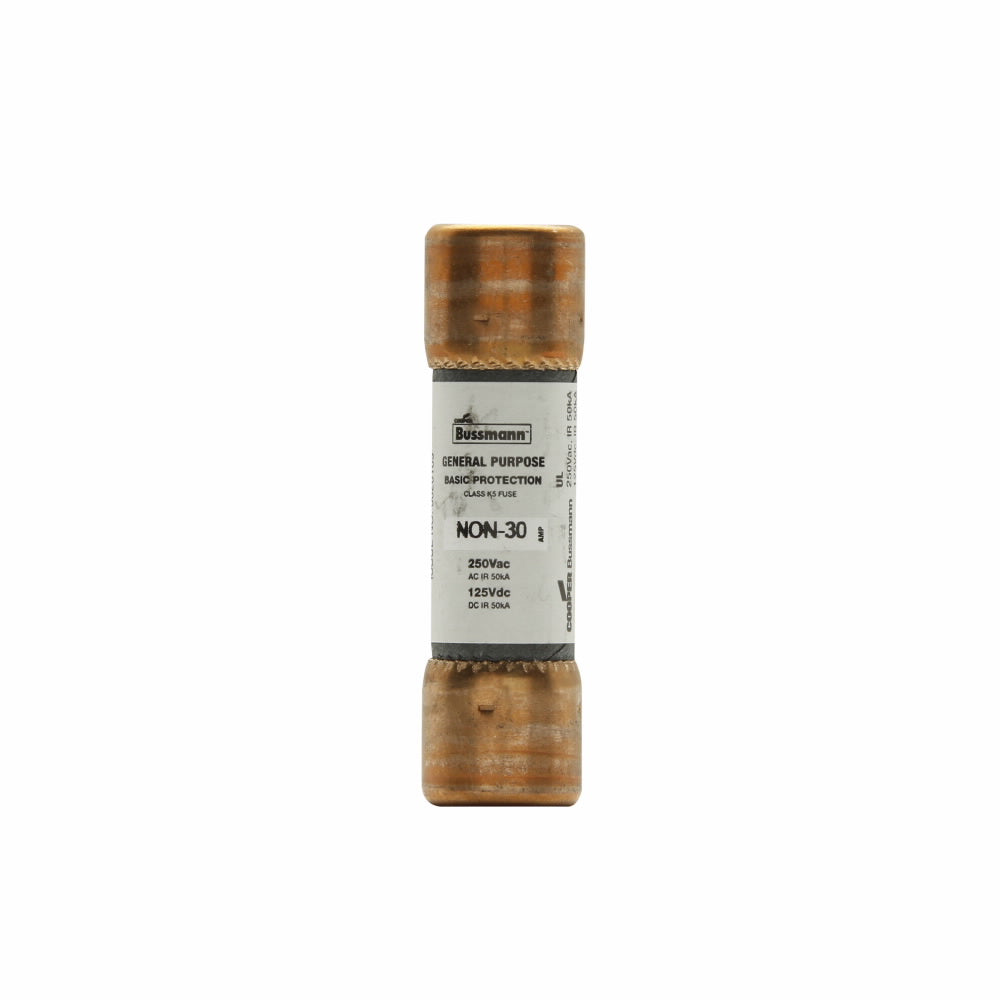

NON-30 - Eaton Bussmann 30A 250Vac 125Vdc Class K5/H General Purpose Fuse

NON-30

NON-30 is a 30 amp, 250 Vac / 125 Vdc general purpose fuse from Eaton Bussmann series designed for one-time use with a Class K5/H rating.This non-current-limiting fuse offers a high interrupting rating of 50 kAIC at both 250 Vac and 125 Vdc. It features ferrule end connections, a compact size of 0.56 in by 2 in, and is CE marked for compliance. The NON-30 fuse is ideal for protecting circuits requiring reliable, general purpose overcurrent protection.

• Amperage Rating: 30 A
• Voltage Rating: 250 Vac, 125 Vdc
• Interrupting Rating: 50 kAIC at 250 Vac and 125 Vdc
• Fuse Class: K5/H
• Non-current-limiting, one-time fuse
• Connection Type: Ferrule end x ferrule end
• Physical Dimensions: 0.56 in diameter x 2 in length
• Fuse Indicator: Non-indicating
• Certifications: CE Marked
• Packaging: Standard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NON-30
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : NON Series
• Type : NON
• Voltage : 250
• Amperage : 30
• AIC rating : 50kA@250V
• Diameter : 0.56
• Class Rating : K5
• Barrels : 1

Product Data

• UPC : 051712101592
• GTIN : 00051712101592
• Country of Origin : Mexico
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.036
• Certification : CE, UL Listed, Guide JDDZ, File E4274, STD 248-9, CSA Certified Class 1421-01, File 53787
