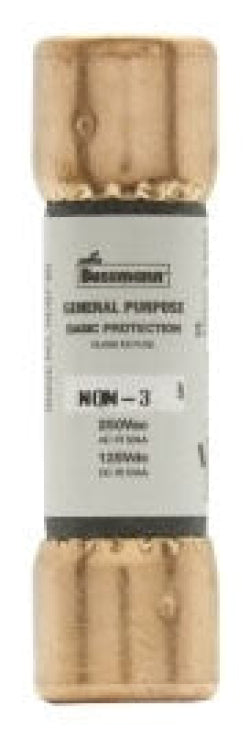

NON-3 - Bussmann, Cooper Bussmann, Eaton 3 Amp 250V AC Class K5/H General Purpose Non-Current-Limiting One-Time Fuse, Ferrule End, UL/CSA Certified

NON-3

NON-3 is a general purpose, non-current-limiting, one-time fuse designed for reliable circuit protection in industrial and electrical applications.

This Eaton Bussmann NON-3 fuse offers medium/normal blow timing and is suitable for a wide range of uses where consistent performance and safety are critical. It features a ferrule end connection for secure mounting and is certified to meet stringent industry standards.

Key Specifications
• Amperage: 3 A
• Voltage: 250 V AC / 125 V DC
• Poles: Not applicable (fuse, not a switch)
• Mounting Type: Ferrule end
• Interrupt Rating: 50,000 AIC RMS @ 250V AC, 50,000 AIC @ 125V DC
• Series/Frame: NON, Class K5 (1–60A), Class H (70–600A)
• Trip Unit: One-time, non-current-limiting, medium/normal blow
• Certifications: UL Listed (Class K5, Std. 248-9), CSA Certified (Class 1421-01), CE
• Physical Size: 2" L x 0.56" D
• Type: General purpose, time-delay (medium blow)
• Application: Industrial, electrical, branch circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NON-3
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : NON Series
• Type : NON
• Voltage : 250
• Amperage : 3
• AIC rating : 50kA@250V
• Diameter : 0.56
• Class Rating : K5
• Barrels : 1

Product Data

• UPC : 051712300032
• GTIN : 00051712300032
• Country of Origin : Mexico
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.03
• Certification : CE, UL Listed, Guide JDDZ, File E4274, STD 248-9, CSA Certified Class 1421-01, File 53787
