Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
NON-225

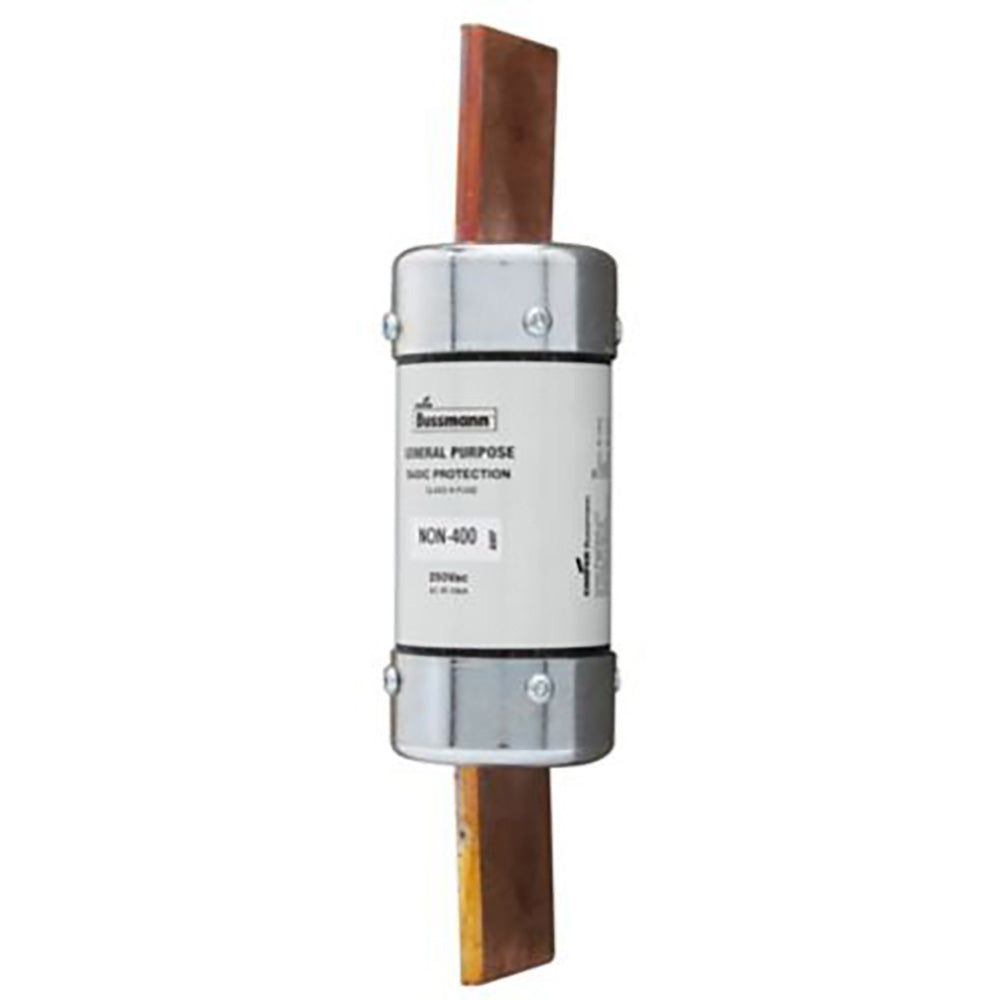

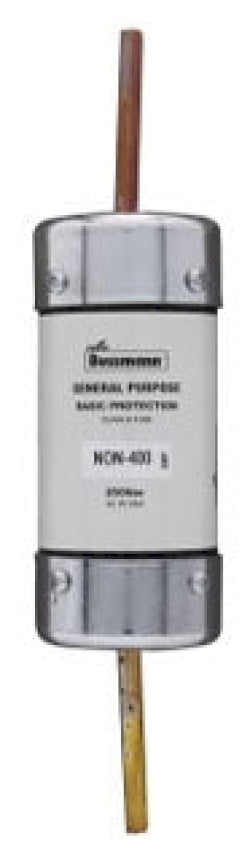

NON-225 is a 225-ampere, 250-volt AC general purpose cartridge fuse from Eaton Bussmann Series designed for reliable circuit protection in industrial and commercial applications.
The NON-225 is a Class H one-time, non-current-limiting fuse with slow-blow response characteristics suitable for general purpose circuits. This cartridge fuse features a 10 kA interrupting rating at 250 Vac and meets UL Listed standards under UL Standard 248-9. The fuse is constructed to provide consistent performance and protection against overcurrent conditions in power distribution systems.
- Current Rating: 225 Amps
- Voltage Rating: 250 Vac
- Fuse Type: Cartridge, One-Time
- Response Time: Slow Blow (Time-Delay)
- Interrupting Rating: 10 kA at 250 Vac
- Classification: Class H
- Agency Listing: UL Listed, Standard 248-9
- Physical Dimensions: 1.84 inches diameter, 9.63 inches length
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: NON-225
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : NON Series
- Type : NON
- Voltage : 250
- Amperage : 225
- AIC rating : 10kA@250V
- Diameter : 2.06
- Class Rating : H
- Barrels : 1
Product Data
- UPC : 051712302258
- GTIN : 00051712302258
- Dimensions : 8.63 in x 2.06 in x 2.06 in (Length/Depth x Height x Width)
- Weight : 1.65
