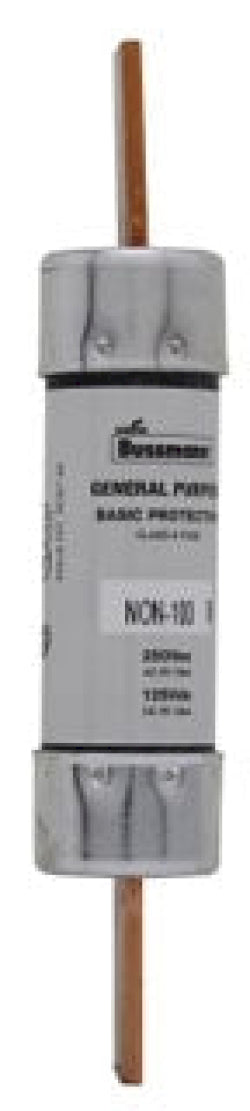

NON-100 - Eaton Bussmann 100 Amp 250 Volt Class H One-Time Fuse, 10kA Interrupt Rating

NON-100

NON-100 is a 100 Amp, 250 Volt AC one-time fuse from Eaton Bussmann designed for general purpose circuit protection.This Class H fuse features a 10,000 A interrupting rating at 250 VAC and 10,000 A at 125 VDC, suitable for industrial and electrical applications. It is a non-current-limiting, medium time-delay fuse with dimensions of 1.06 inches by 5.88 inches. The fuse complies with UL Standard 248-6, CSA Certified, and CE marked for safety and reliability.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 250 VAC, 125 VDC
• Interrupting Rating: 10,000 AIC at 250 VAC, 10,000 AIC at 125 VDC
• Fuse Class: H (Class K5 for 1-60 A range)
• Fuse Type: One-Time, Non-Current-Limiting
• Dimensions: 1.06 in W x 5.88 in L
• Mounting Type: Fuse Holder or Block (1-3 poles available)
• Certifications: UL Listed, CSA Certified, CE Marked
• Timing: Medium / Normal Blow

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NON-100
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : NON Series
• Type : NON
• Voltage : 250
• Amperage : 100
• AIC rating : 10kA@250V
• Diameter : 1.06
• Class Rating : H
• Barrels : 1

Product Data

• UPC : 051712101684
• GTIN : 00051712101684
• Country of Origin : Mexico
• Dimensions : 1.125 in x 5.875 in x 1.125 in (Length/Depth x Height x Width)
• Weight : 0.278
• Certification : CE, UL Listed, Guide JDDZ, File E4274, STD 248-6, CSA Certified Class 1421-01, File 53787
