Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
NLS500

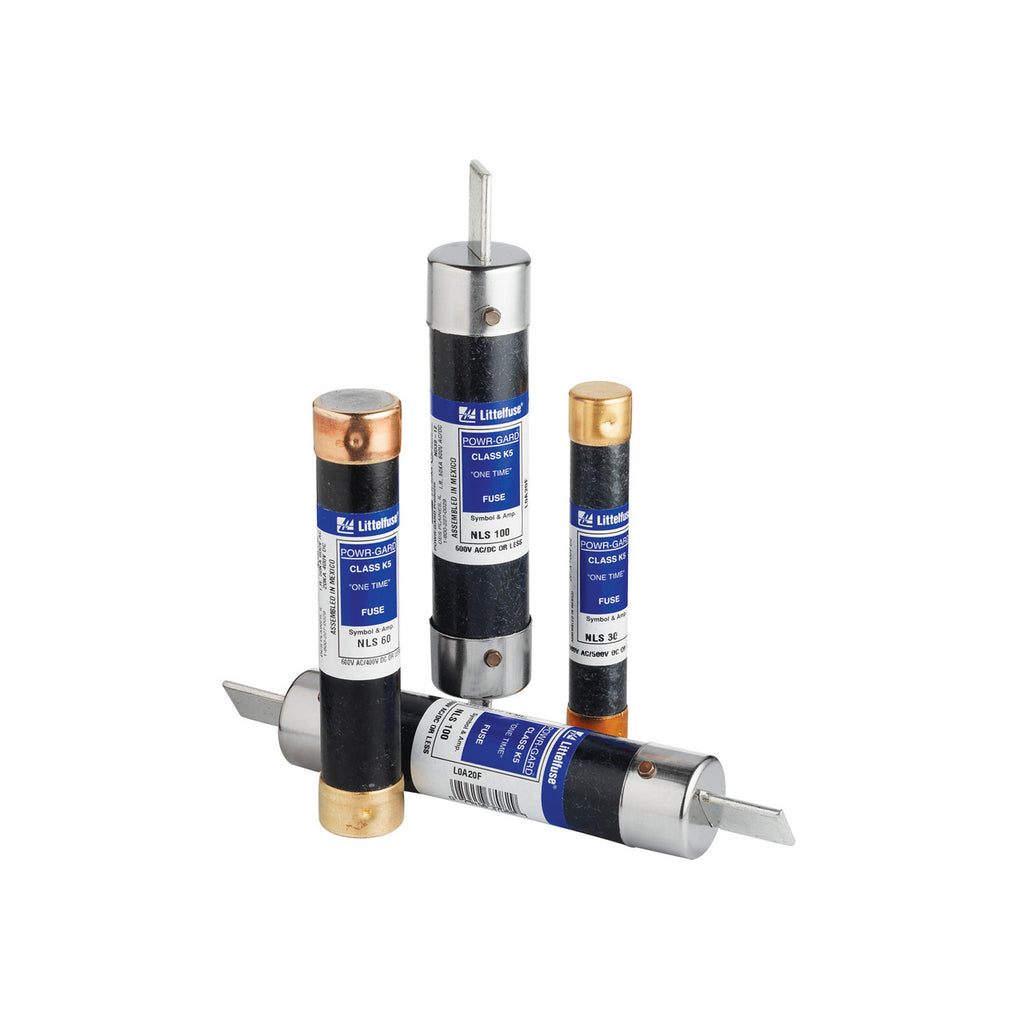

NLS500 is a Littelfuse NLS Series Class K5 fast-acting one-time fuse rated for 600V AC and 500V DC with a 500A current rating. This cartridge-style fuse is designed for use in residential and commercial circuits where reliable overcurrent protection is required. The NLS500 features a blade terminal and requires a compatible fuse holder for installation. It is suitable for applications with minimal motor load and is commonly used in general-purpose circuits. The fuse is fast-acting and provides a high interrupting rating for added safety.
- Part Number: NLS500
- Manufacturer: Littelfuse
- Series: NLS
- Fuse Class: Class K5
- Current Rating: 500A
- Voltage Rating: 600V AC / 500V DC
- Interrupting Rating: 50,000A (Symmetrical, DC)
- Fuse Type: Cartridge
- Mounting Type: Requires Holder
- Terminal Type: Blade
- Acting Type: Fast-Acting
- Certifications: UL 248-9, CSA
Specifications
- Part Number: NLS500
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : NLS
- Type : NLS
- Voltage : 600
- Amperage : 500
- AIC rating : 50kA@600V
- Diameter : 0.81
- Class Rating : H
- Barrels : 1
Product Data
- UPC : 07945837096
- GTIN : 00079458370966
- Weight : 4
