Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
NLS400

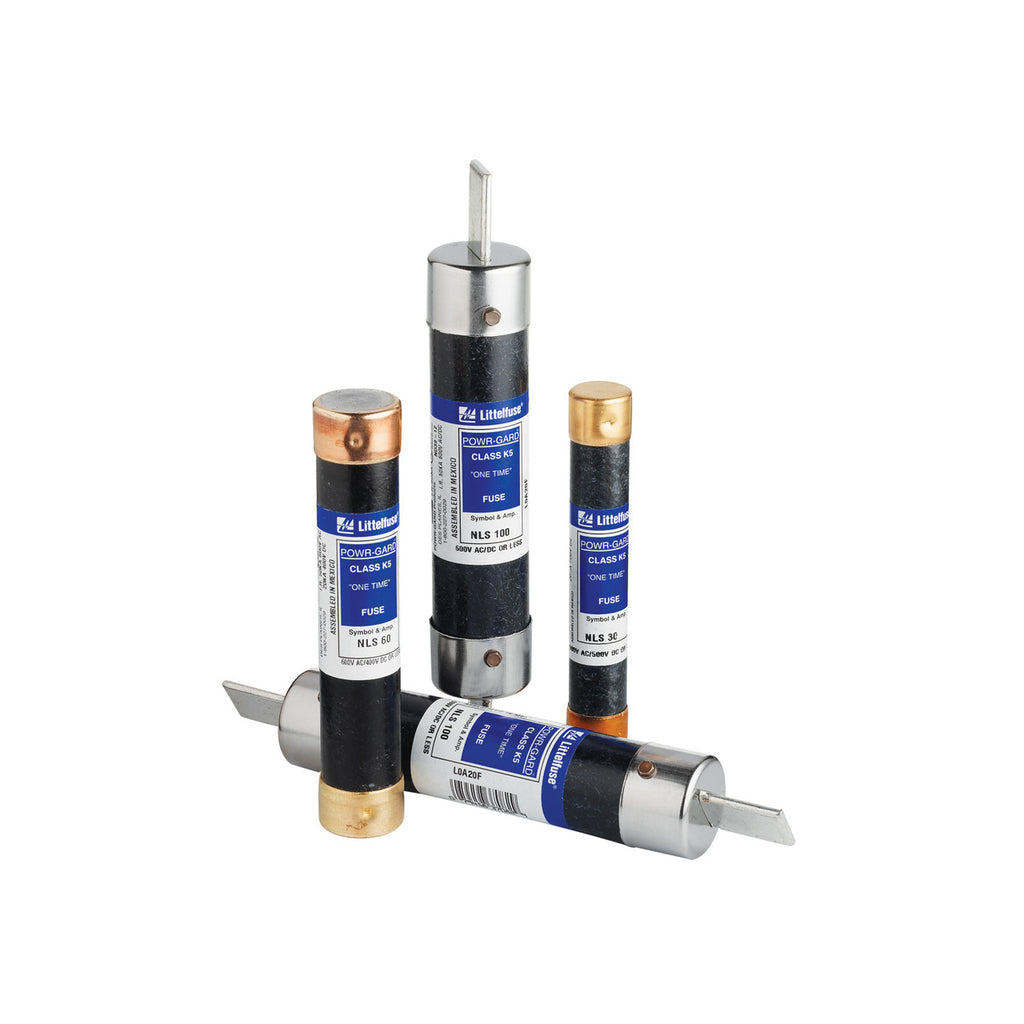

NLS400 is a Littelfuse NLS Low Voltage Fuse designed for general purpose circuit protection with a 600V AC and 500V DC rating, 400A current, and Class K5 type. This fuse features a 1 barrel knife-blade design for reliable performance in industrial and commercial applications. The NLS400 is a cartridge-style, one-time use fuse with a fast blow response and a high interrupt rating, making it suitable for demanding environments. It is approved to UL 248-9, CSA, and CE standards, ensuring compliance with North American and international safety requirements.
- Amperage: 400A
- Voltage Rating: 600V AC, 500V DC
- Interrupt Rating: 50,000A @ 600V AC, 50,000A @ 500V DC
- Mounting Type: Knife-Blade
- Series/Frame: NLS
- Fuse Class: Class K5
- Response Time: One Time Use, Fast Blow
- Certifications: UL 248-9, CSA, CE
- Shape: Cartridge
- Diameter: 2-19/32 inch
- Length: 11-5/8 inch
Specifications
- Part Number: NLS400
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : NLS
- Type : NLS
- Voltage : 600
- Amperage : 400
- AIC rating : 50kA@600V
- Diameter : 0.56
- Class Rating : H
- Barrels : 1
Product Data
- UPC : 07945837093
- GTIN : 00079458370935
- Weight : 3.56
