Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
NLS150

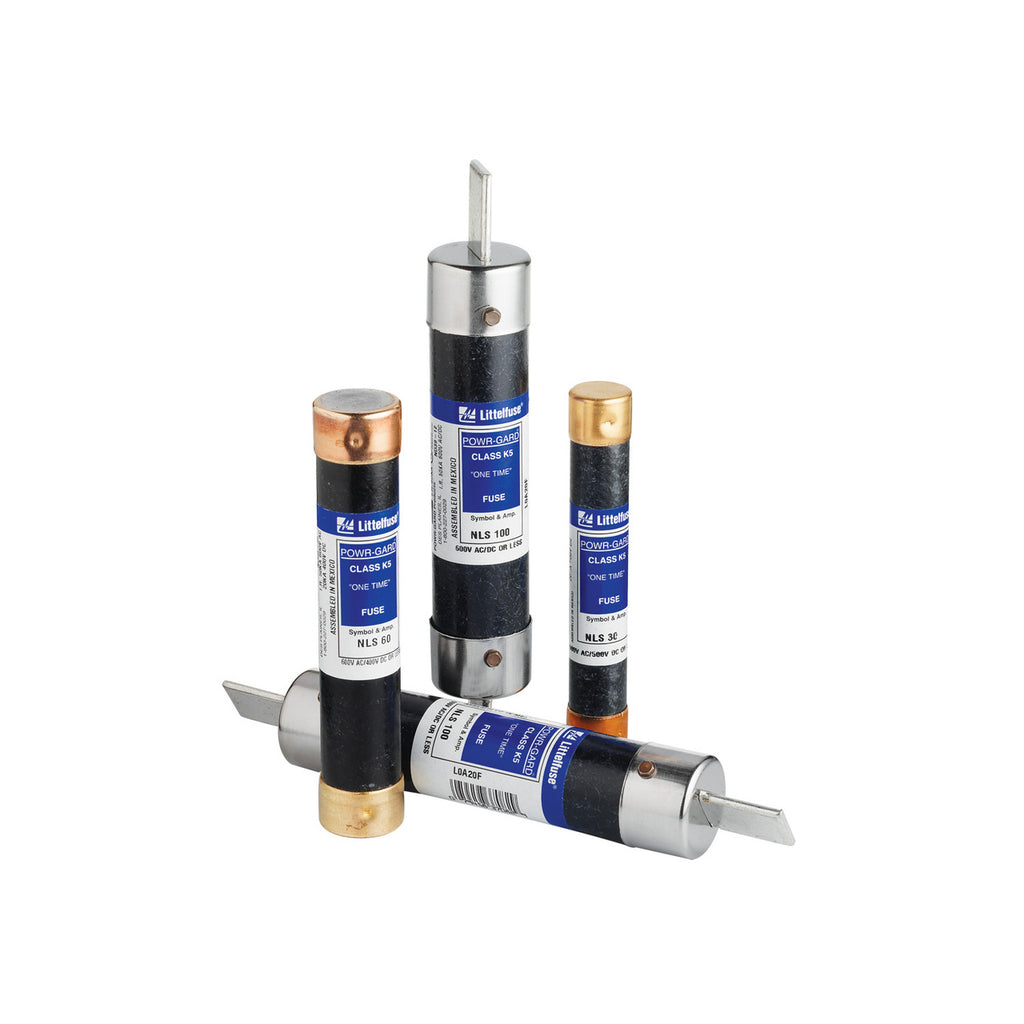

NLS150 is a Littelfuse 150 Amp, 600 Volt Class K5 one-time low voltage fuse designed for general purpose circuits.This Littelfuse NLS150 fuse features a fast-acting, one-time use design with a cartridge body measuring approximately 1.84 inches in diameter and 9 5/8 inches in length. It provides protection for general purpose residential and commercial circuits with little or no motor load, including resistive heating loads. The fuse has a 50,000 AIC interrupt rating at 600 VAC/VDC and is UL Listed and CSA Certified.
- Key Specifications
- Amperage: 150 Amps
- Voltage Rating: 600 Volts AC/DC
- Fuse Class: K5 (UL Class K5)
- Fuse Type: One-Time Use, Fast Blow
- Interrupting Rating: 50,000 AIC @ 600V
- Size: 1.84 inch diameter x 9 5/8 inch length
- Mounting Type: Cartridge Body
- Certifications: UL Listed, CSA Certified
- Application: General purpose circuits with little or no motor load
Specifications
- Part Number: NLS150
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : NLS
- Type : NLS
- Voltage : 600
- Amperage : 150
- AIC rating : 50kA@600V
- Diameter : 1.84
- Class Rating : K5
- Barrels : 1
Product Data
- UPC : 07945837086
- GTIN : 00079458370867
- Weight : 1.39
