NLS090

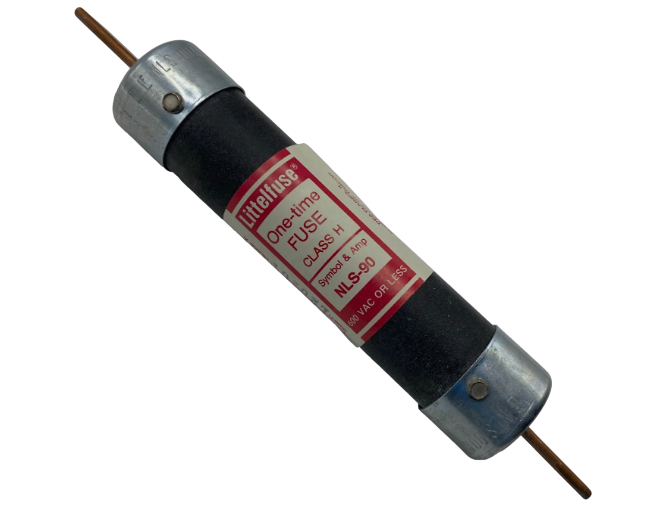

NLS090 is a Littelfuse Class K5 one-time fuse designed for fast-acting protection in general-purpose feeder and branch circuits.This Littelfuse NLS090 fuse features a 90 ampere rating with a voltage rating of 600 VAC/VDC. It is a fast-acting, one-time use fuse with a high interrupting rating of 50,000 amperes symmetrical DC. The fuse has a cartridge shape with a diameter of approximately 1-5/16 inches and a length of 7-7/8 inches. It is UL 248-9, CSA, and CE approved, suitable for reliable circuit protection in industrial and commercial applications.
- Key Specifications
- Amperage: 90 Amps
- Voltage Rating: 600 VAC/VDC
- Fuse Class: K5
- Fuse Type: One-Time Use, Fast Acting
- Interrupting Rating: 50,000 Amperes Symmetrical DC
- Dimensions: 7-7/8 inch length, 1-5/16 inch diameter
- Mounting Type: Cartridge Fuse
- Certifications: UL 248-9, CSA, CE
- Shape: Cartridge
- Part Number: NLS090
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : NLS
- Voltage : 600
- Amperage : 90
- AIC rating : 50kA@600V
- Diameter : 1.31
- Class Rating : K5
- Barrels : 1
- UPC : 079458370812
- GTIN : 00079458370812
- Weight : 5.19
