Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
NLS010

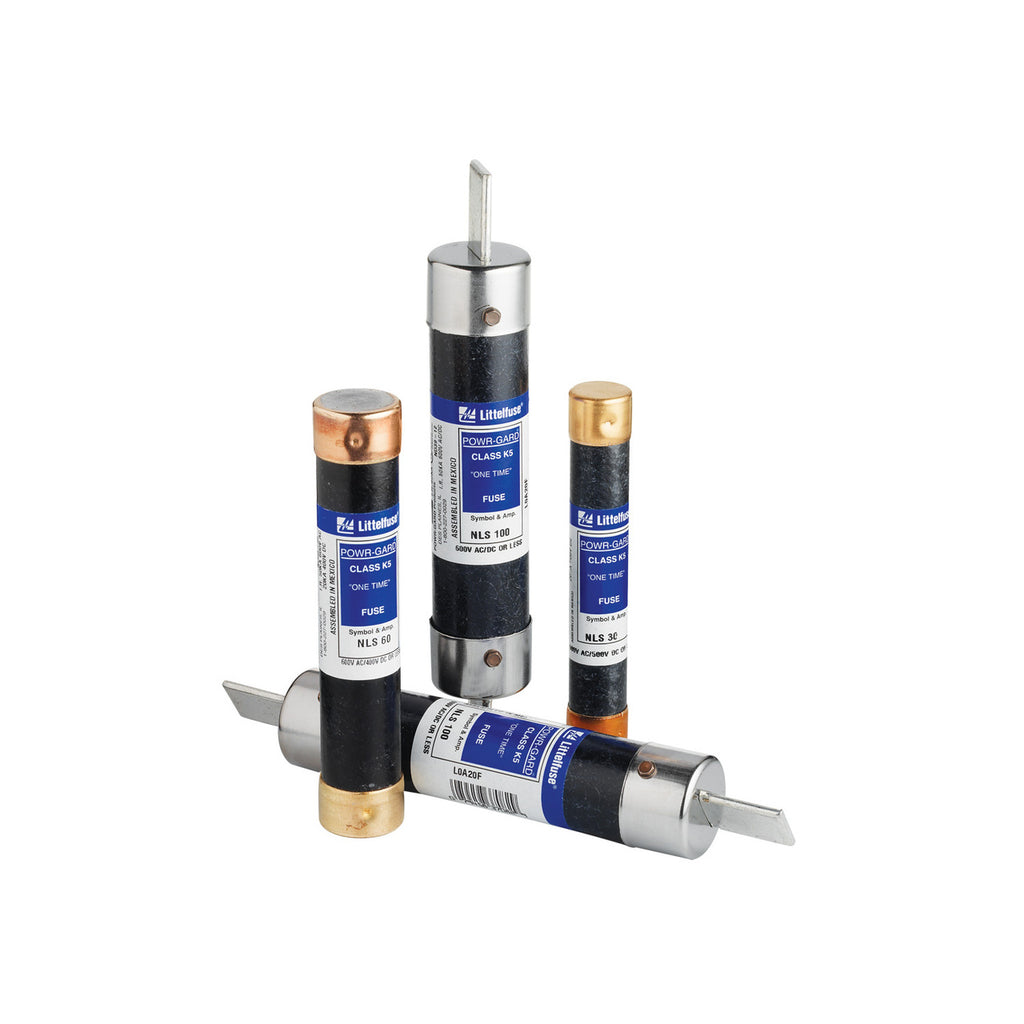

NLS010 is a Littelfuse Class K5 fast blow cartridge fuse rated for 600 VAC/500 VDC with 10 ampere protection for general purpose residential and commercial circuits. This one-time use fuse features a 5-inch length and 13/16-inch diameter cartridge design, delivering reliable overcurrent protection with minimal nuisance trips. The NLS010 is engineered for circuits with little or no motor load and meets stringent safety standards for dependable performance in power distribution applications. Key Specifications
- Amperage Rating: 10 A
- Voltage Rating: 600 VAC / 500 VDC
- Fuse Class: Class K5
- Response Type: Fast Blow
- Interrupt Rating: 50 kA at 600V (symmetrical)
- Length: 5 inches
- Diameter: 13/16 inch
- Mounting Type: Cartridge
- Certifications: UL 248-9, CSA, CE
- Application: General purpose circuits
Specifications
- Part Number: NLS010
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : NLS
- Type : NLS
- Voltage : 600
- Amperage : 10
- AIC rating : 50kA@600V
- Diameter : 0.81
- Class Rating : K5
- Barrels : 1
Product Data
- UPC : 07945837065
- GTIN : 00079458370652
- Weight : 5.19
