Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
NLN150

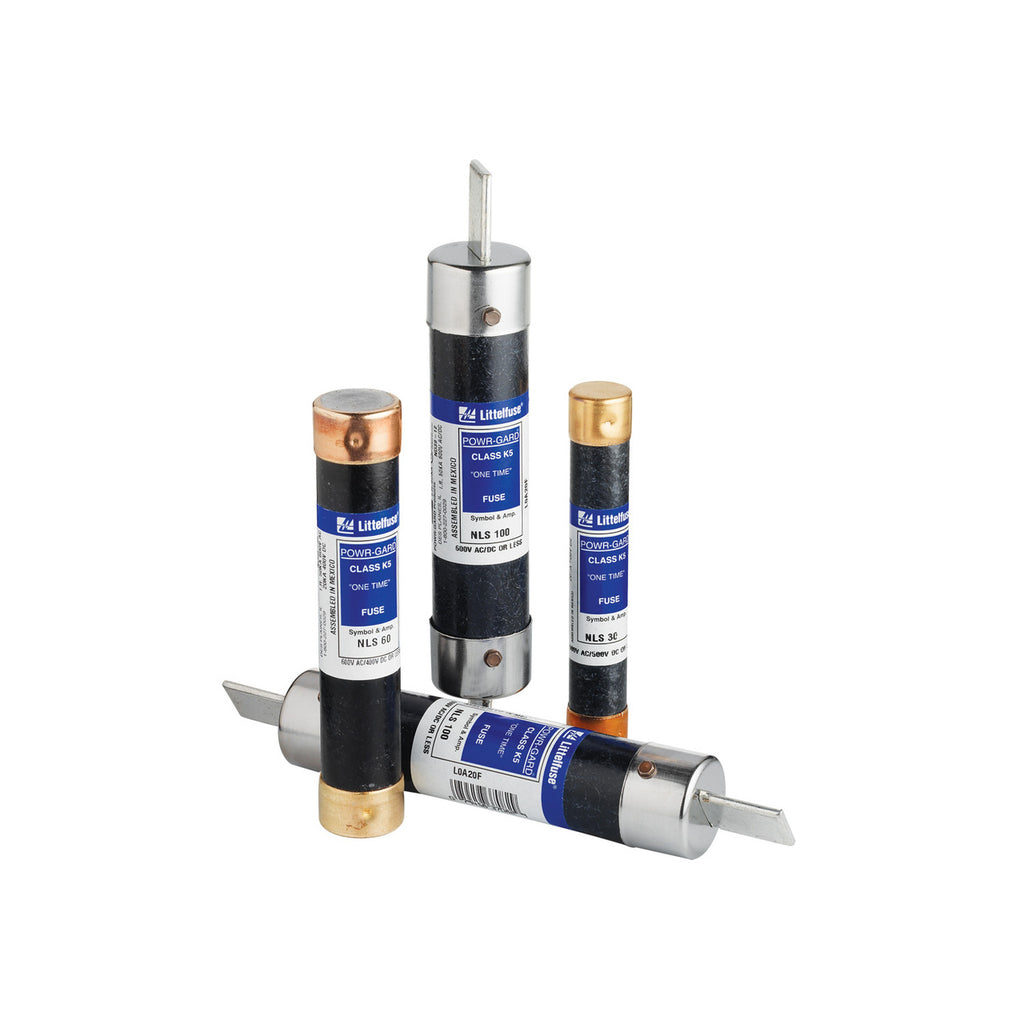

NLN150 is a Littelfuse Class K5 low voltage fuse rated for 150 amps and 250 volts AC/DC with a 1 pole cartridge design.This fuse provides fast blow protection for general-purpose feeder and branch circuits. It features a 50,000 amp interrupting rating at 250 volts, a 1.56 inch diameter barrel, and complies with UL 248-9, CSA, and CE certifications. The NLN150 is designed for reliable circuit protection in commercial and industrial applications.
- Amperage: 150A
- Voltage Rating: 250V AC/DC
- Poles: 1
- Fuse Class: K5
- Interrupt Rating: 50kA at 250V
- Mounting Type: Cartridge
- Speed: Fast Blow
- Diameter: 1.56 inches
- Certifications: UL 248-9, CSA, CE
- Series: NLN
Specifications
- Part Number: NLN150
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : NLN
- Type : NLN
- Voltage : 250
- Amperage : 150
- AIC rating : 50kA@250V
- Diameter : 0.81
- Class Rating : K5
- Barrels : 1
Product Data
- UPC : 07945836086
- GTIN : 00079458360868
- Country of Origin : Mexico
- Weight : 0.8
- Certification : Standard 248-9 UL Listed/CSA
