Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
NLN125

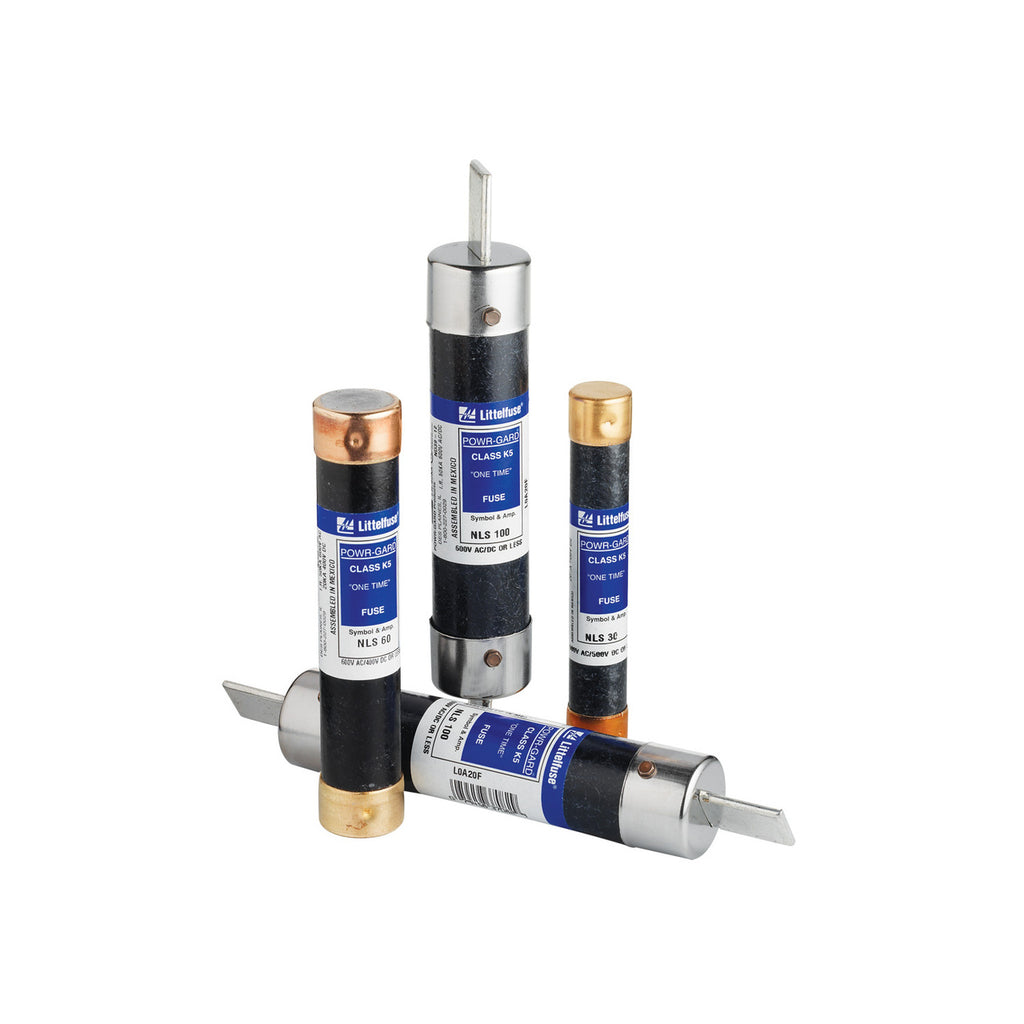

NLN125 is a Littelfuse POWR-GARD NLN Series Class K5 one-time fuse designed for reliable circuit protection in industrial and commercial power distribution systems. This fast blow fuse features a knife-blade mounting style and is rated for 125 amps at 250 volts AC/DC, providing robust protection with a 50,000 amp interrupt rating. It is non-indicating and suitable for applications requiring high interrupt capacity and fast-acting response.
- Part Number: NLN125
- Manufacturer: Littelfuse
- Series: NLN
- Class: K5
- Amperage: 125 A
- Voltage: 250 VAC/VDC
- Interrupt Rating: 50,000 A
- Mounting Type: Knife-Blade
- Speed: Fast Blow
- Application: One-Time Fuse
- Frequency Rating: 50/60 Hz
- Standards: UL Listed
Specifications
- Part Number: NLN125
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : NLN
- Type : NLN
- Voltage : 250
- Amperage : 125
- AIC rating : 50kA@250V
- Diameter : 2.59
- Class Rating : K5
- Barrels : 1
Product Data
- UPC : 07945836084
- GTIN : 00079458360844
- Weight : 5.19
