NLN035 - Littelfuse 35A 250VAC/VDC Fast Blow Cartridge Fuse Class K5 1-Pole 20kA/50kA Interrupt

NLN035

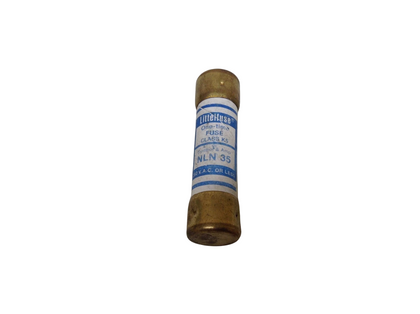

NLN035 is a Littelfuse fast blow cartridge fuse designed for general purpose circuit protection with a 35 ampere rating.This Class K5 fuse features a 250 VAC/VDC voltage rating and a high interrupt rating of 20,000 amps at 250 VDC and 50,000 amps at 250 VAC. It is a one-time use fuse with a 1-pole cartridge body measuring approximately 13/16 inch diameter by 3 inches in length. The fuse is UL 248-9, CSA, and CE approved, suitable for protecting circuits with little or no motor load.

Key Specifications
• Amperage: 35 A
• Voltage Rating: 250 VAC/VDC
• Interrupt Rating: 20 kA DC / 50 kA AC
• Fuse Type: Fast Blow, One Time Use
• Class: K5
• Poles: 1
• Mounting Type: Cartridge
• Dimensions: 13/16 inch diameter x 3 inch length
• Certifications: UL 248-9, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: NLN035
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : NLN
• Type : NLN
• Voltage : 250
• Amperage : 35
• AIC rating : 50kA@250V
• Diameter : 0.81
• Class Rating : K5
• Barrels : 1



Product Data

• UPC : 079458360745
• GTIN : 00079458360745
• Country of Origin : Mexico
• Weight : 0.94
• Certification : Standard 248-9 UL Listed/CSA
