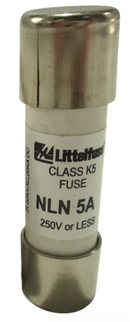

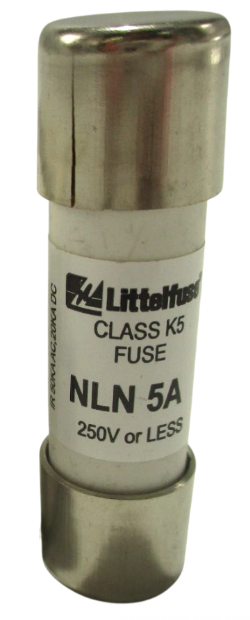

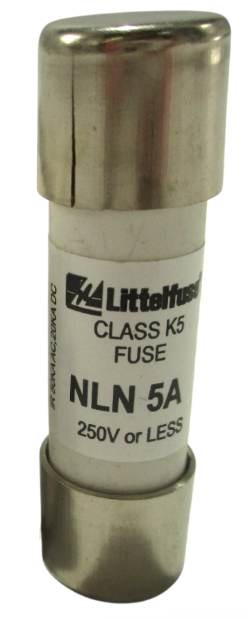

NLN005 - Littelfuse 5A 250VAC/VDC Class K5 Fast Blow Cartridge Fuse

NLN005

NLN005 is a Littelfuse Class K5 fast blow cartridge fuse rated for 5 amps and 250 VAC/VDC applications.NLN005 provides reliable one-time fuse protection for general purpose circuits with little or no motor load. It features a 9/16 inch diameter, 2 inch length cartridge body with a 50,000 amp interrupt rating, meeting UL 248-9, CSA, and CE certifications.

Key Specifications
• Amperage: 5 Amps
• Voltage Rating: 250 VAC/VDC
• Fuse Type: Fast Blow, One Time Use
• Class/Series: Class K5
• Interrupt Rating: 50,000 Amps
• Mounting Type: Cartridge
• Size: 9/16 inch diameter x 2 inch length
• Certifications: UL 248-9, CSA, CE
• Application: General Purpose Circuits with Little or No Motor Load
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: NLN005
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : NLN
• Type : NLN
• Voltage : 250
• Amperage : 5
• AIC rating : 50kA@250V
• Diameter : 0.56
• Class Rating : K5
• Barrels : 1



Product Data

• UPC : 079458360554
• GTIN : 00079458360554
• Country of Origin : China
• Weight : 0.45
• Certification : Standard 248-9 UL Listed/CSA
