Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description

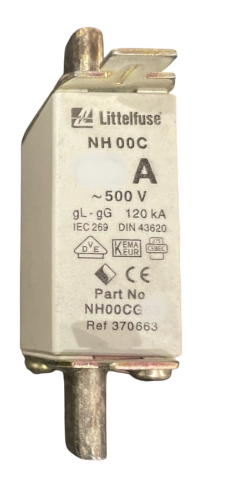

NH00CG100
NH00CG100 is a Littelfuse fast blow fuse designed for circuit protection with a 100 ampere rating and 500 volts AC/440 volts DC voltage capacity.NH00CG100 features a square NH00 size with knife blade termination style and an external trip indicator for easy status monitoring. It offers a high interrupt rating of 120kA AC and 25kA DC, suitable for industrial and power distribution applications. This fuse complies with DIN 43.620 and IEC 269-2-1 standards and is VDE approved.
- Amperage: 100A
- Voltage Rating: 500VAC / 440VDC
- Fuse Type: Fast Blow
- Fuse Size / Group: NH00
- Termination Style: Knife Blade
- Built-in Feature: External Trip Indicator
- Interrupt Rating: 120kA AC, 25kA DC
- Standards: DIN 43.620, IEC 269-2-1
- Approvals: VDE
Specifications
- Part Number: NH00CG100
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : NH_G Series
- Type : NH00C
- Voltage : 500
- Amperage : 100
- AIC rating : 120kA@500V
- Connection : Knife Blade
- Class Rating : gL/gG
- Barrels : 1
Product Data
- Weight : 5.19
