2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
NGH308035EC

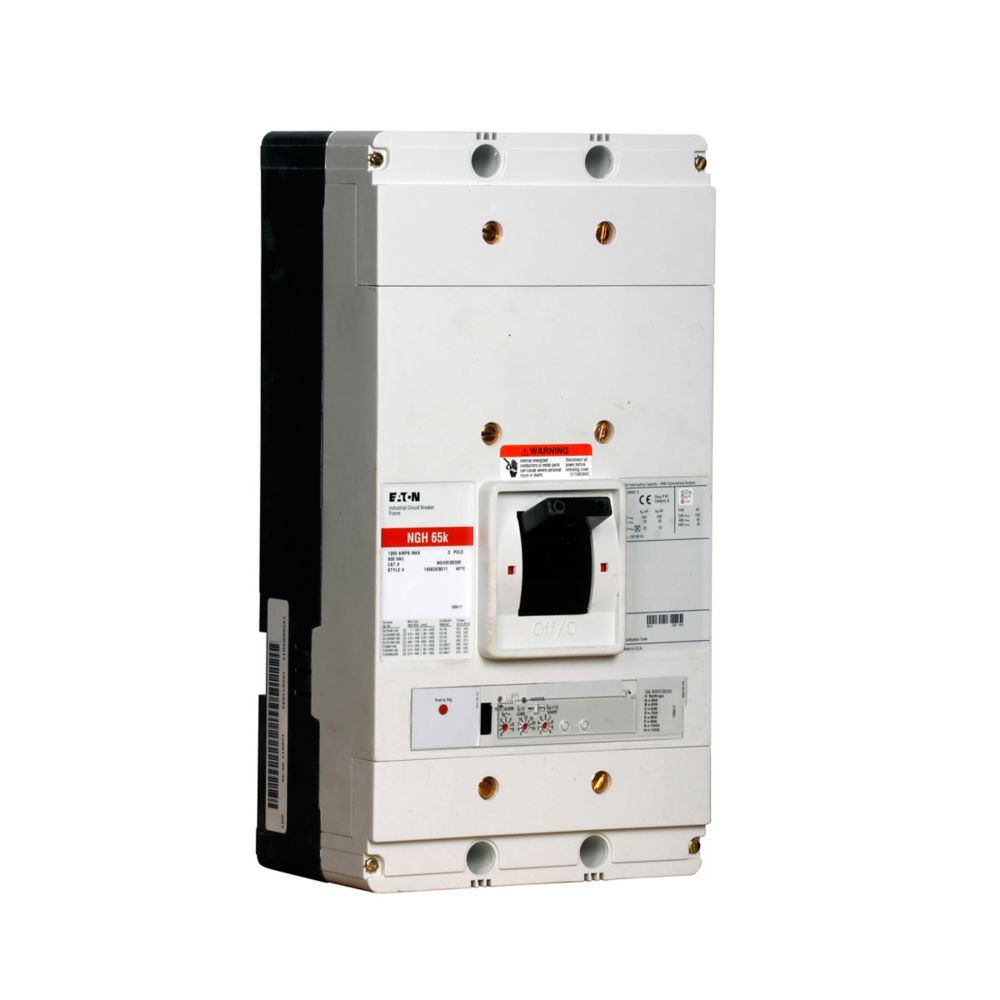

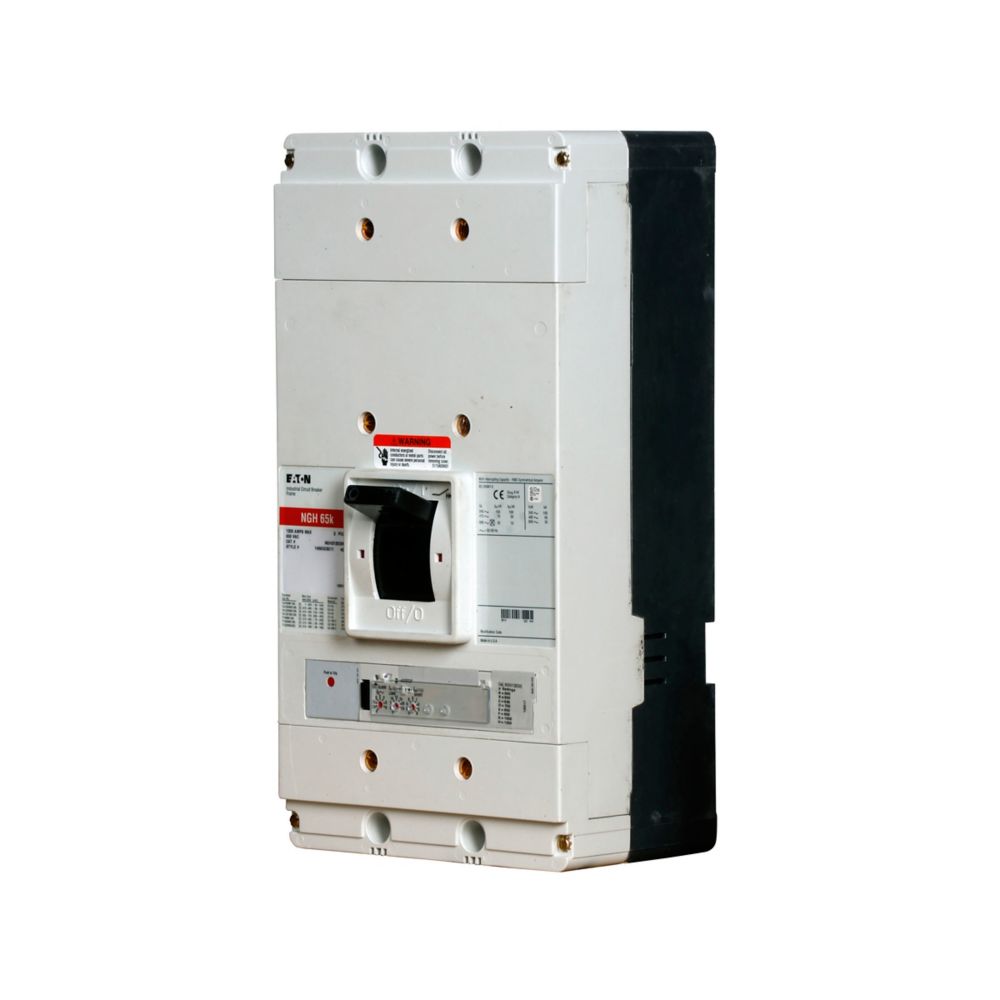

NGH308035EC is a Series G molded case circuit breaker from Eaton. This NG-frame electronic breaker uses a Digitrip 310 RMS trip unit and is rated for 800A at 480 Vac with 3 poles and a 50/60 Hz frequency range. Key Specifications
- Part Number: NGH308035EC
- Manufacturer: Eaton
- Family: Series G
- Type: NG-frame molded case circuit breaker
- Amperage: 800 A
- Voltage: 480 V
- Phase: 3
- Poles: 3
- Interrupt Rating: 65 kA
- Frequency: 50/60 Hz
- Trip Unit: Digitrip 310 RMS
- Connection: Line and load
Specifications
- Part Number: NGH308035EC
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series G
- Type : NG-frame molded case circuit breaker
- Voltage : 480 V
- Amperage : 800 A
- Phase : 3
- Poles : 3
- AIC rating : 65 kA
- Connection : Line and load
- Functions : Electronic LSG trip
- Frame Size : NG-frame
- Hz : 50/60 Hz
- Protection : Solid State
- Trip Type : Digitrip 310 RMS
Product Data
- UPC : 78668557432
- GTIN : 00786685574325
- Dimensions : 6 in x 9 in x 9 in (Length/Depth x Height x Width)
- Weight : 47 lb
- Certification : UL, CSA
