Description
NGB3B090B

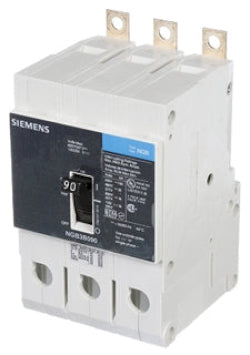

NGB3B090B is a Siemens NGB series 3-pole molded case circuit breaker rated for 90 amperes at 600 volts AC with thermal magnetic protection and long-time and instantaneous trip functions.
This bolt-on circuit breaker is designed for panelboard mounting and reverse feed applications. It features load side lug terminals for secure connections and is certified according to UL489. The breaker delivers reliable overcurrent protection in industrial and commercial power distribution systems.
- Amperage: 90A
- Voltage: 600V AC
- Poles: 3
- Series/Frame: NGB
- Mounting Type: Bolt-On
- Trip Functions: Long-Time and Instantaneous (LI)
- Protection Type: Thermal Magnetic
- Interrupting Rating: 25kA @ 480V AC
- Terminal Connection: Load Side Lug
- Certification: UL489
- Dimensions: 3 inches wide x 4.5 inches high x 3.3 inches deep
- Weight: 2.65 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: NGB3B090B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGB
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : GG Frame
- Temp Rating : -13¡F-158¡F
- Protection : Thermal Magnetic
Product Data
- UPC : 783643414365
- GTIN : 00783643414365
- Country of Origin : Mexico
- Weight : 2.615
- Certification : UL, IEC
