Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NGB2B100B

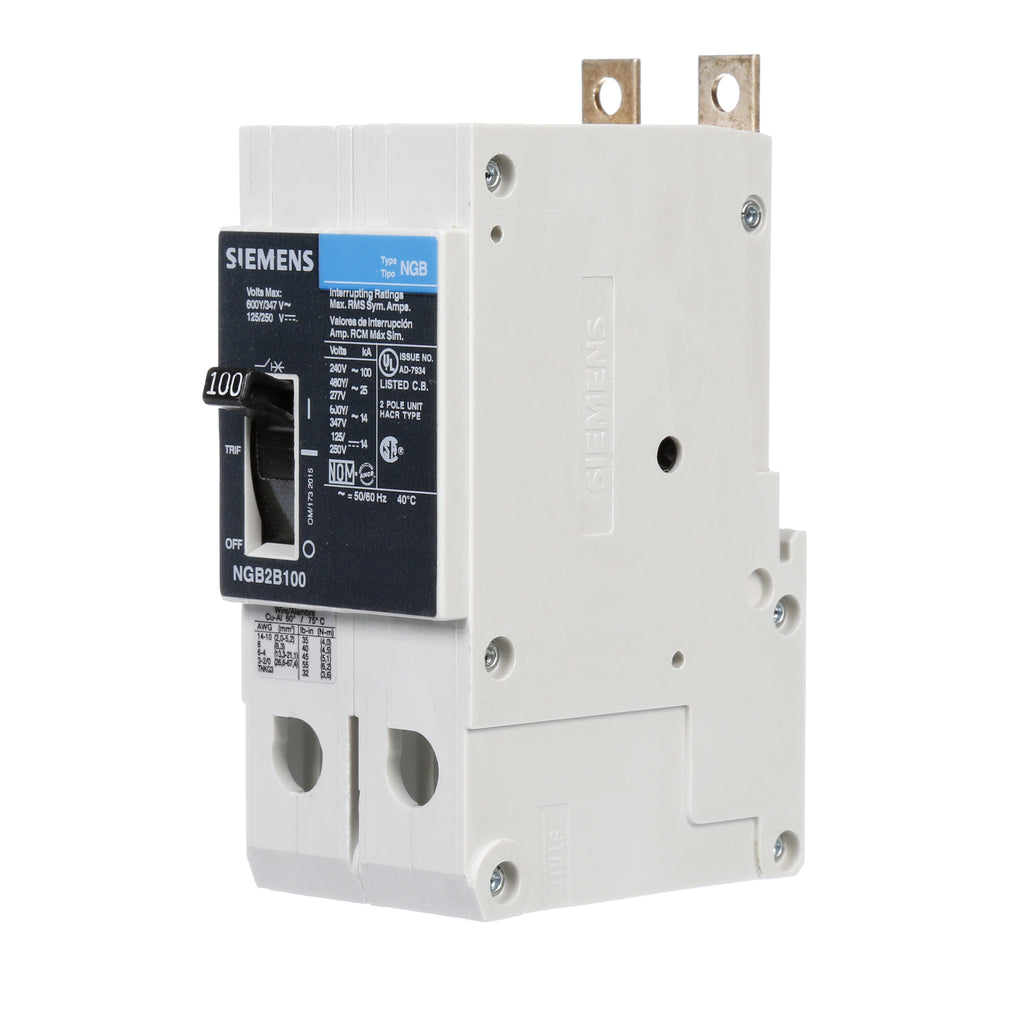

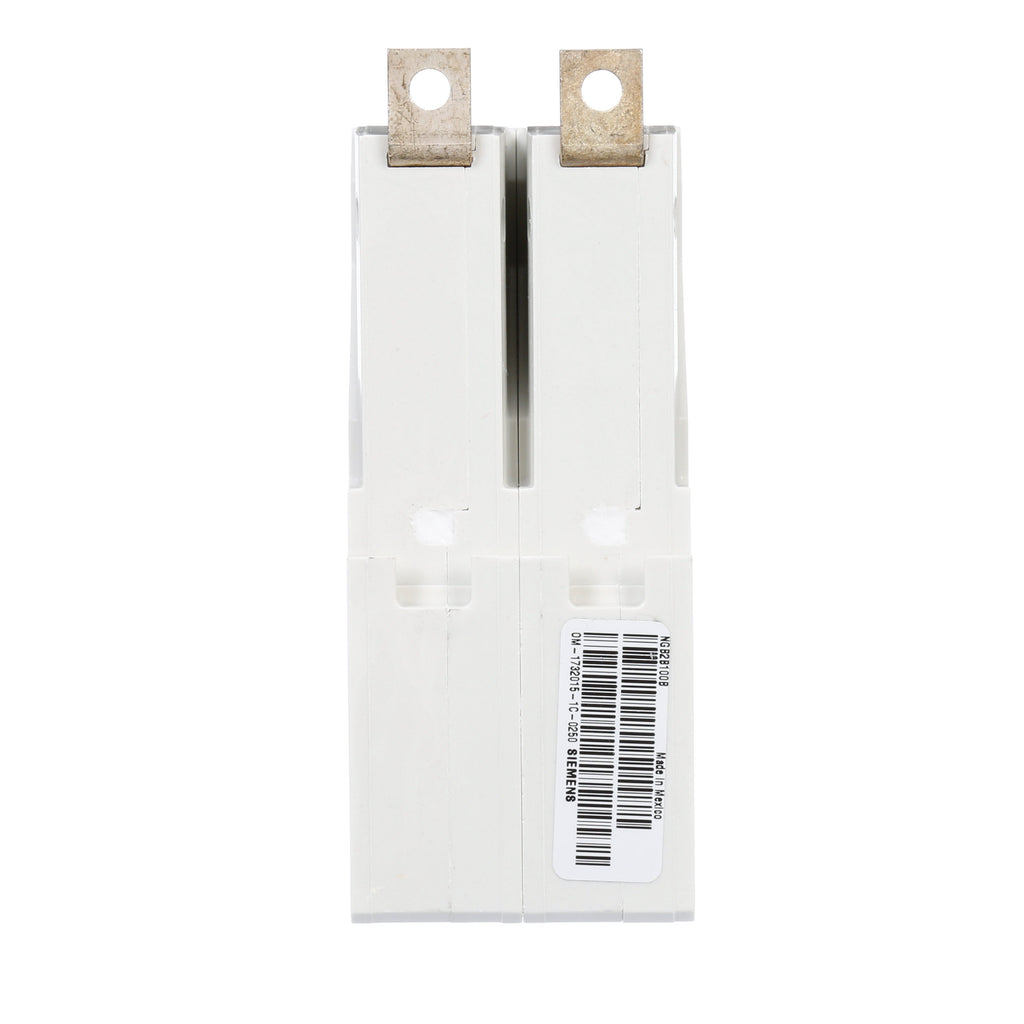

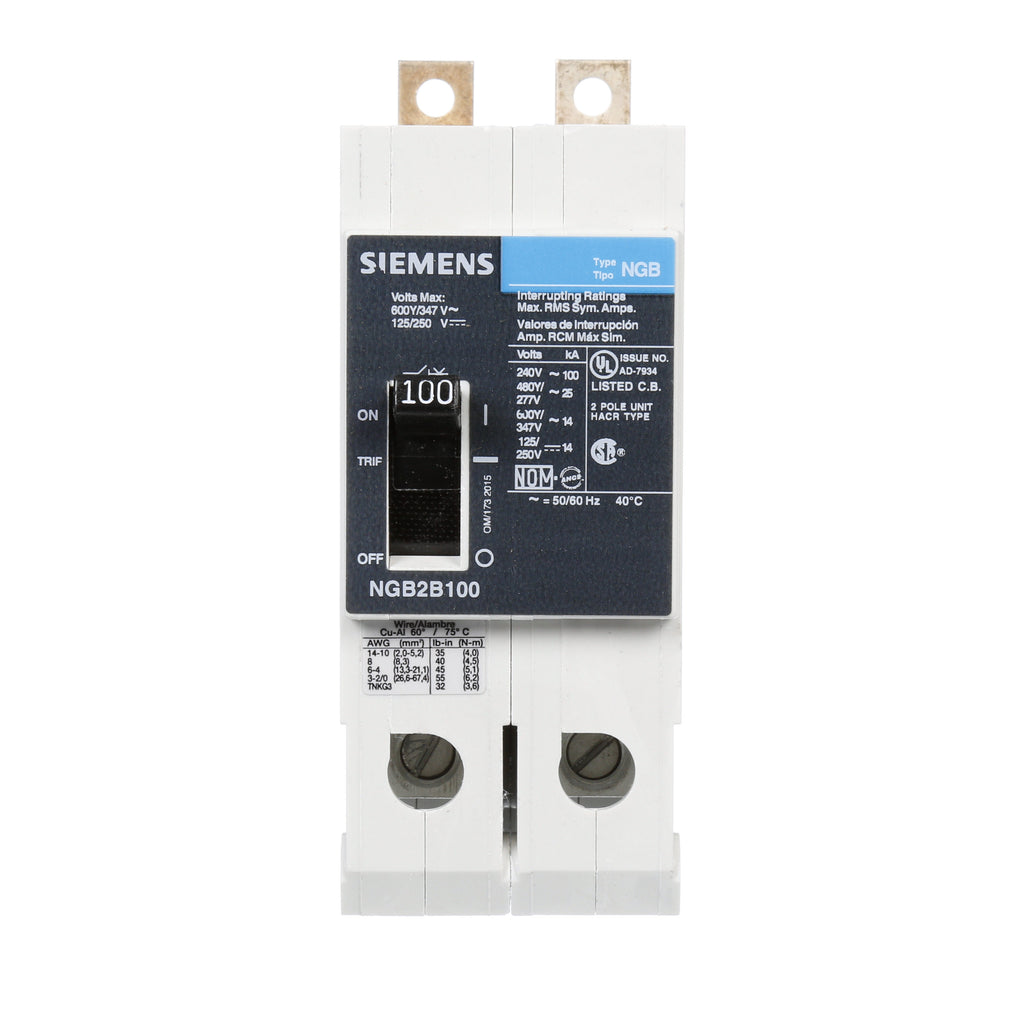

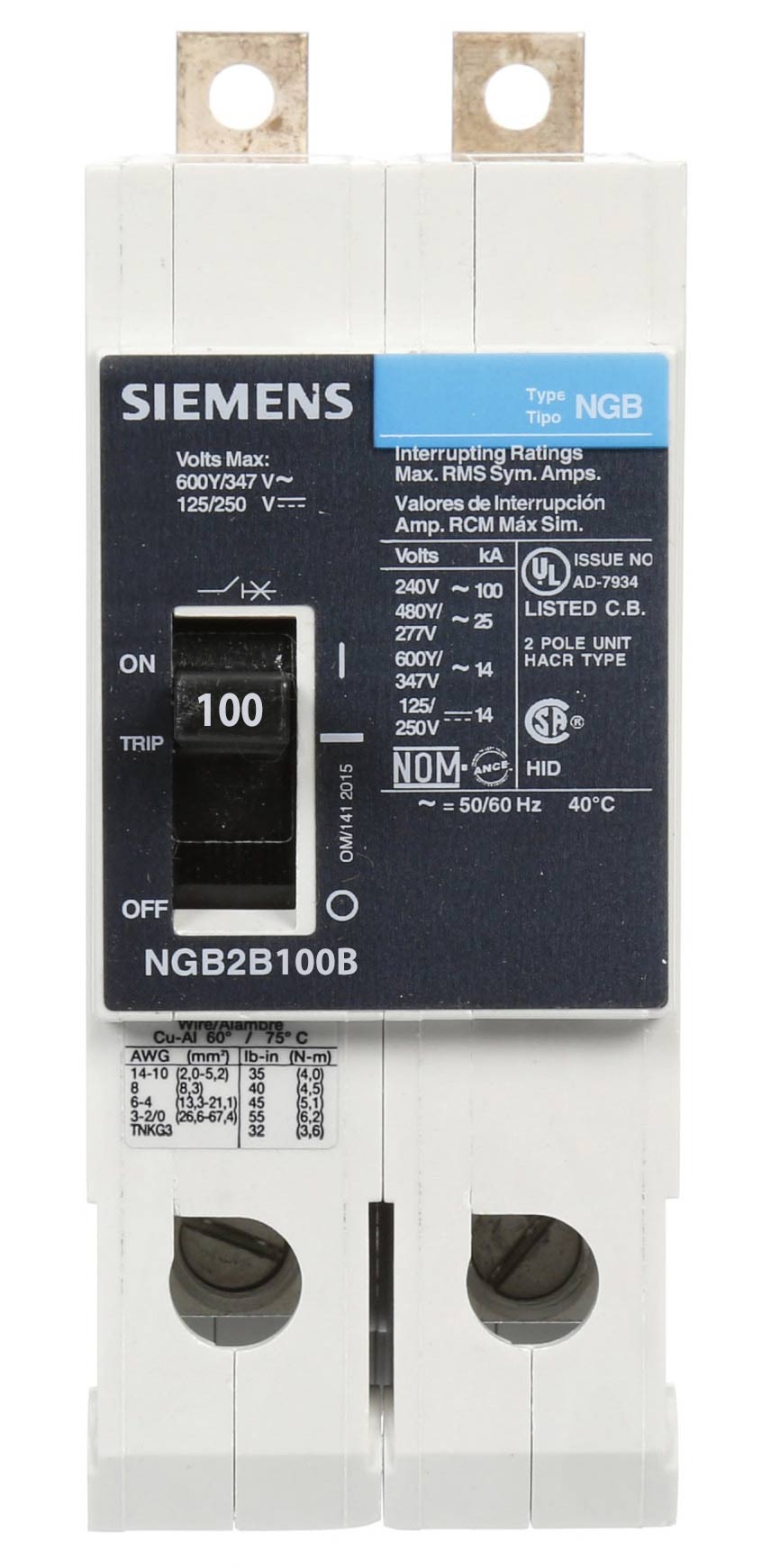

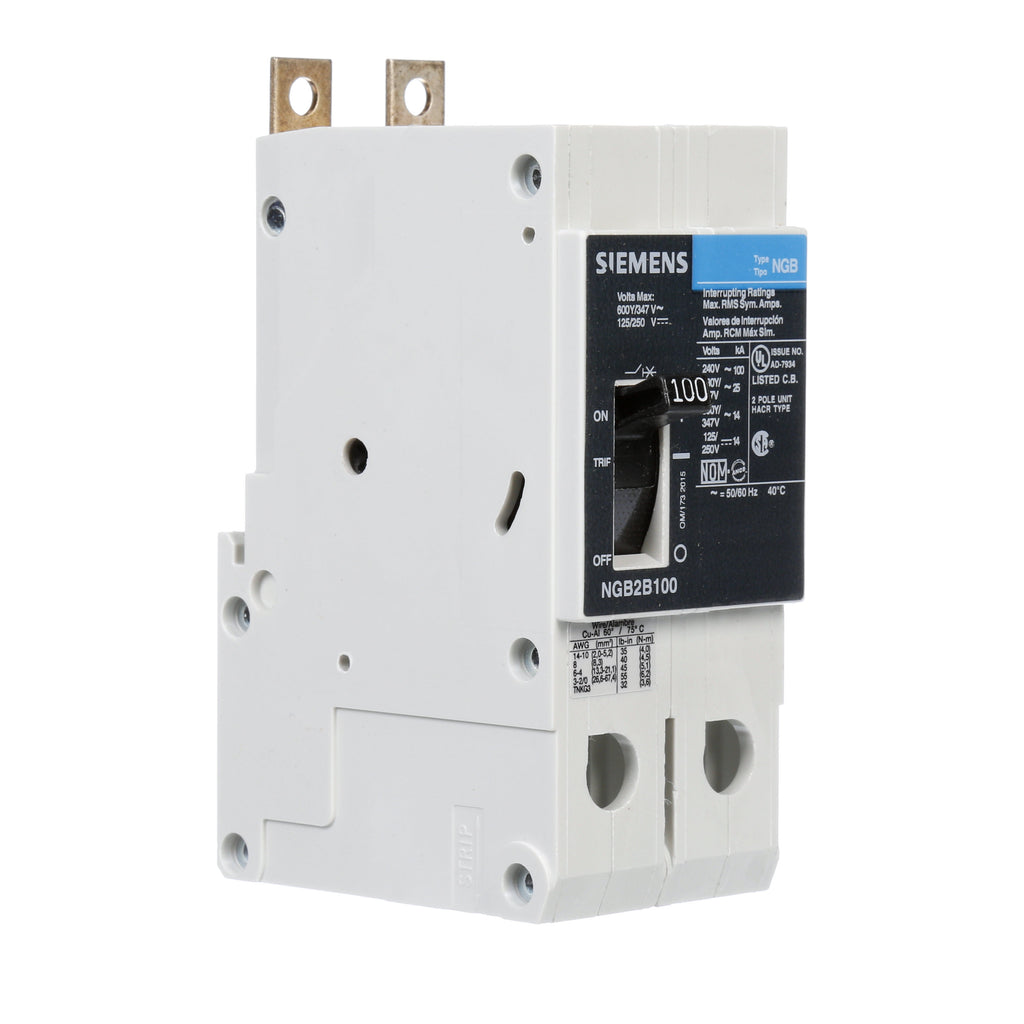

NGB2B100B is a Siemens 2-pole, 100 amp, 600 volt bolt-on molded case circuit breaker designed for reliable overcurrent protection.This Siemens Type NGB circuit breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions. It has a 25kA interrupt rating at 480V and is suitable for panelboard mounting with load side lug terminals. The breaker is compact, easy to install, and supports reverse feed applications.
- Key Specifications
- Manufacturer: Siemens
- Part Number: NGB2B100B
- Frame Type: NGB
- Amperage: 100A
- Voltage: 600V AC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA at 480V
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous (LI) functions
- Phase: Single Phase
- Connection: Load side lug terminals
- Standards: UL Listed
- Part Number: NGB2B100B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGB
- Voltage : 600
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : GG Frame
- Temp Rating : -13¡F-158¡F
- Protection : Thermal Magnetic
- UPC : 783643414228
- GTIN : 00783643414228
- Country of Origin : Mexico
- Weight : 1.889
- Certification : UL, IEC
