Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

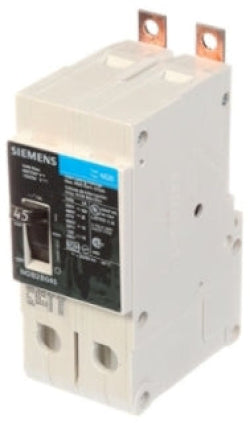

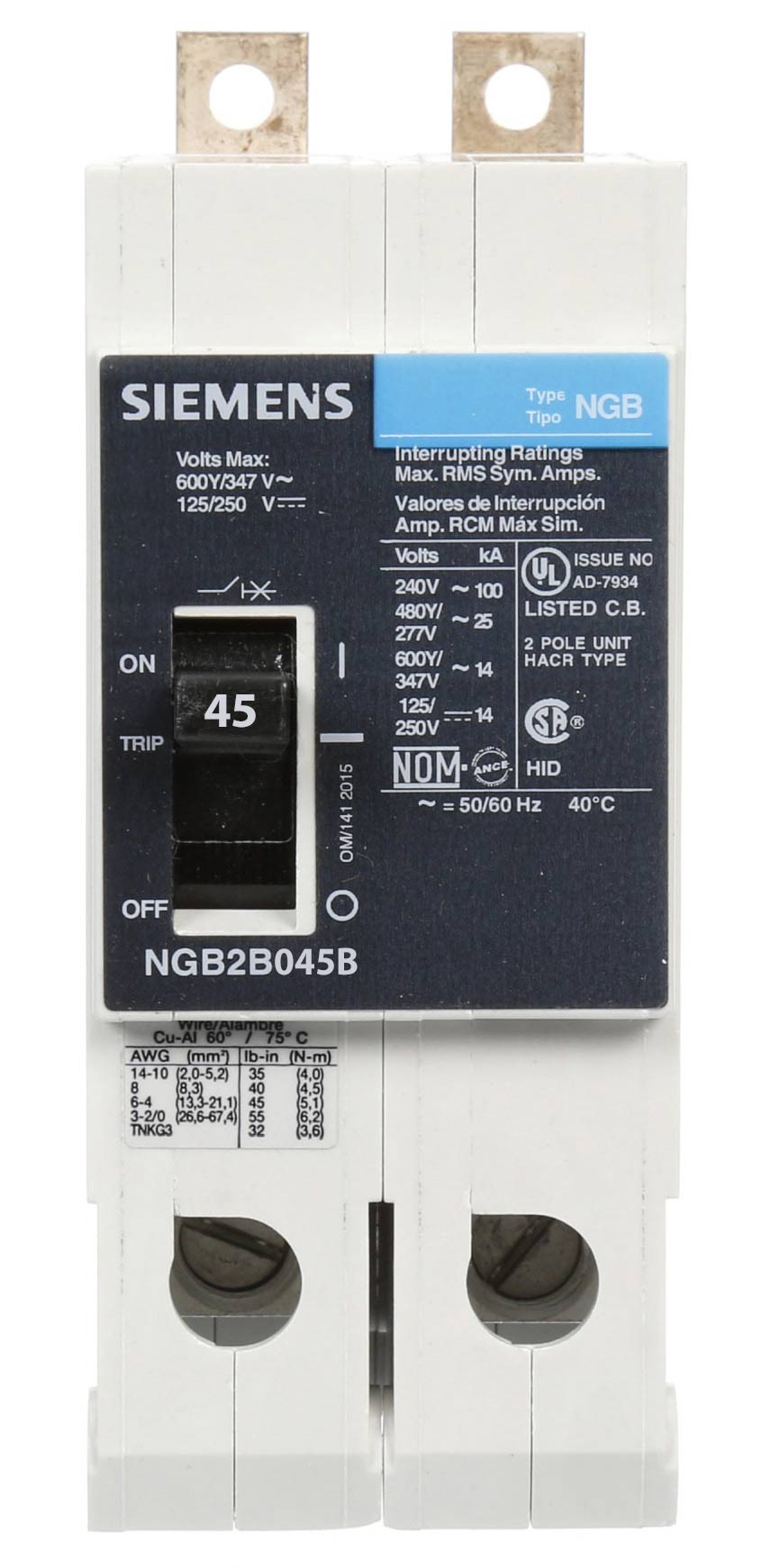

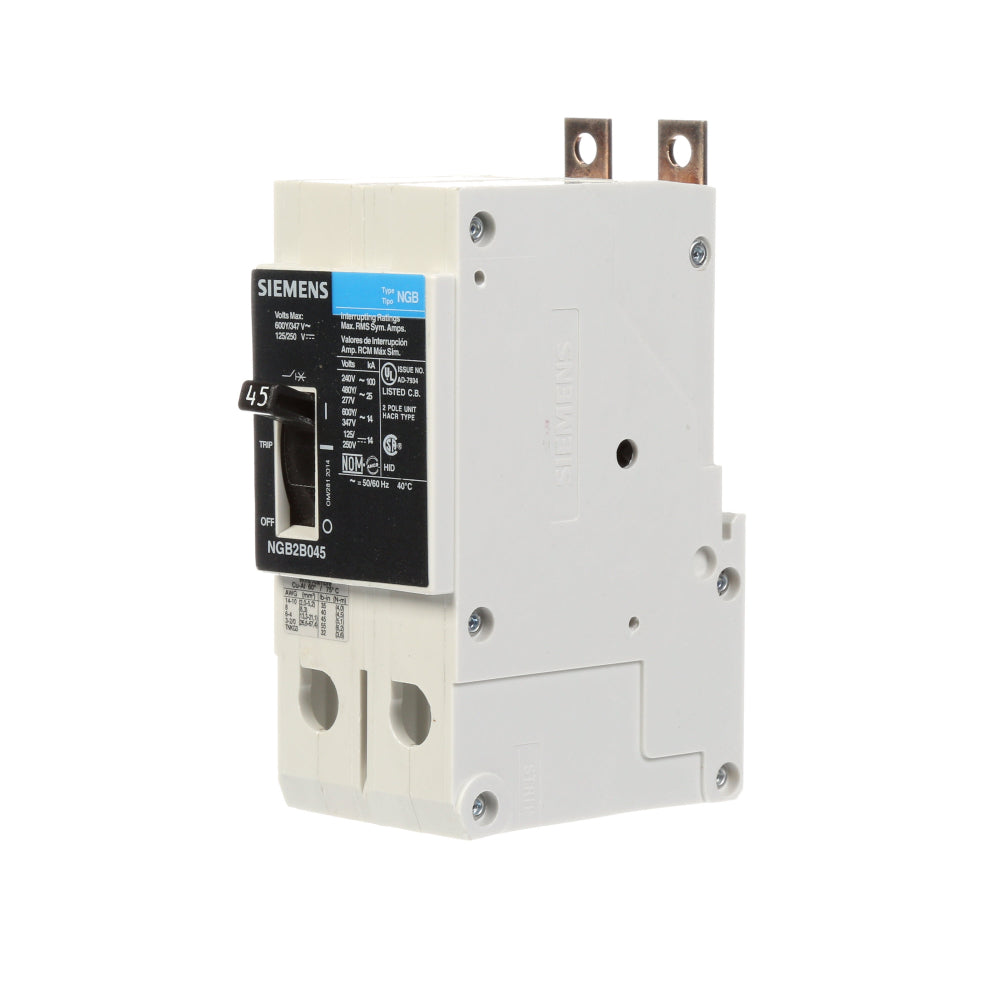

NGB2B045B
NGB2B045B is a Siemens 2-pole molded case circuit breaker rated for 45 amps and 600 volts AC with bolt-on mounting.This Siemens NGB series breaker features thermal magnetic trip units with long-time and instantaneous trip functions. It is designed for panelboard mounting, suitable for reverse fed applications, and includes load side lug terminals. The breaker has an interrupt rating of 25kA at 480Y/277V and 14kA at 600Y/347V, certified to UL489 standards.
- Key Specifications
- Amperage: 45 Amps
- Voltage: 600Y/347V AC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA @ 480Y/277V, 14kA @ 600Y/347V
- Frame Type: NGB
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Functions
- Phase: 1
- Certification: UL489
- Load Side Lug Terminals
- Suitable for Reverse Fed Applications
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: NGB2B045B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGB
- Voltage : 600
- Amperage : 45
- Phase : 1
- Poles : 2
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : GG Frame
- Temp Rating : -13¡F-158¡F
- Protection : Thermal Magnetic
Product Data
- UPC : 783643414167
- GTIN : 00783643414167
- Country of Origin : Mexico
- Weight : 1.889
- Certification : UL, IEC
