Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NGB2B030B

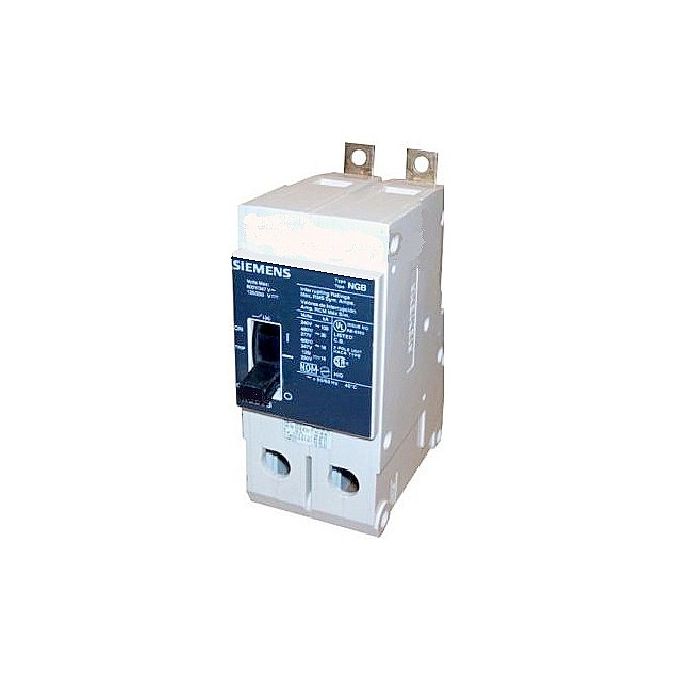

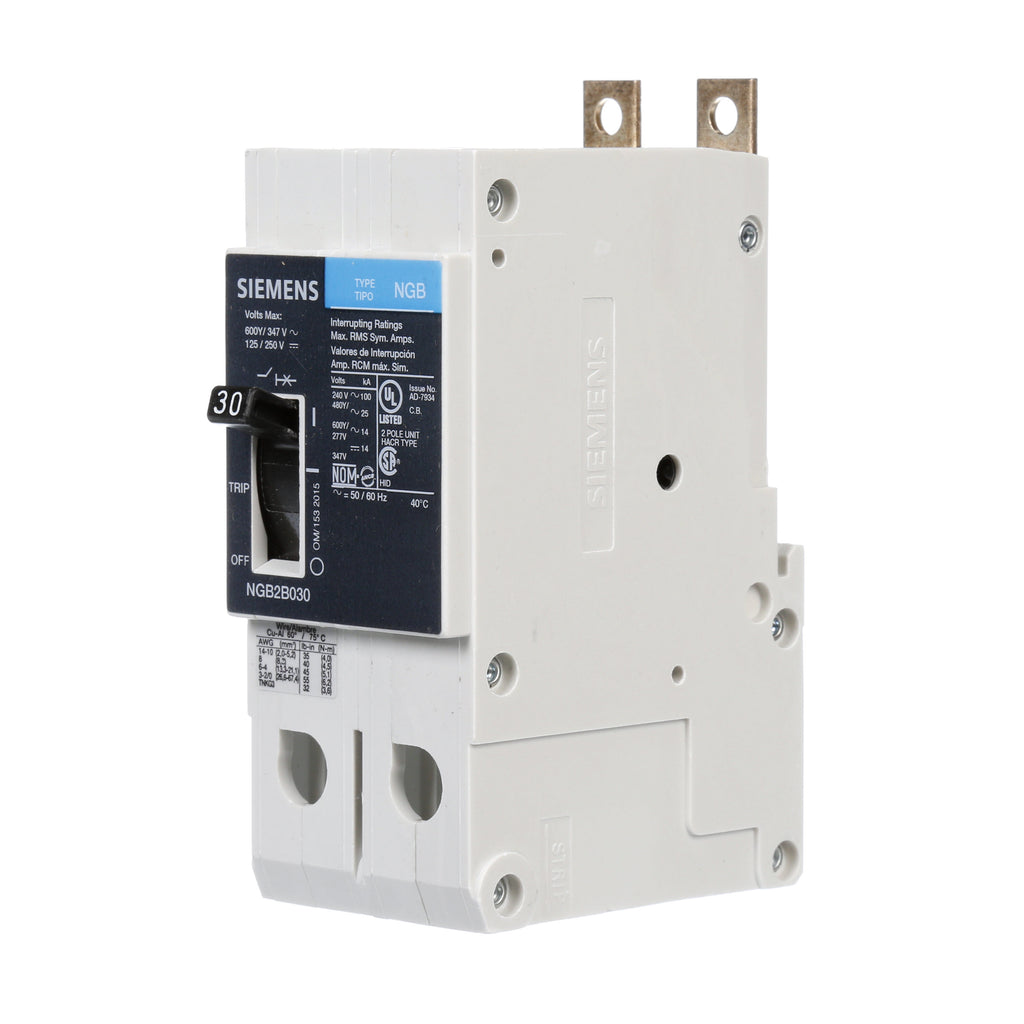

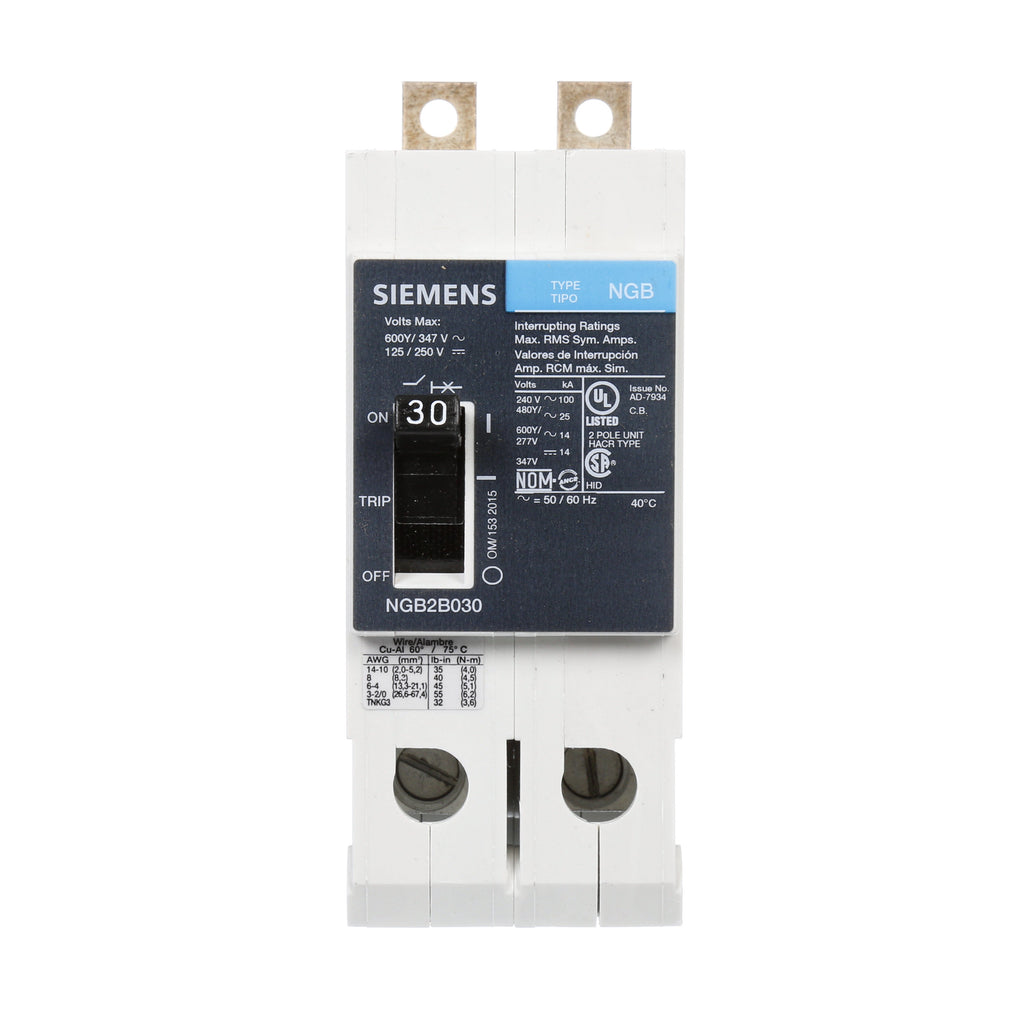

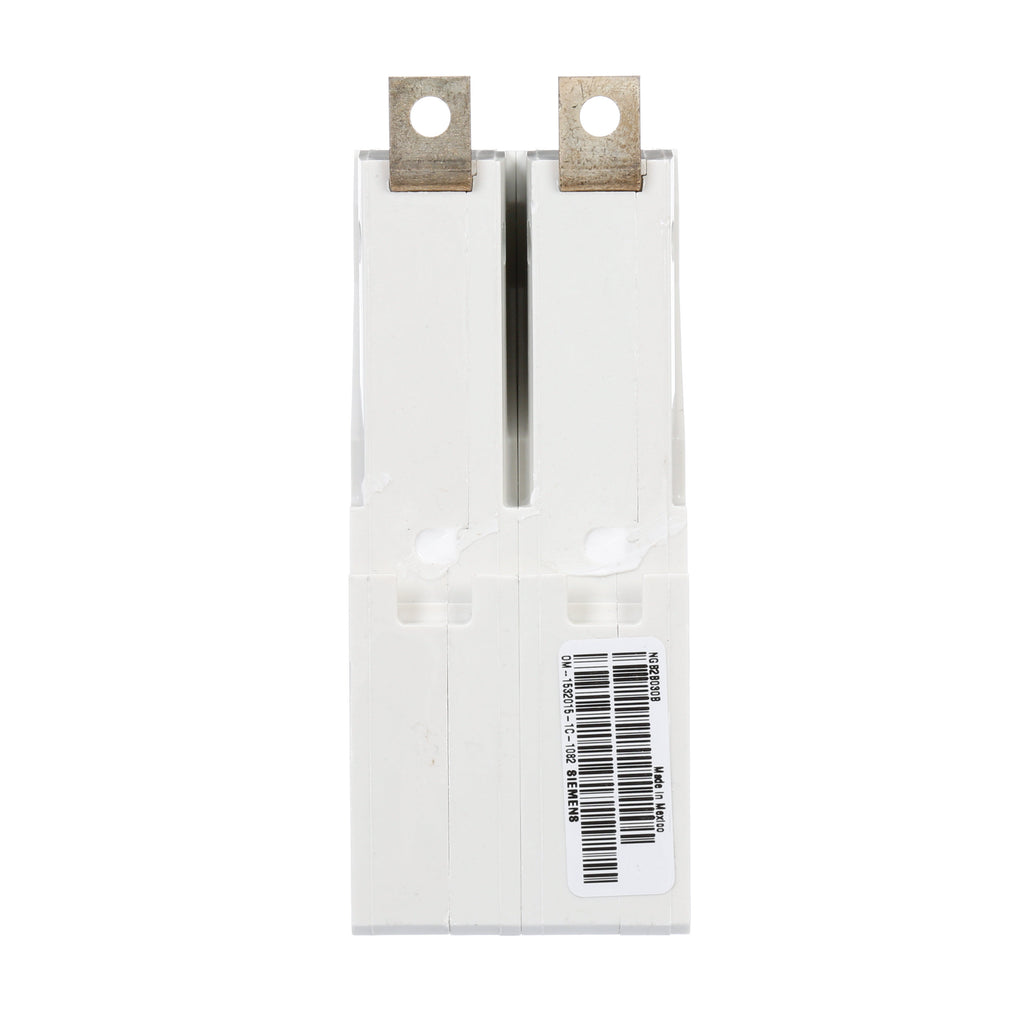

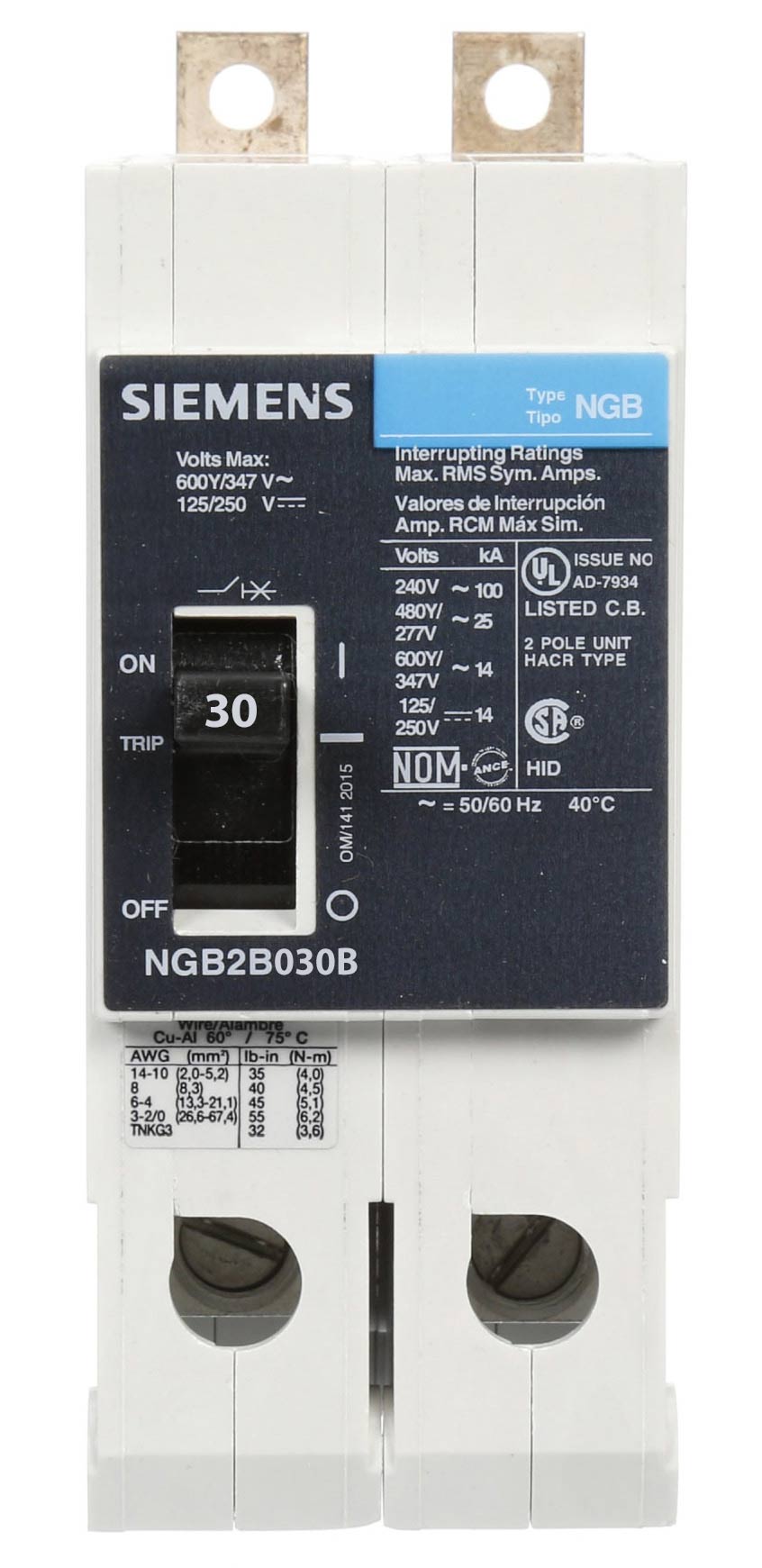

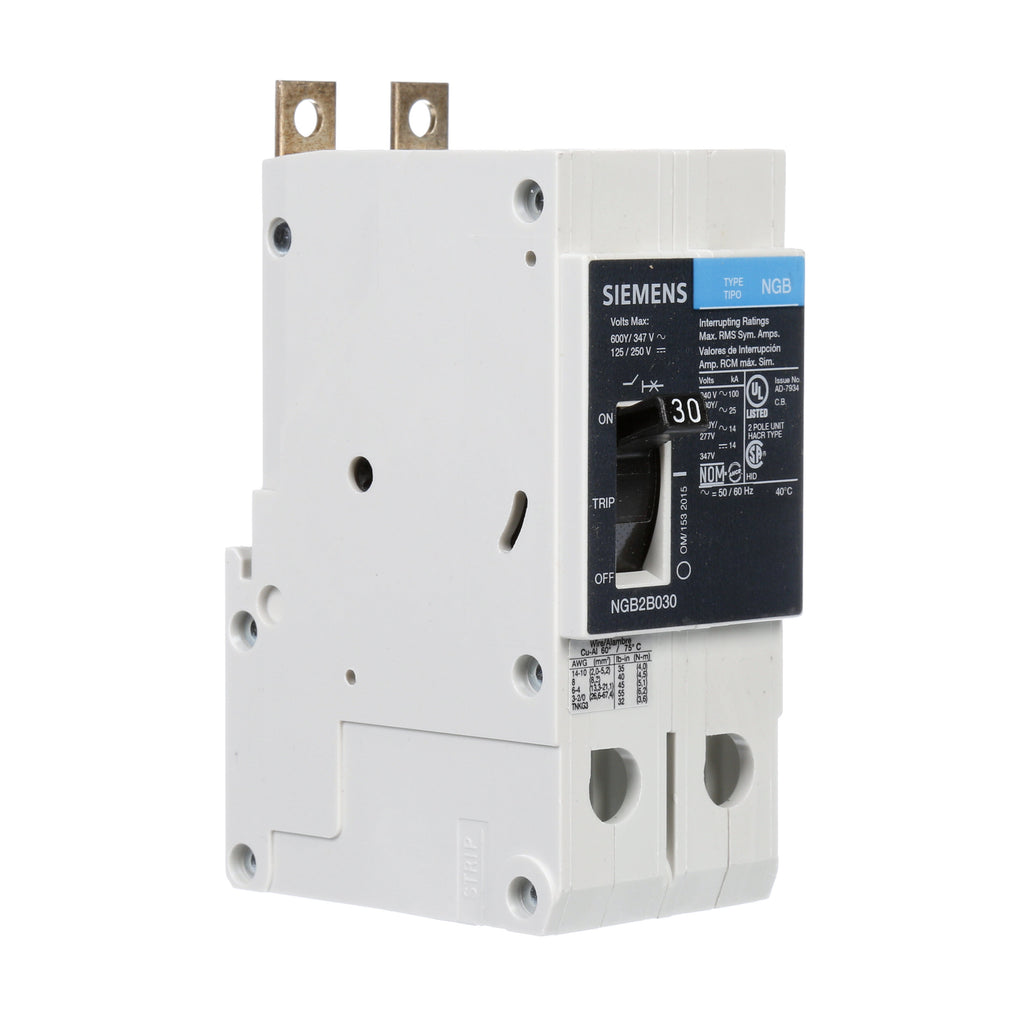

NGB2B030B is a Siemens 2-pole, 30 amp, 600 volt bolt-on molded case circuit breaker designed for reliable circuit protection.This Siemens NGB series circuit breaker features thermal magnetic trip protection with long-time and instantaneous trip functions. It has a standard interrupting rating of 25kA at 480V and 14kA at 600Y/347V, suitable for panelboard mounting and reverse feed applications. The breaker includes load side lug terminals and is UL listed, providing dependable performance in single-phase electrical systems.
- Manufacturer: Siemens
- Series/Frame: NGB
- Amperage: 30 Amps
- Voltage Rating: 600 Volts
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA @ 480V, 14kA @ 600Y/347V
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
- Connection: Load Side Lug Terminals
- Phase: Single Phase
- Certifications: UL Listed
Specifications
- Part Number: NGB2B030B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGB
- Voltage : 600
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : GG Frame
- Temp Rating : -13¡F-158¡F
- Protection : Thermal Magnetic
Product Data
- UPC : 783643414136
- GTIN : 00783643414136
- Country of Origin : Mexico
- Weight : 1.889
- Certification : UL, IEC
