Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NGB2B015B

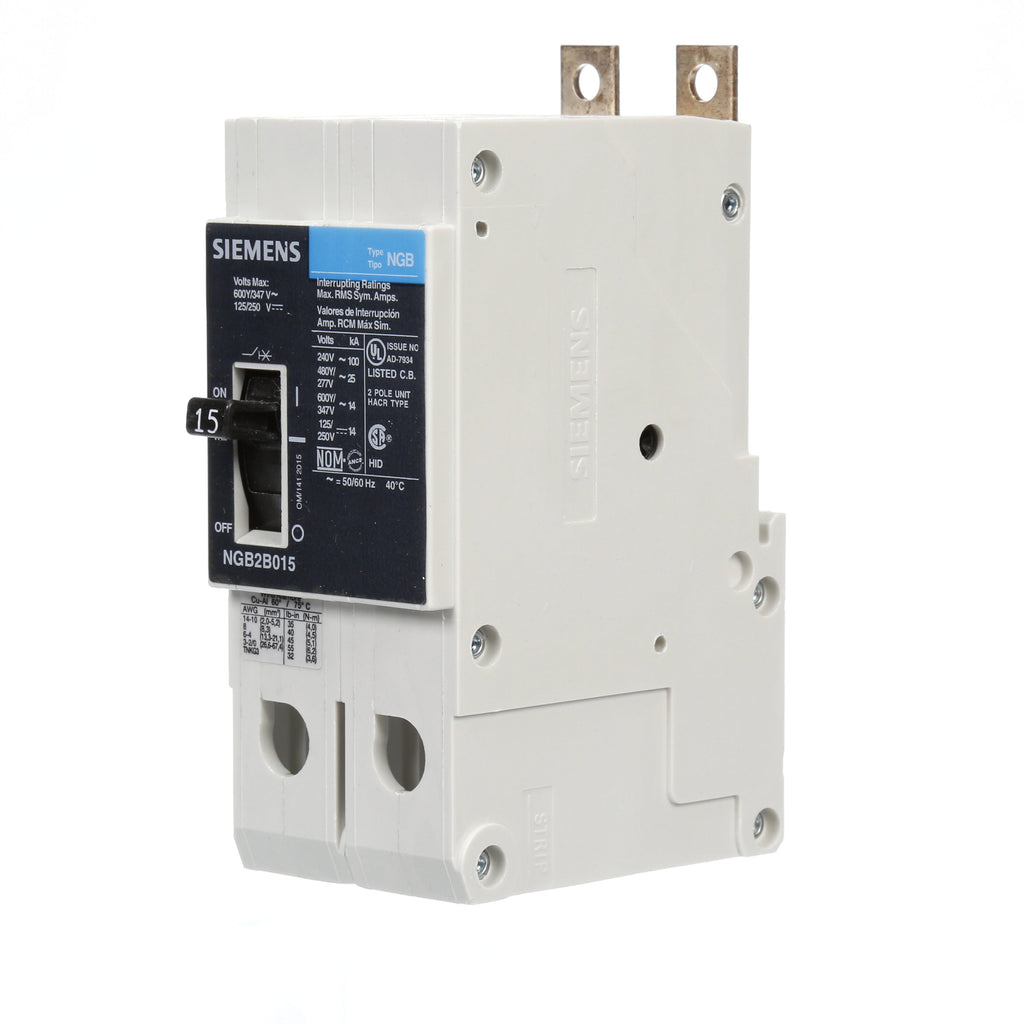

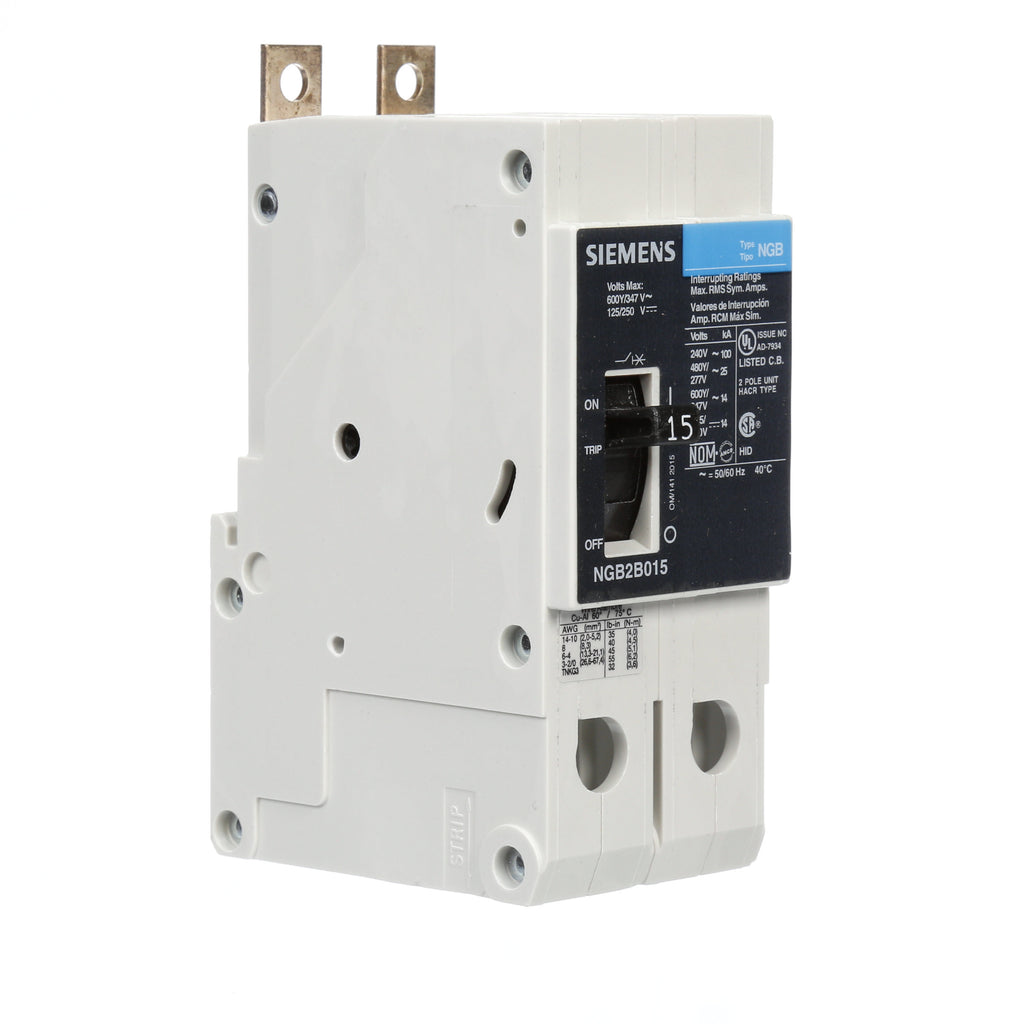

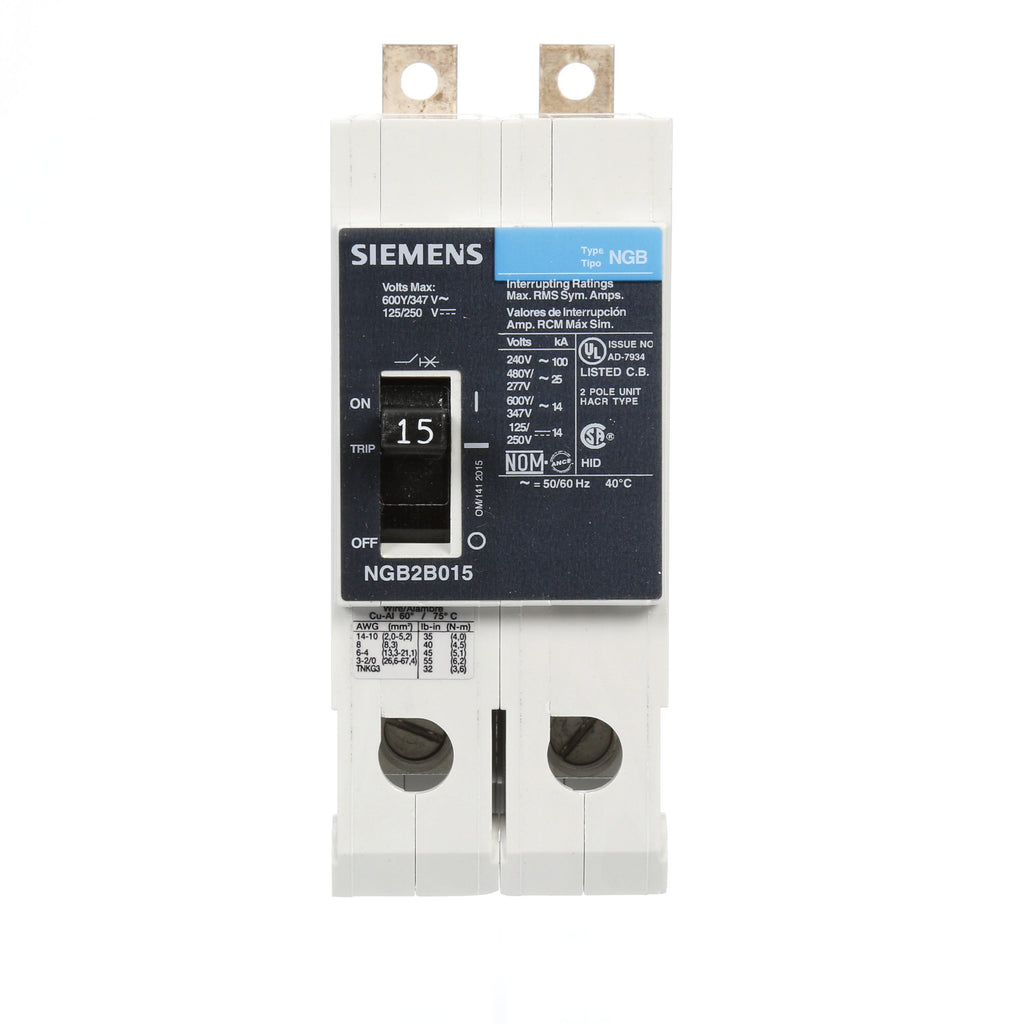

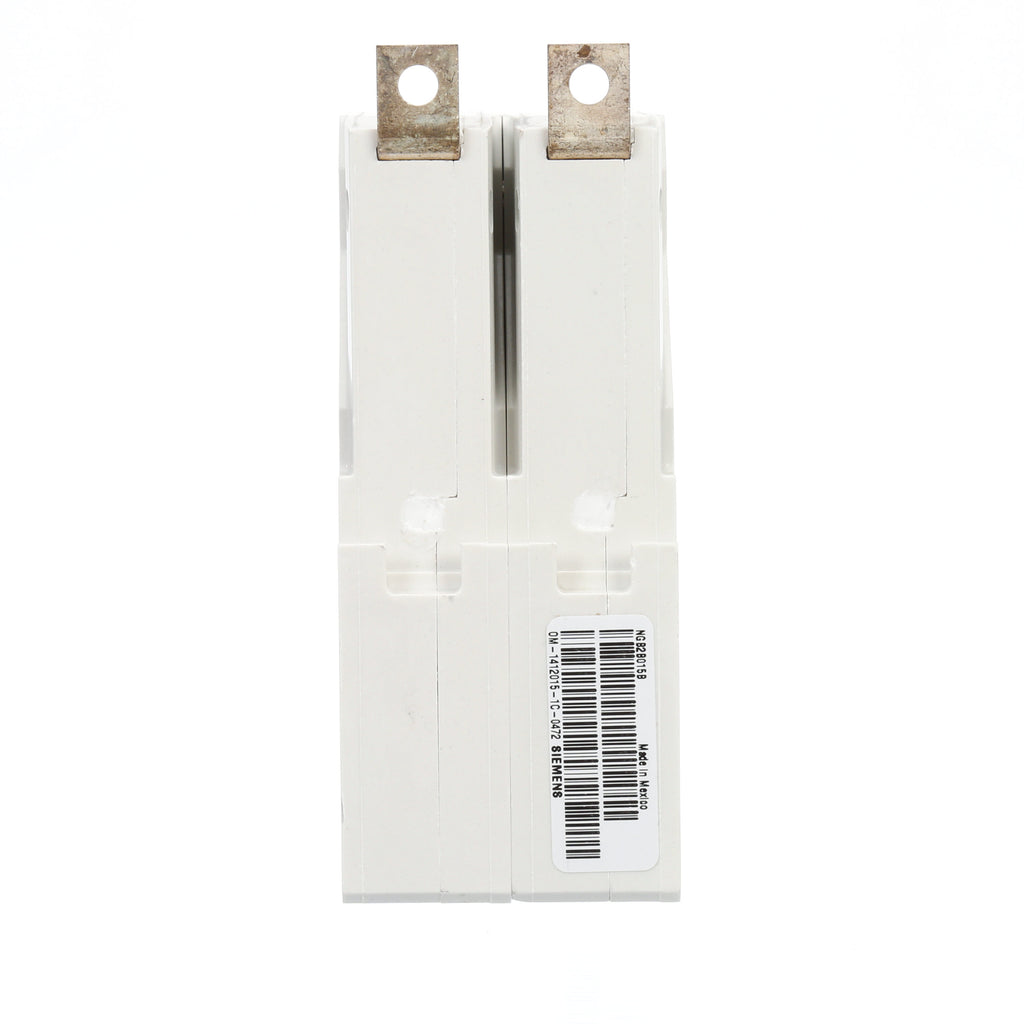

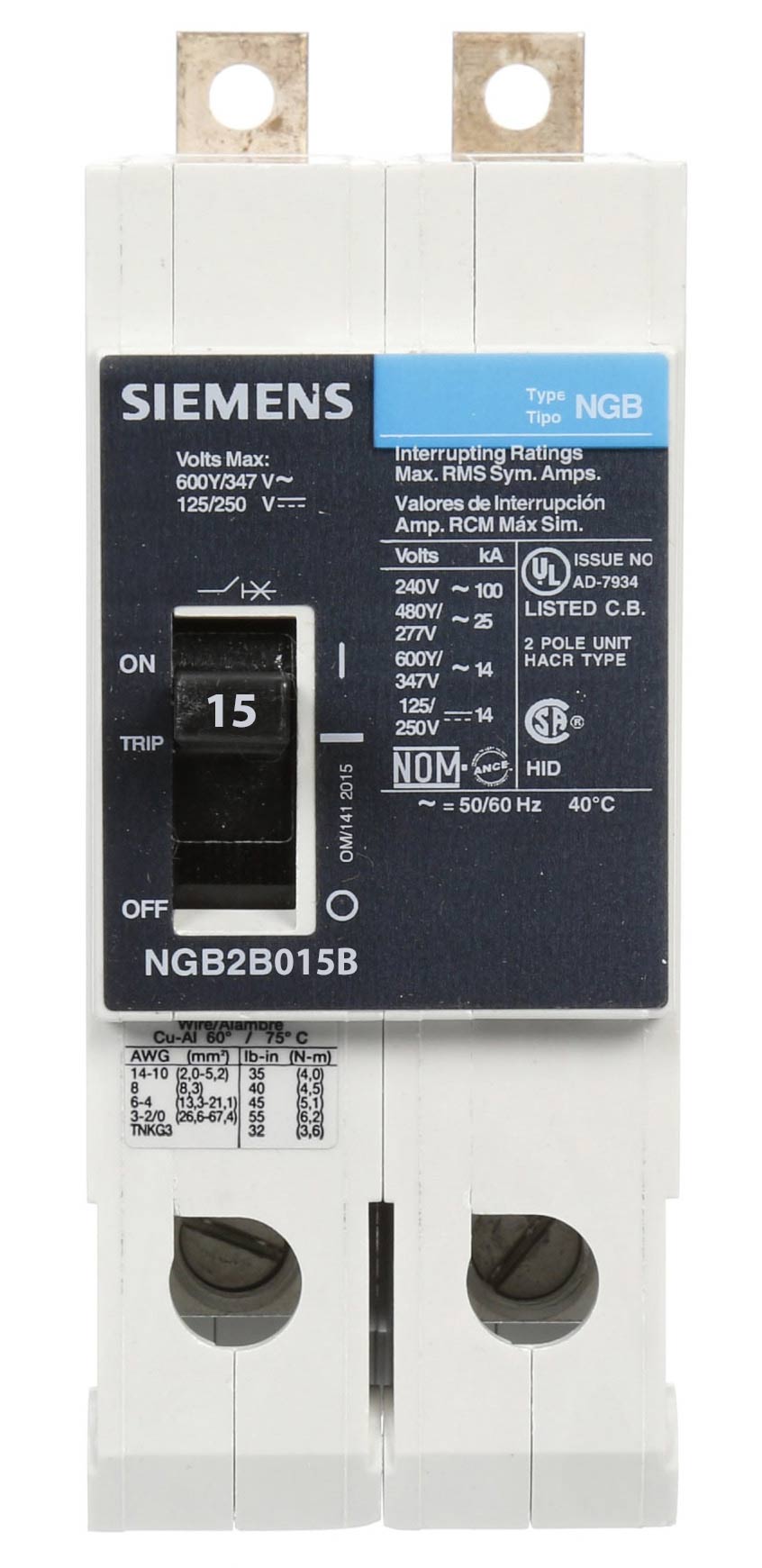

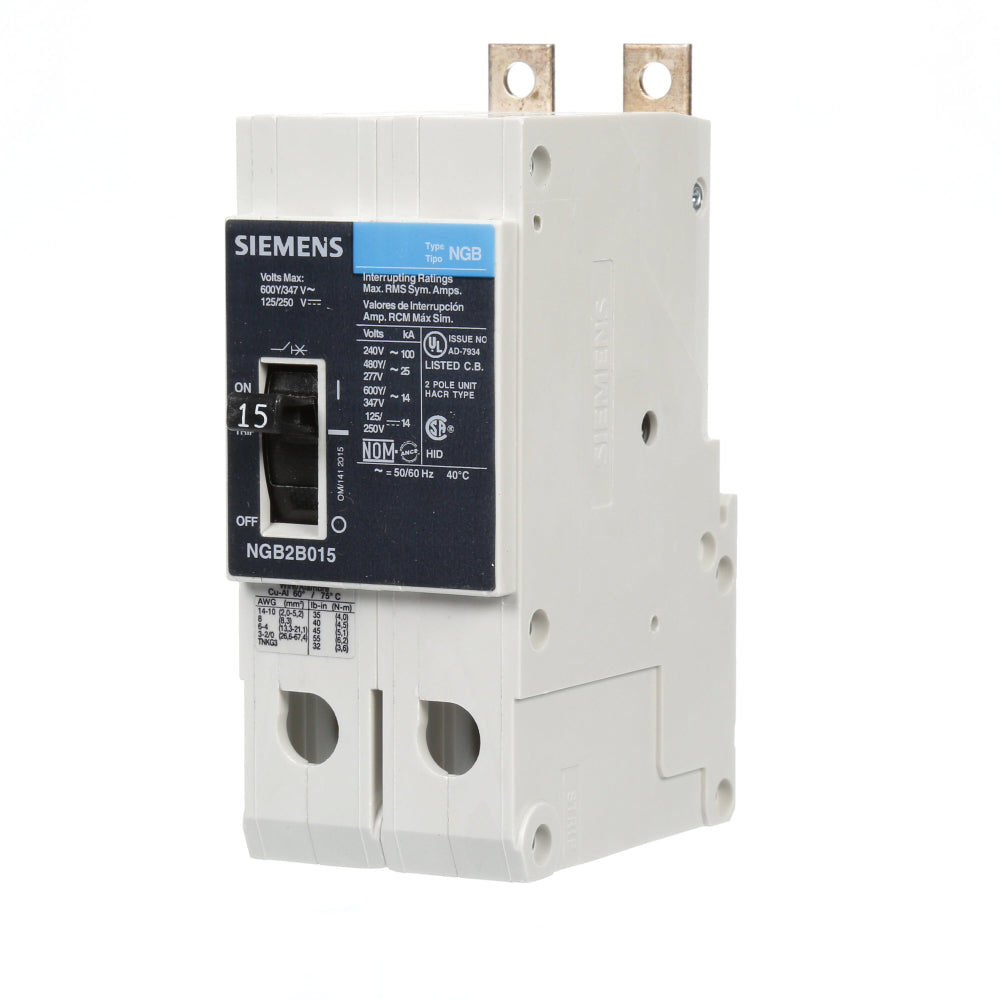

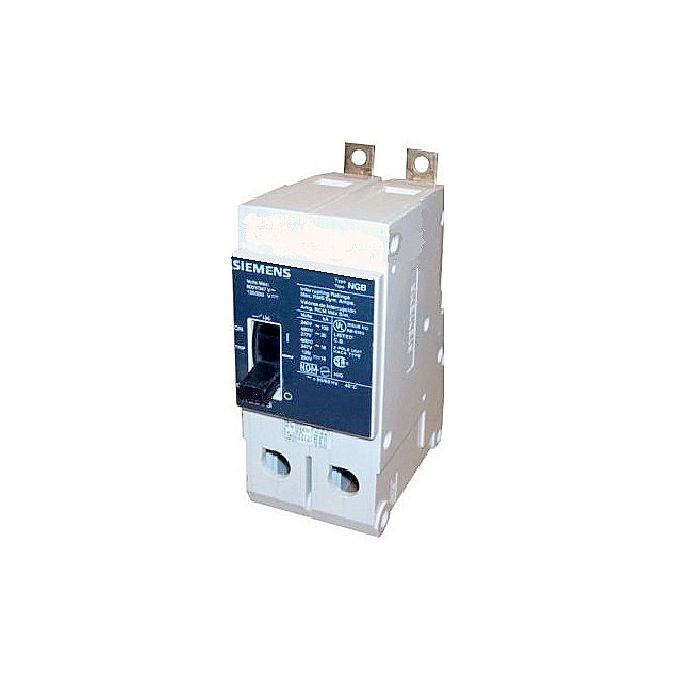

NGB2B015B - Siemens NGB series molded case circuit breaker, 2 pole, 15A, thermal magnetic trip.
Siemens NGB2B015B is a type NGB low voltage molded case circuit breaker rated for 15A with bolt-on mounting, LI long-time and instantaneous trip functions, and load side lug terminals. Suitable for panelboard applications and reverse feed, it offers standard interrupting capacity including 25kA at 480Y/277V AC and 14kA at 600Y/347V AC, with maximum voltage of 600V AC.
Key Specifications
- Part Number: NGB2B015B
- Manufacturer: Siemens
- Frame/Series: NGB
- Poles: 2
- Amperage: 15A
- Voltage: 600Y/347V AC
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic (LI)
- Interrupt Rating: 25kA@480Y/277V; 14kA@600Y/347V
- Certification: UL489
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: NGB2B015B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGB
- Voltage : 600
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : GG Frame
- Temp Rating : -13¡F-158¡F
- Protection : Thermal Magnetic
Product Data
- UPC : 783643414105
- GTIN : 00783643414105
- Country of Origin : Mexico
- Weight : 1.889
- Certification : UL, IEC
