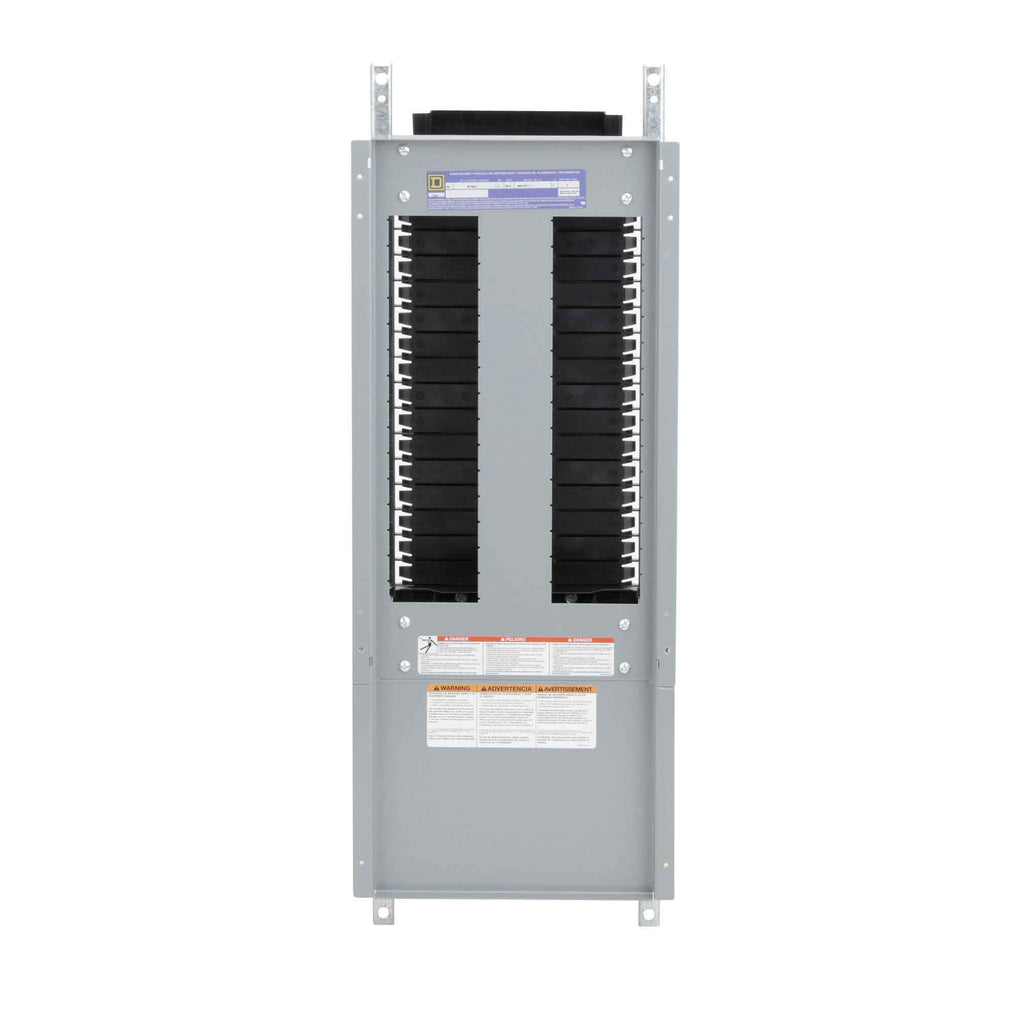

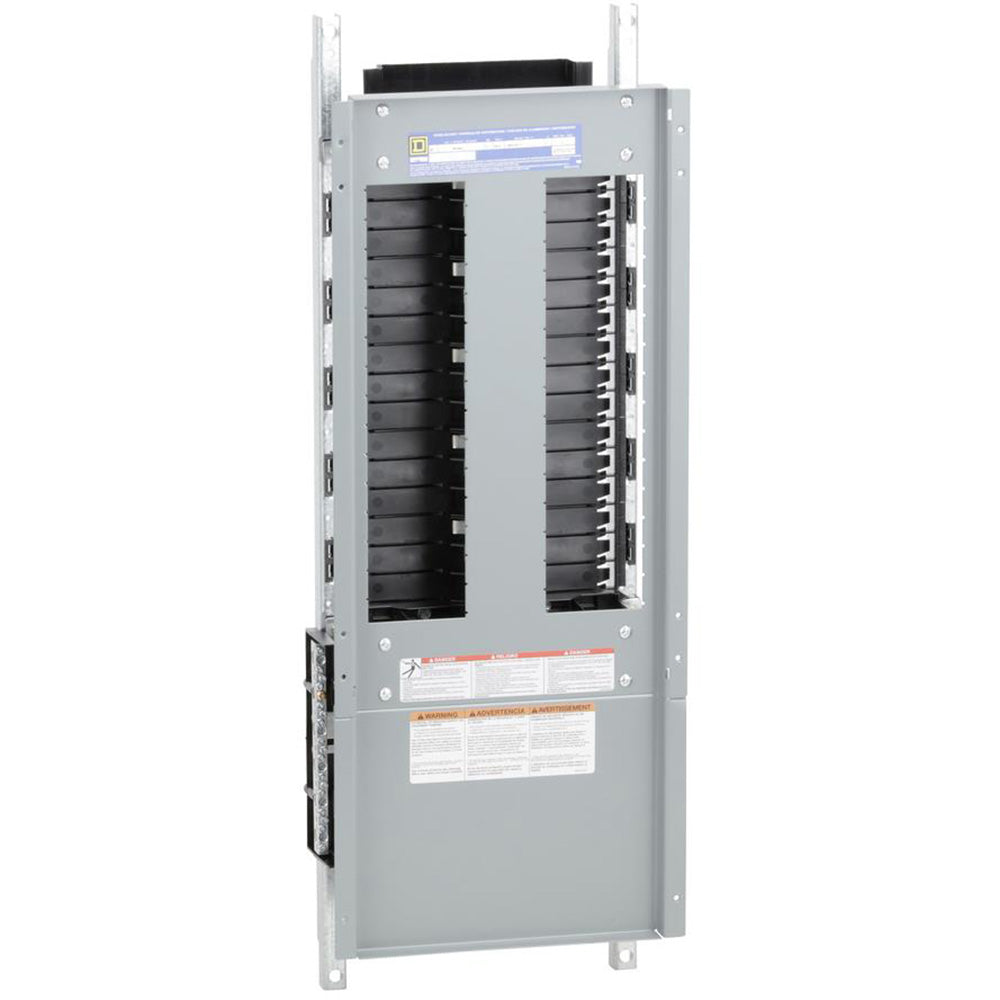

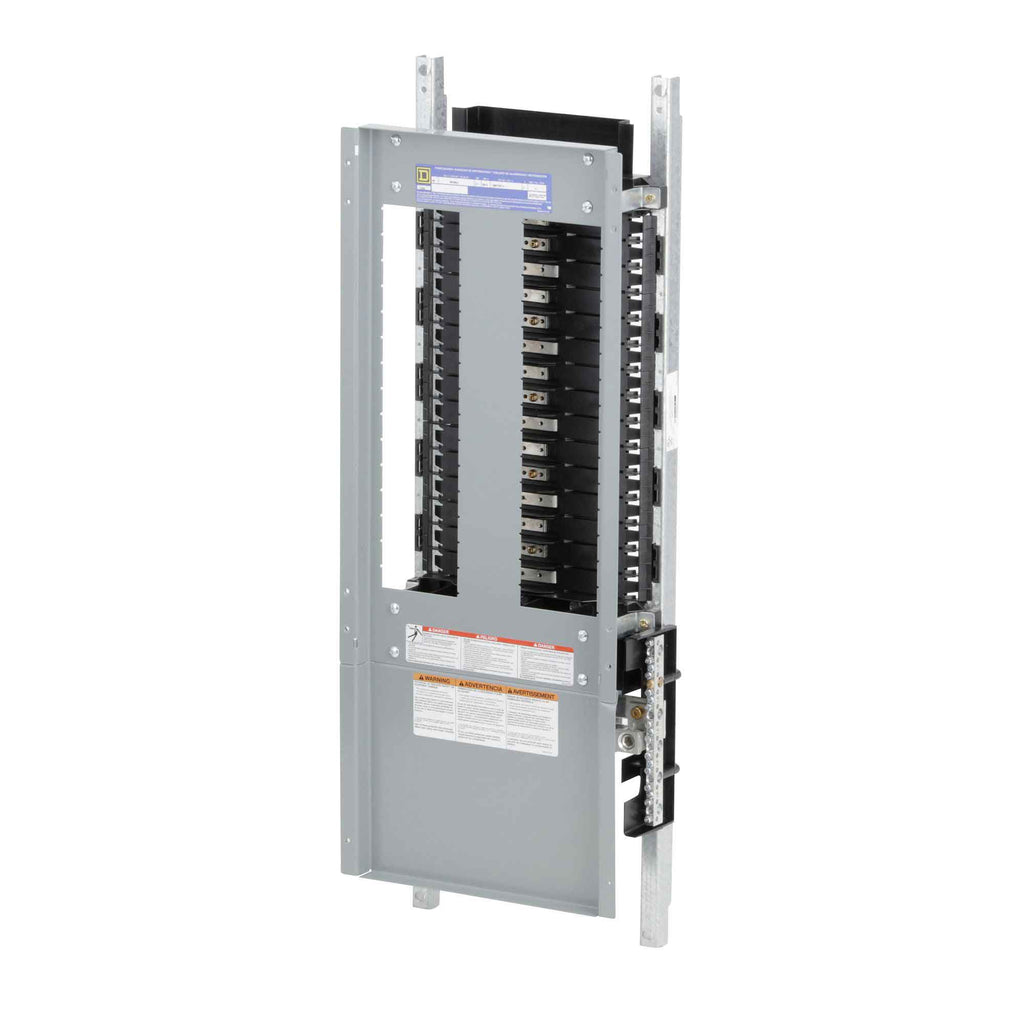

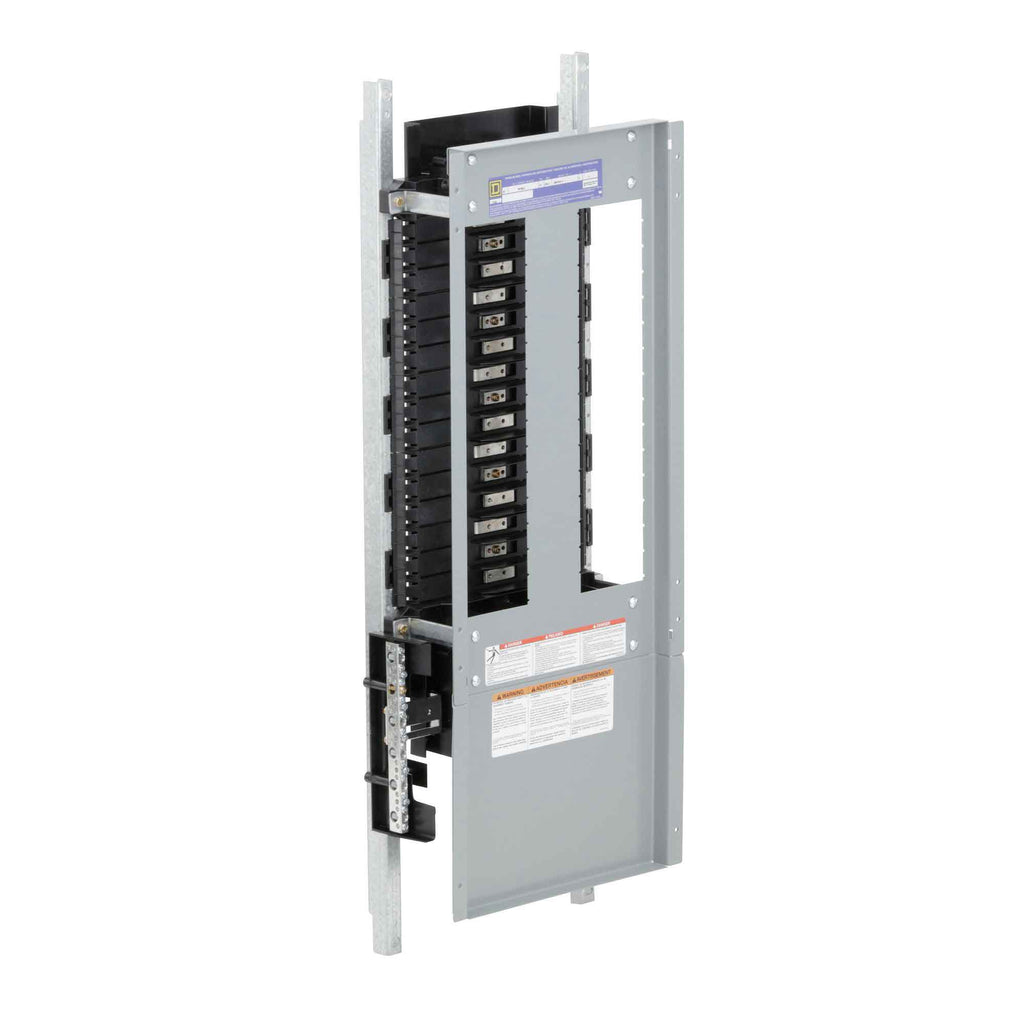

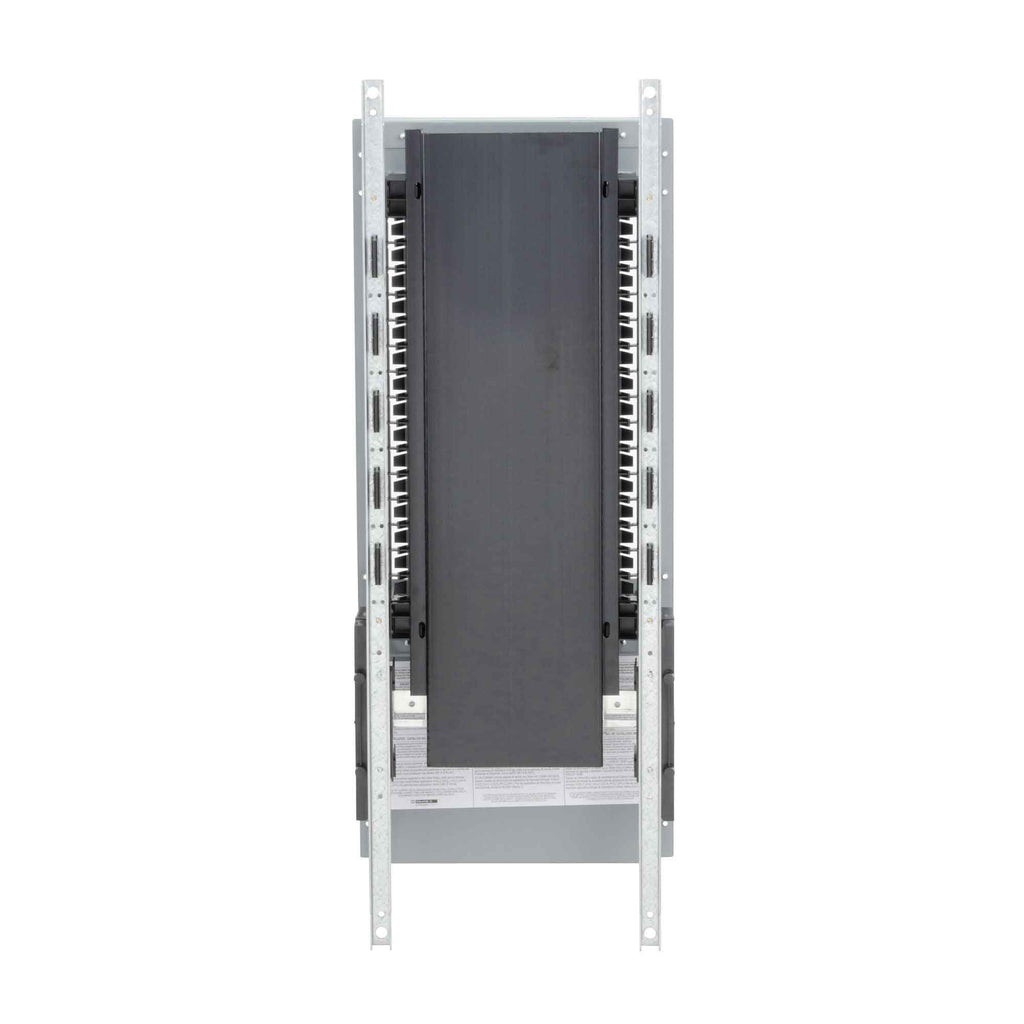

NF430L2 - Square D 250A 600Y/347VAC 3-Phase 4-Wire 30-Pole Panelboard Interior Aluminum Bus

NF430L2

NF430L2 is a Square D panelboard interior designed for 250A main lug applications with 30 pole spaces and aluminum bus bars.This panelboard interior supports a 3-phase, 4-wire system rated up to 600Y/347VAC and features a 65 kA interrupt rating. It is field convertible for top or bottom feed and accepts bolt-on EDB, EDG, and EDJ branch circuit breakers. The unit is UL listed and CSA certified, suitable for commercial and industrial distribution applications. It includes 100% rated neutrals standard with options for 200% rated neutrals and supports aluminum or copper wiring.

Key Specifications
• Amperage: 250A main lugs
• Voltage Rating: 600Y/347 VAC max
• Poles/Spaces: 30 pole spaces
• Phases: 3-phase, 4-wire system
• Bus Material: Aluminum
• Interrupt Rating: 65 kA
• Mounting Type: Field convertible top or bottom feed
• Compatible Breakers: EDB, EDG, EDJ bolt-on breakers
• Certifications: UL listed, CSA certified
• Neutral Rating: 100% standard, field installable 200% rated kits
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NF430L2
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Distribution Equipment
• Item Subcategory : Power Distribution
• Section : Distribution Panels
• Family : NF Series
• Voltage : 480Y/277 480Y/277 , 600Y/347

Product Data

• UPC : 785901871477
• GTIN : 785901871477
• Country of Origin : Mexico
• Dimensions : 20 in W x 5-3/4 in D x 50 in H 33 in H x 10-7/16 in W x 5-3/4 in D 50 in H x 20 in W x 5-3/4 in D
• Weight : 25 lb
• Certification : CSA C22.2, UL 67
