Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NEG3B050L

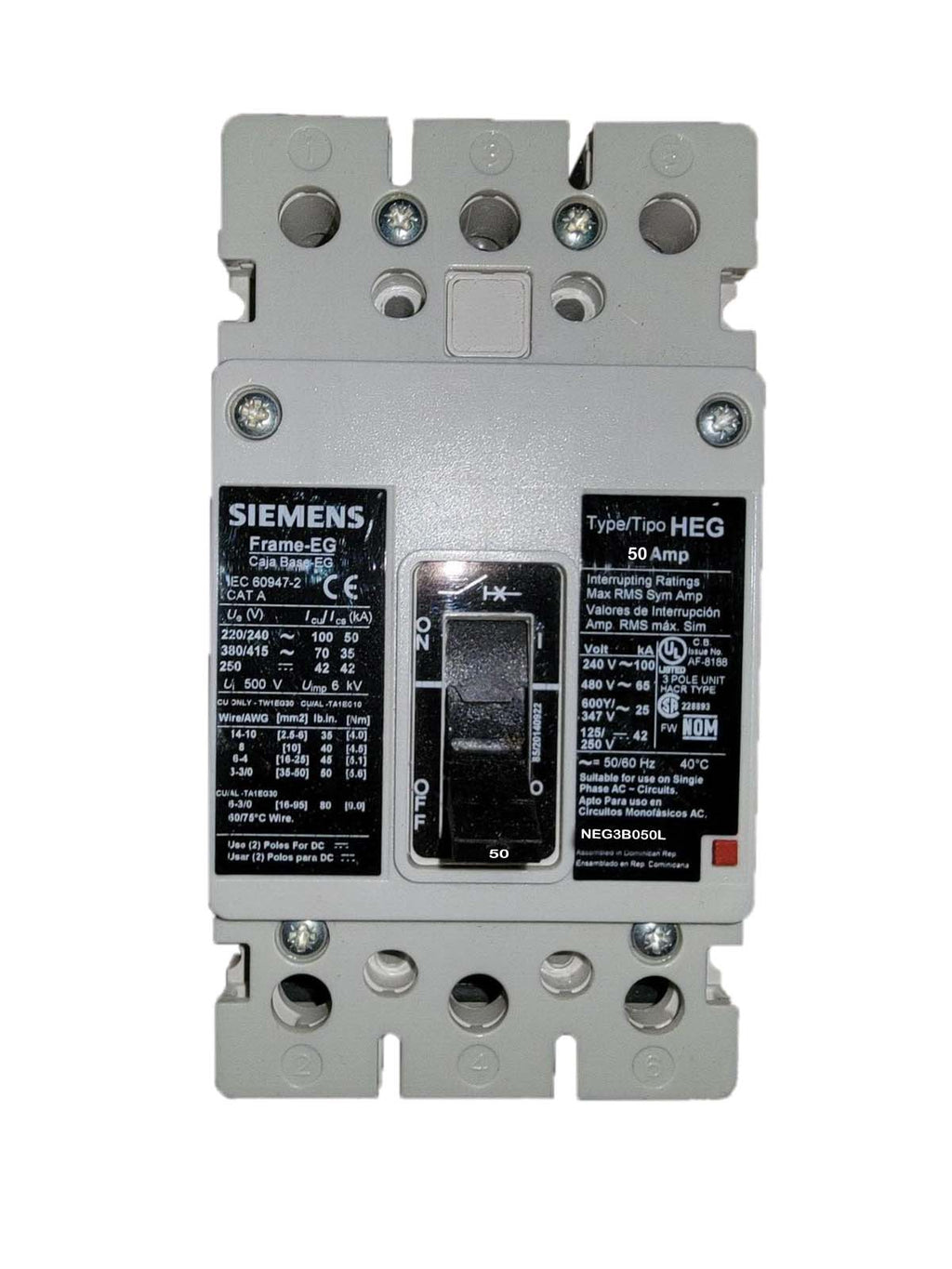

NEG3B050L is a Siemens 3 pole molded case circuit breaker rated for 50 amps and 600 volts AC, designed for reliable circuit protection in industrial and commercial applications.This Siemens NEG3B050L circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions. It has a 35kA interrupting rating at 480V, NEG frame type, and is suitable for feed-thru and reverse fed applications. The breaker includes line and load side lug terminals for versatile installation.
- Manufacturer: Siemens
- Part Number: NEG3B050L
- Amperage: 50 Amps
- Voltage: 600 VAC
- Poles: 3
- Frame Type: NEG
- Interrupt Rating: 35kA @ 480V
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Functions
- Mounting Type: Feed-Thru
- Suitable for Reverse Fed Applications
- Line and Load Side Lug Terminals
- Certifications: UL Listed (implied by manufacturer standard)
Specifications
- Part Number: NEG3B050L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NEG
- Voltage : 600
- Amperage : 50
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous
- Frame Size : EG Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643519879
- GTIN : 00783643519879
- Country of Origin : Mexico
- Weight : 3
- Certification : UL
- Wire Size : AWS 8 to AWS 1/0, Cu/Al
