Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NEG3B040L

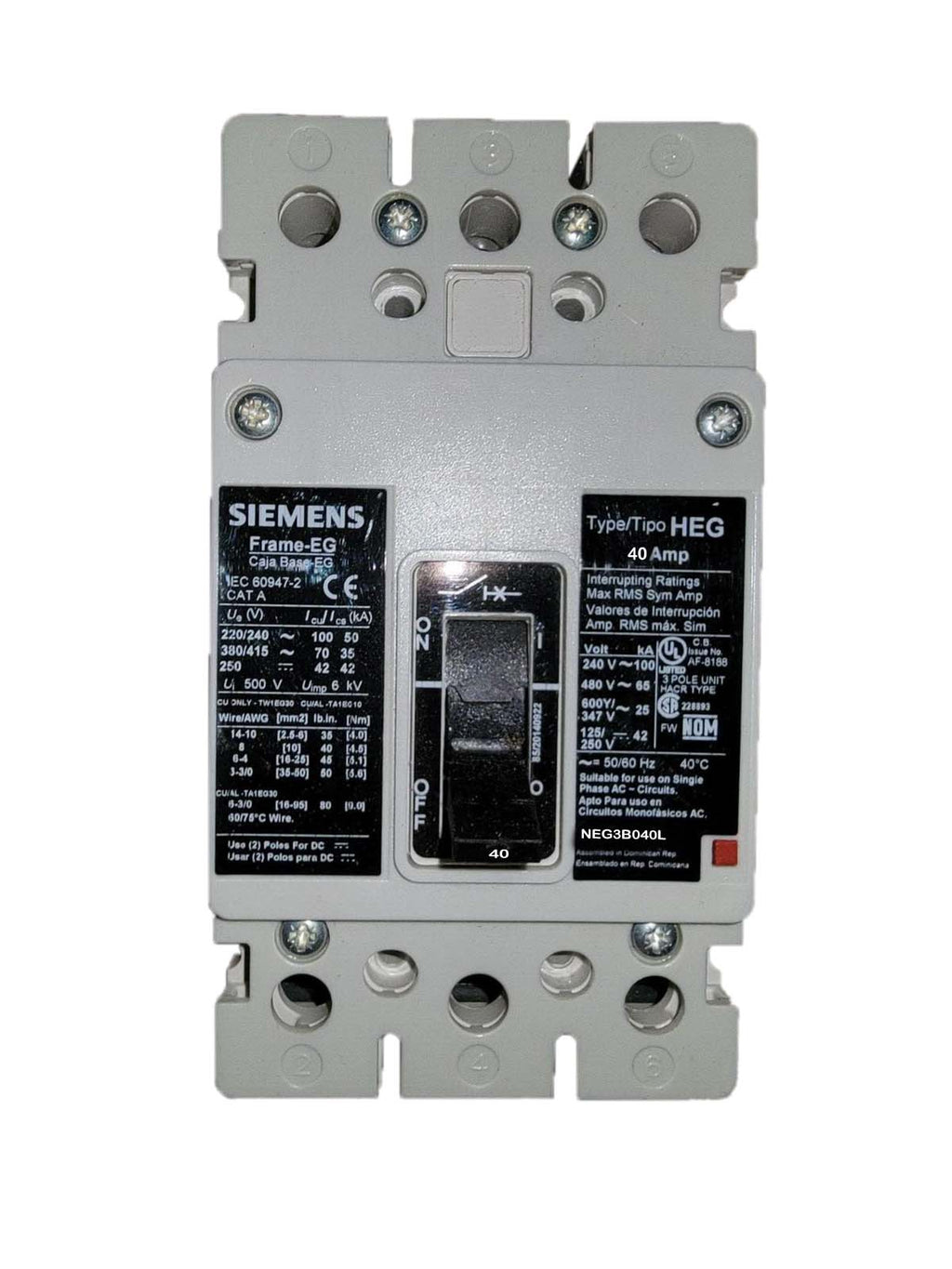

NEG3B040L is a Siemens 3 pole, 40 amp, 600 volt thermal magnetic circuit breaker designed for reliable power distribution protection.This molded case circuit breaker features a NEG frame with feed-thru design, suitable for 3-phase applications. It offers a 35kA interrupting rating at 480V and supports line and load side lug terminals. The breaker includes long time and instantaneous trip functions and is UL listed, making it suitable for reverse fed applications.
- Amperage: 40A
- Voltage: 600V AC
- Number of Poles: 3
- Frame Type: NEG
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 35kA @ 480V
- Mounting Type: Feed-Thru
- UL Listed
- Suitable for Reverse Fed Applications
- Line and Load Side Lug Terminals
Specifications
- Part Number: NEG3B040L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NEG
- Voltage : 600
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : EG Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643519855
- GTIN : 00783643519855
- Country of Origin : Mexico
- Weight : 3
- Wire Size : AWS 8 to AWS 1/0, Cu/Al
