Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NEG3B015L

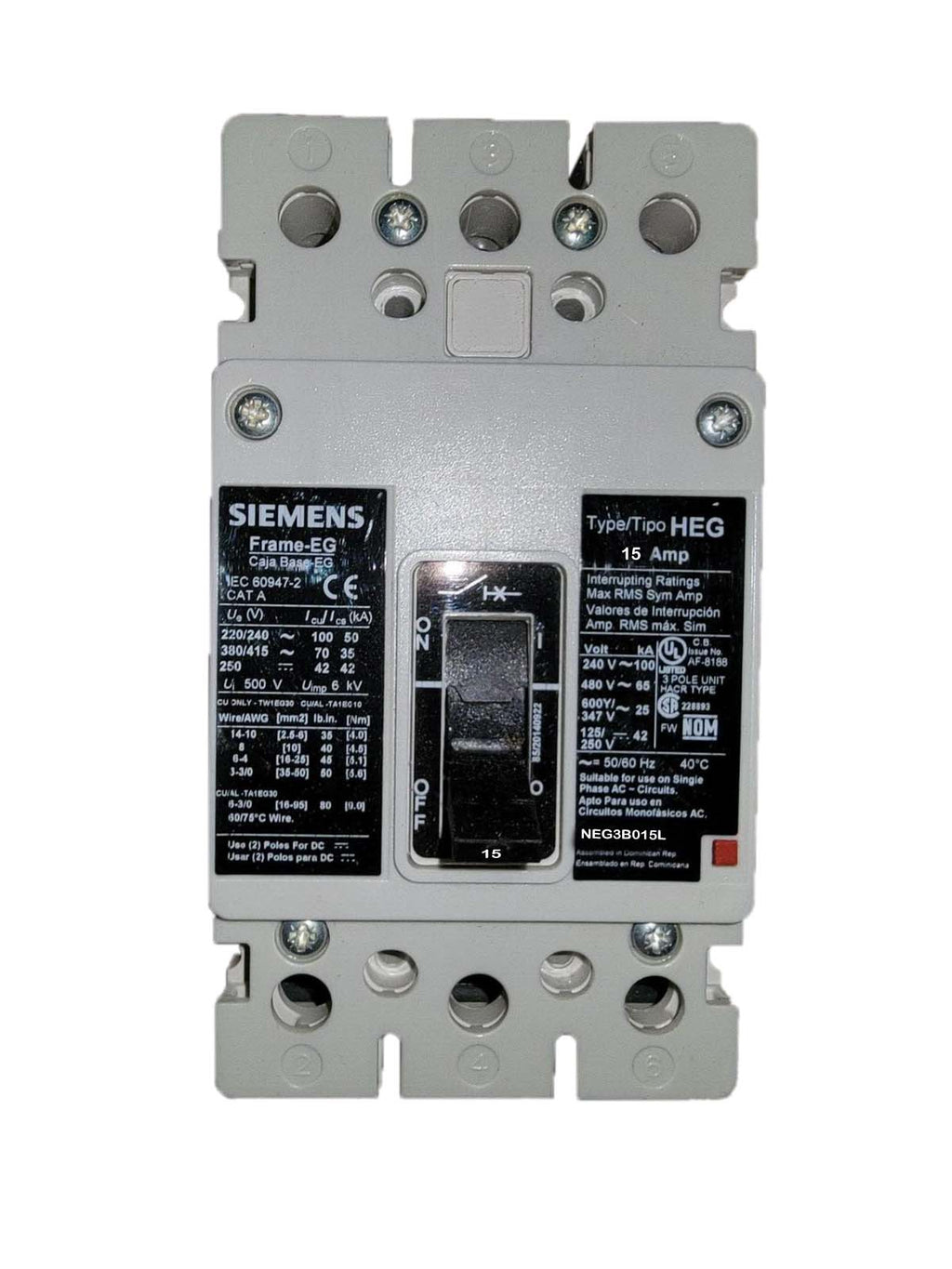

NEG3B015L is a Siemens 3 pole molded case circuit breaker rated for 15 amps and 600 volts AC, designed for reliable thermal-magnetic protection.The Siemens NEG3B015L circuit breaker features a NEG frame with a 35kA interrupting rating at 480V, feed-thru mounting, and line and load side lug terminals. It provides long time and instantaneous trip functions and is suitable for reverse fed applications, ensuring robust protection in three-phase electrical systems.
- Key Specifications
- Amperage: 15 Amps
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Frame Type: NEG
- Interrupt Rating: 35kA at 480V
- Trip Unit: Thermal-Magnetic
- Mounting Type: Feed-Thru
- Suitable for Reverse Fed Applications
- Line and Load Side Lug Terminals
- UL Listed
- 3 Phase Circuit Breaker
Specifications
- Part Number: NEG3B015L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 600
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783643519800
- GTIN : 00783644000000
- Country of Origin : Mexico
- Weight : 3
