Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NEB3B100B

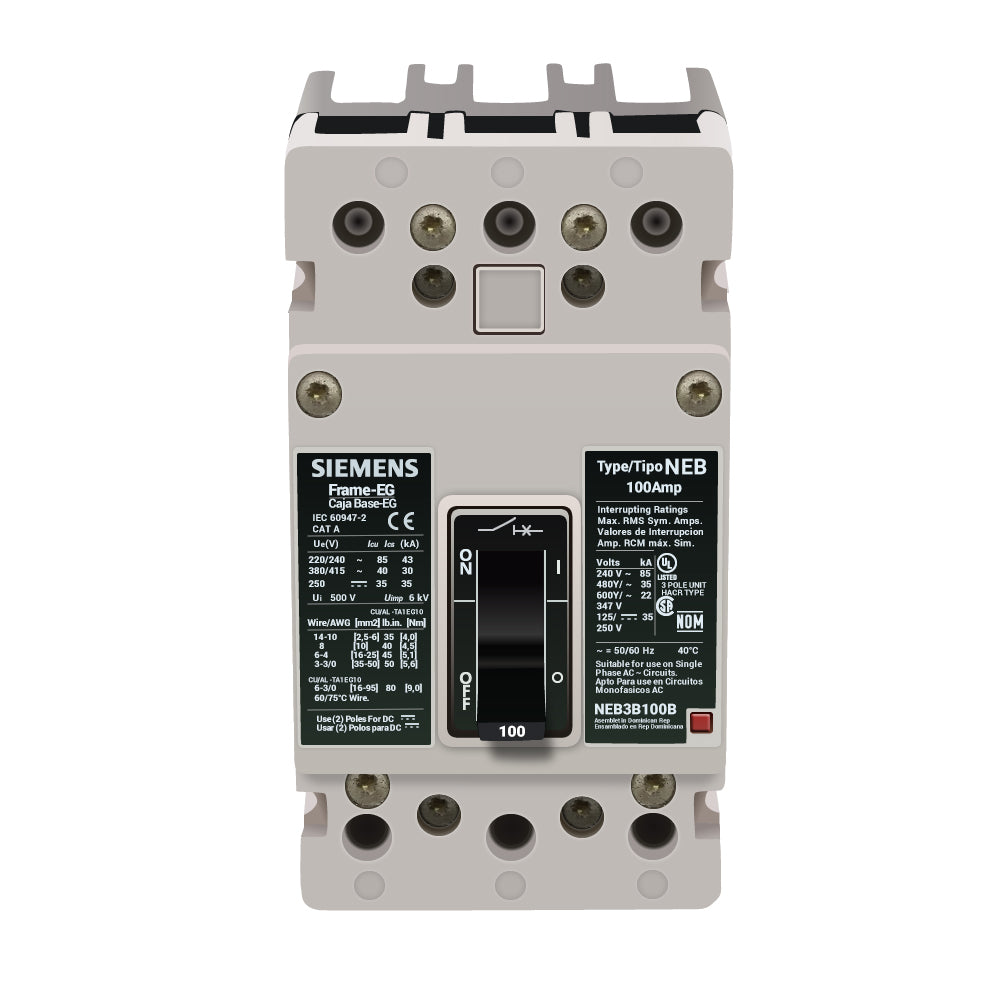

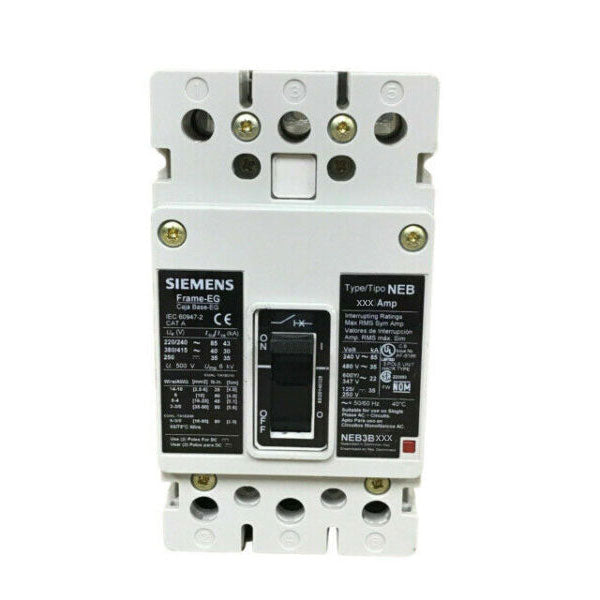

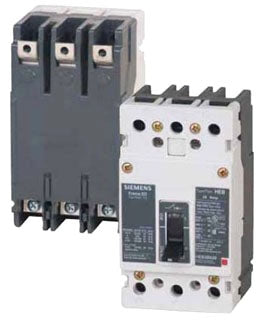

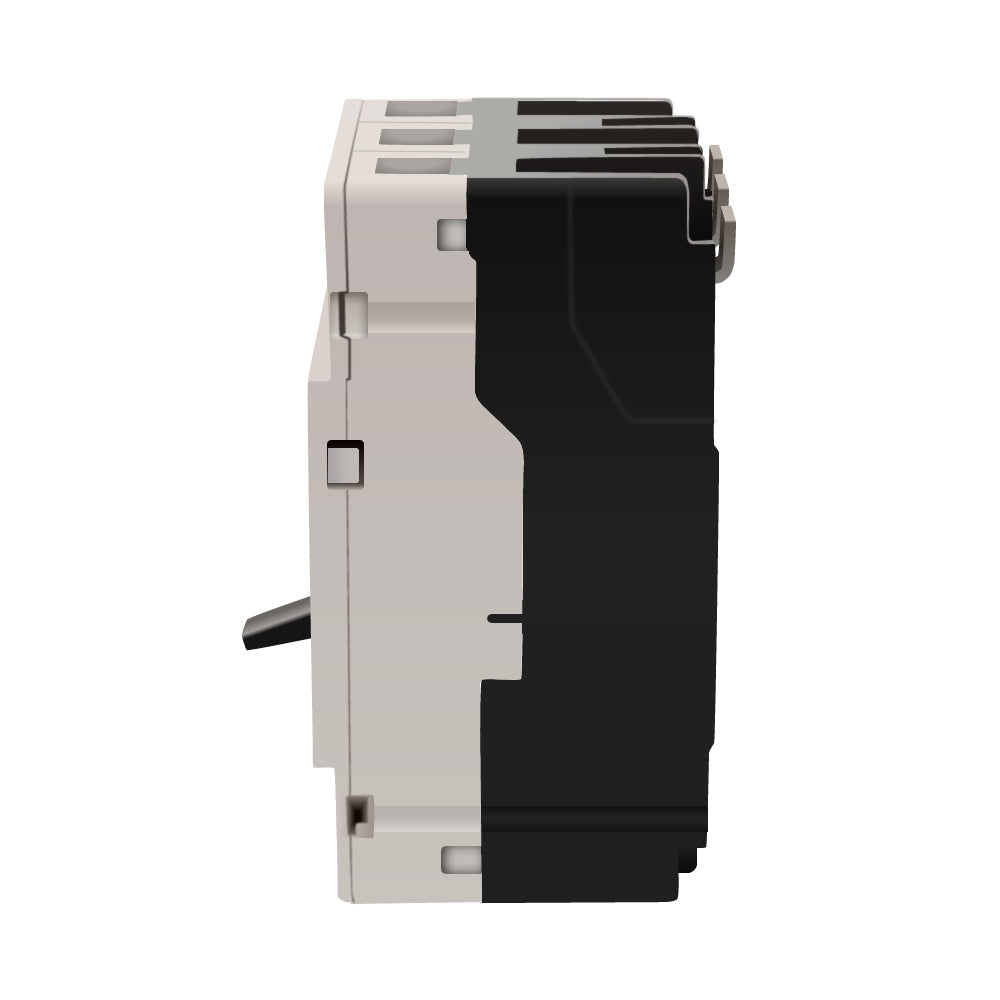

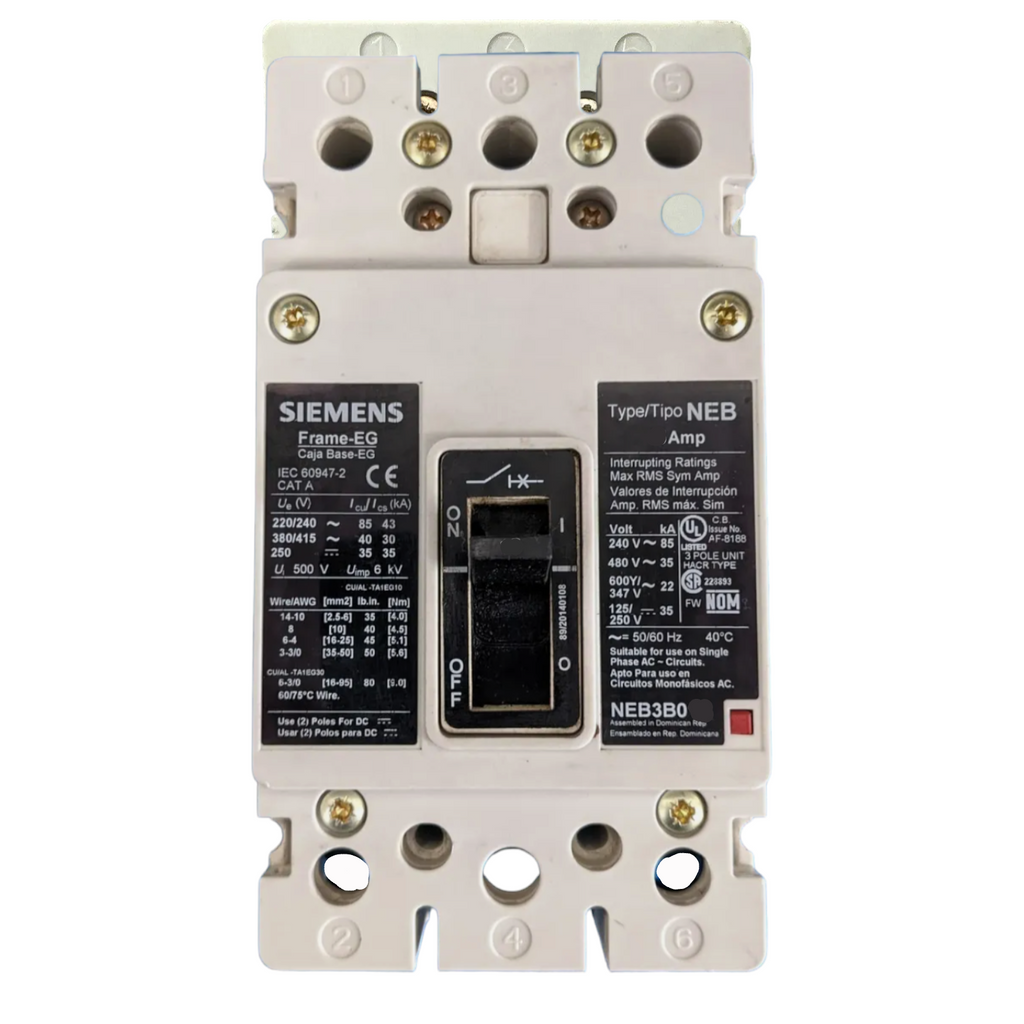

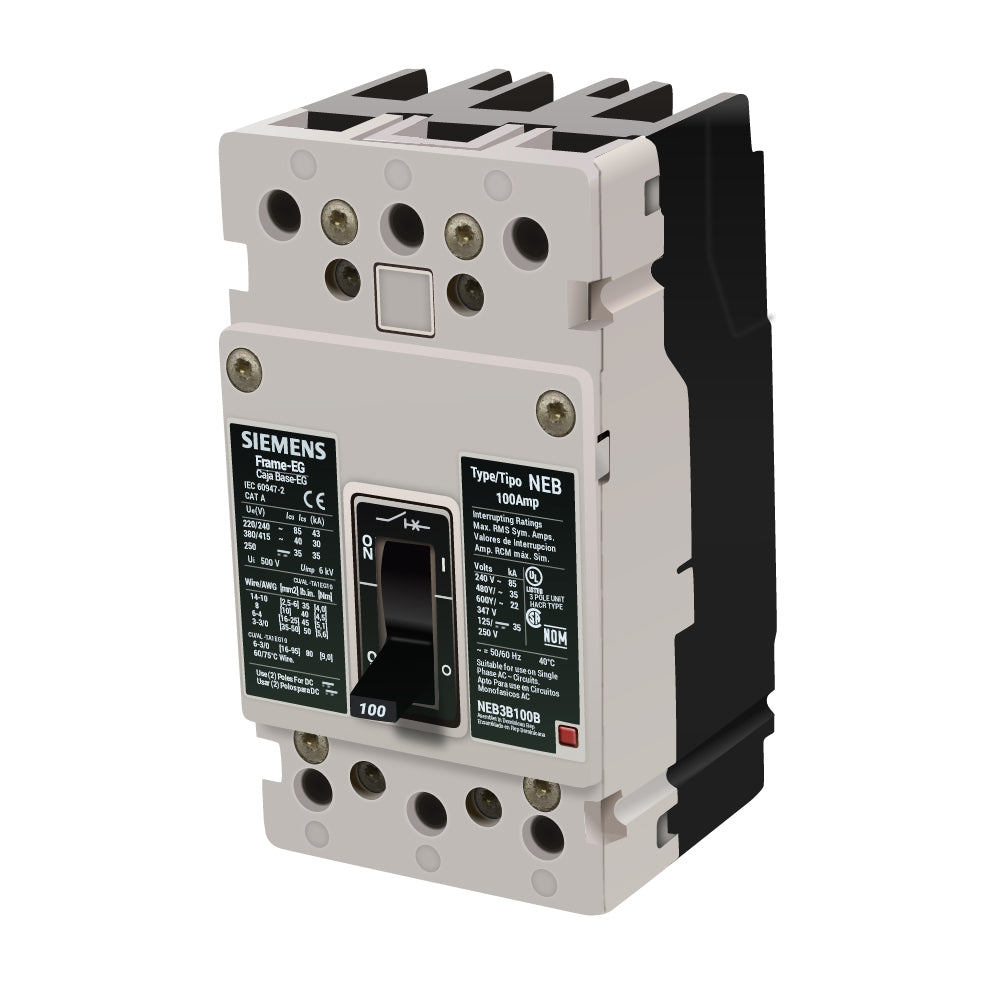

NEB3B100B is a Siemens 3-pole thermal magnetic circuit breaker designed for panelboard mounting with a 100 amp rating and 480 volt capacity.This molded case circuit breaker features a NEB frame with a standard interrupting rating of 35 kA at 480 VAC and 22 kA at 600Y/347 VAC. It operates at 50/60 Hz and supports voltages up to 600 VAC star and 125/250 VDC. The breaker includes load side lug terminals and is UL listed, suitable for low voltage applications with a temperature rating of 40°C. It is bolt-on mounted and provides reliable protection with a thermal-magnetic trip unit.
- Key Specifications
- Amperage: 100 Amp
- Voltage: 480 VAC (also rated for 600 VAC star, 347 VAC, 125/250 VDC)
- Poles: 3
- Interrupt Rating: 35 kA at 480 VAC, 22 kA at 600Y/347 VAC
- Frame/Series: NEB
- Trip Unit: Thermal Magnetic
- Mounting Type: Panelboard Bolt-On
- Temperature Rating: 40°C
- Certifications: UL Listed

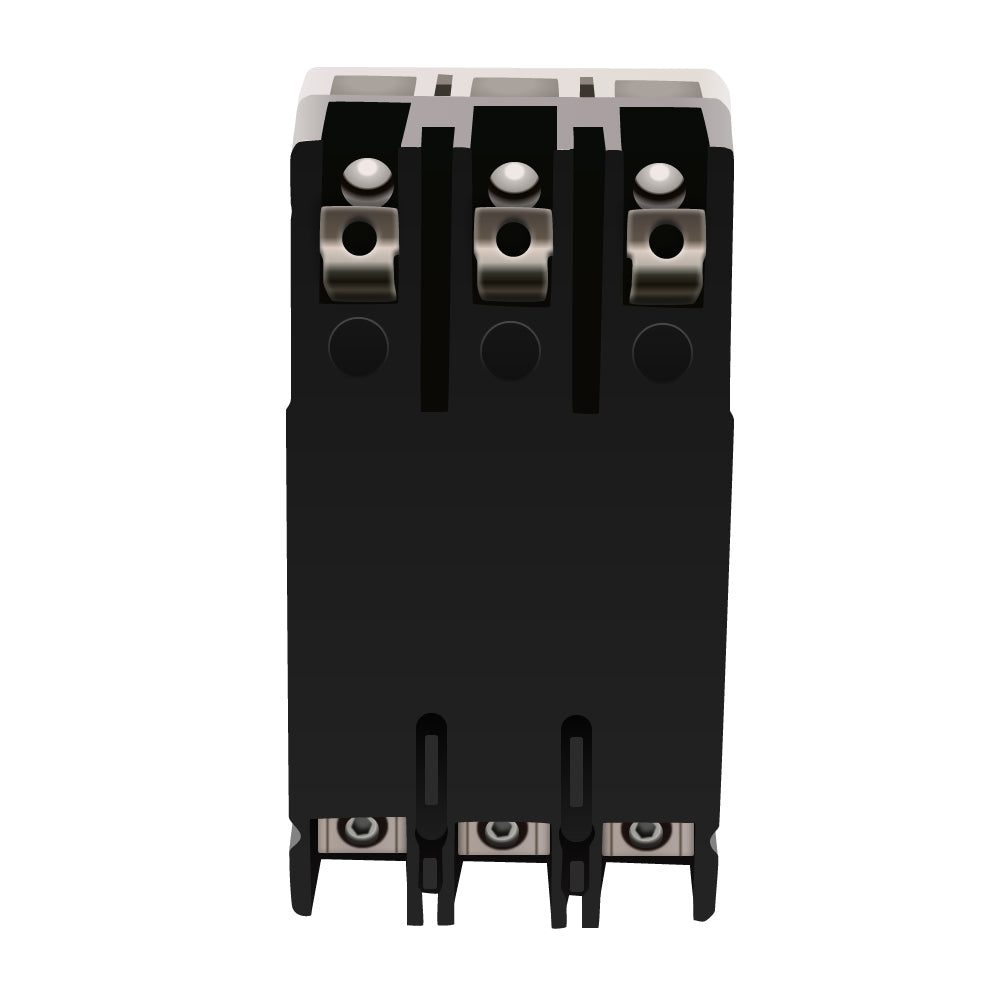

- Load Side Lug Terminals Included
- Part Number: NEB3B100B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : NEB Series
- Type : NEB
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- UPC : 783643558625
- GTIN : 00783643558625
- Country of Origin : Dominican Republic
- Weight : 1.257
