Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

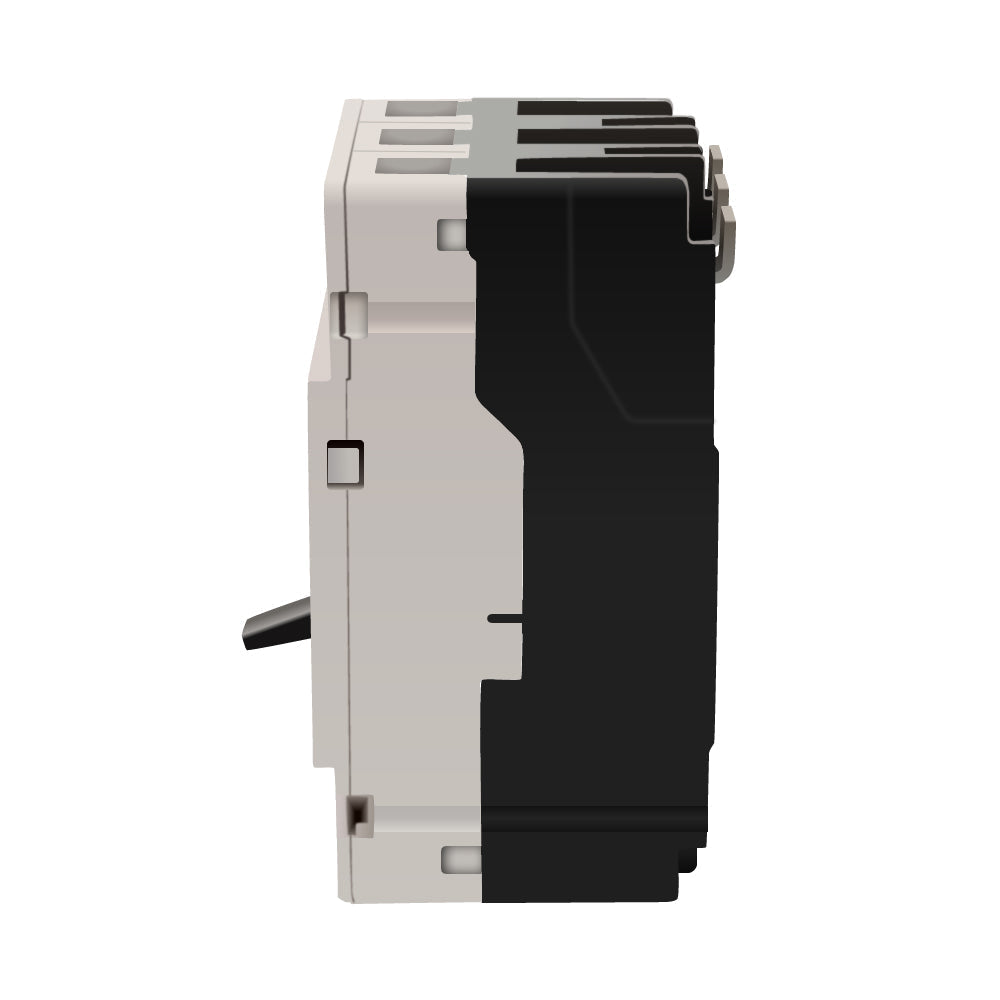

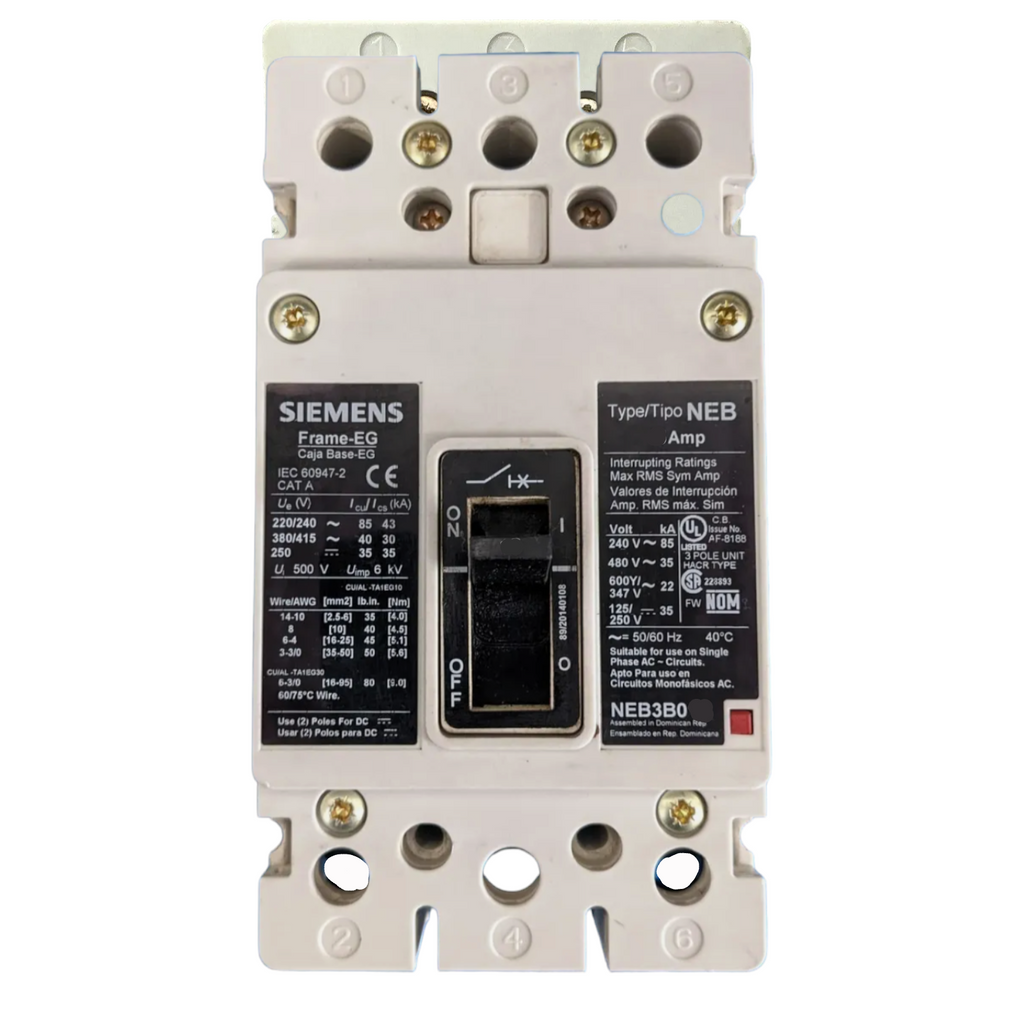

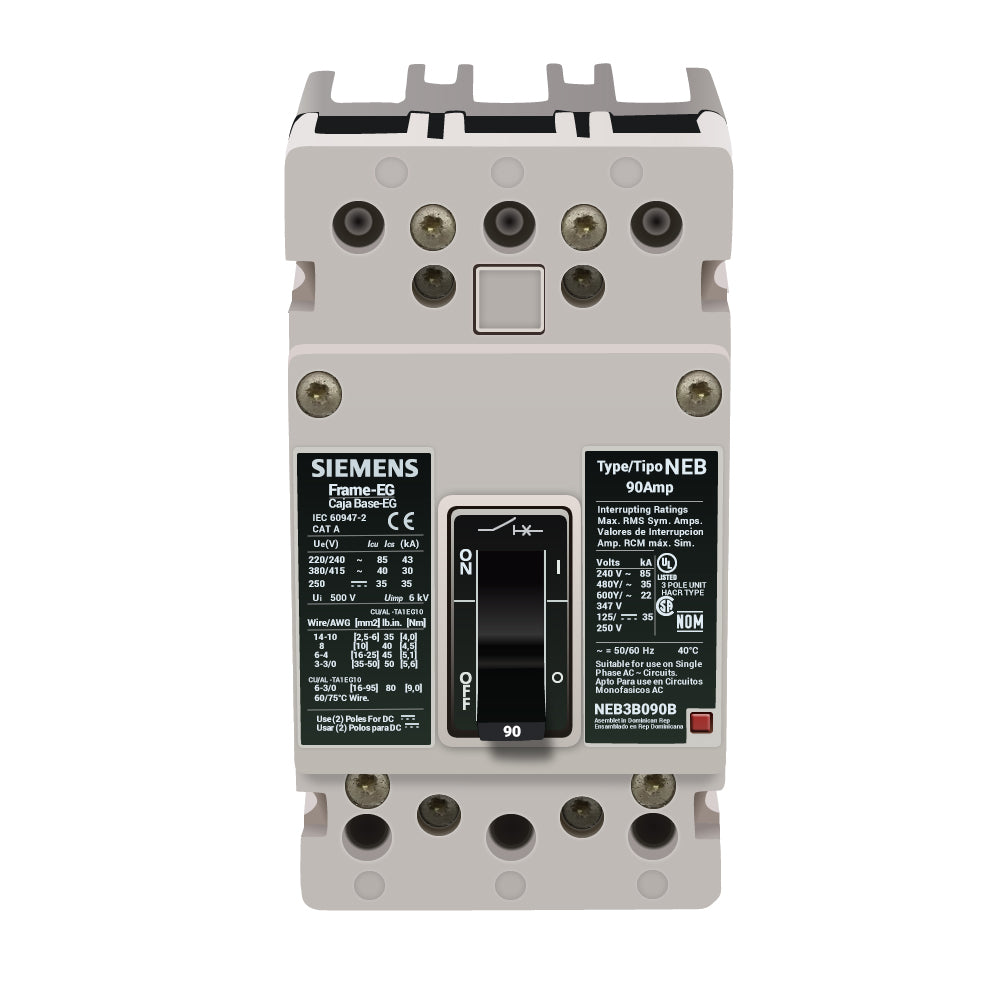

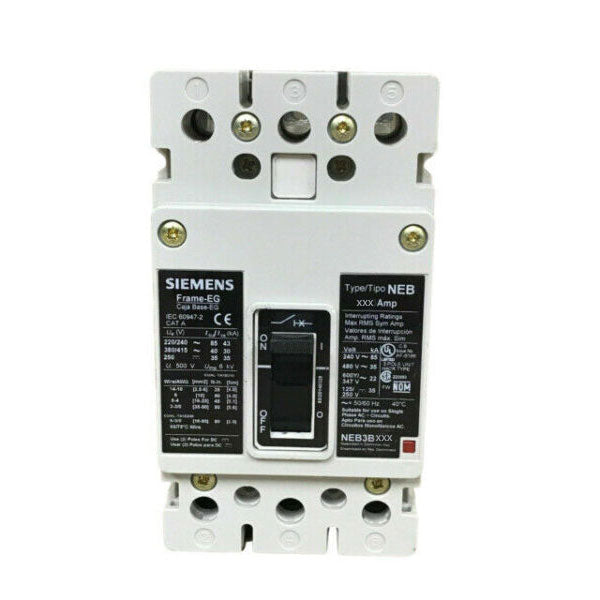

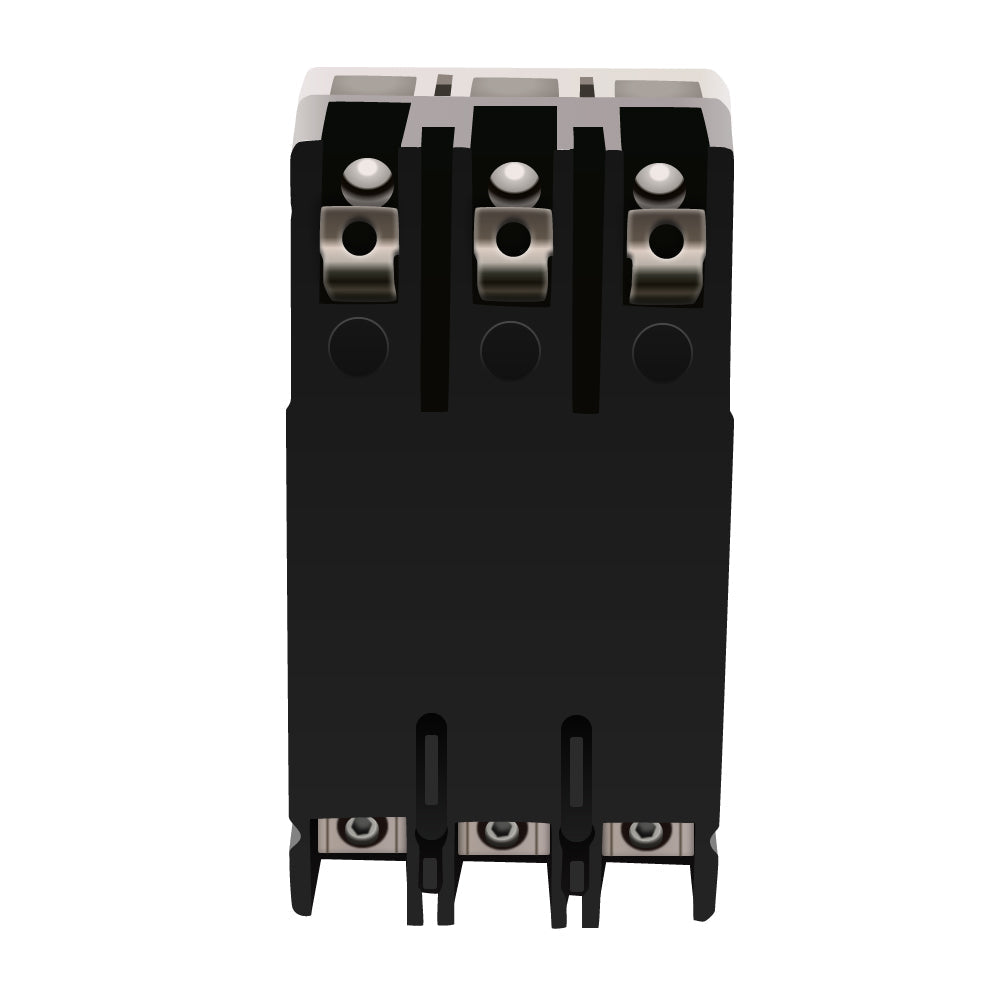

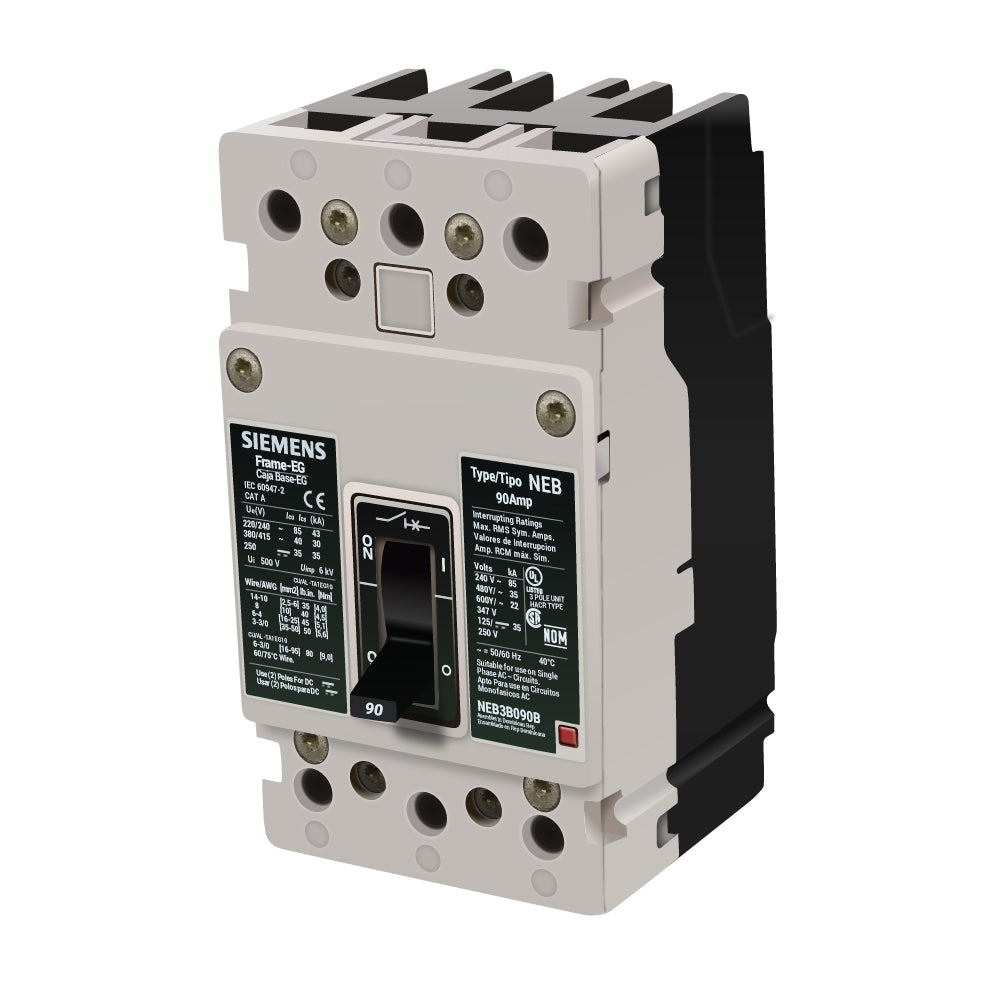

NEB3B090B
NEB3B090B is a Siemens 90 Amp, 3 pole, 600V molded case circuit breaker designed for reliable three-phase power distribution.
This NEB frame breaker features a compact, bolt-on design with built-in thermal magnetic trip protection, long-time and instantaneous trip functions, and load side lug terminals for secure connections. It is engineered for easy installation and dependable performance in commercial and industrial applications.
-
Key Specifications
- Part Number: NEB3B090B
- Manufacturer: Siemens
- Amperage: 90A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 35kAIC @ 480V, 22kAIC @ 347V
- Series/Frame: NEB
- Trip Unit: Thermal Magnetic
- Certifications: Standard interrupting, 40°C ambient
- Connection: Load side lug terminals
- Dimensions: 13.97 cm H x 7.62 cm L x 7.62 cm W
- Weight: 0.57 kg
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: NEB3B090B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : NEB Series
- Type : NEB
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783643558618
- GTIN : 00783643558618
- Country of Origin : Dominican Republic
- Weight : 1.257
