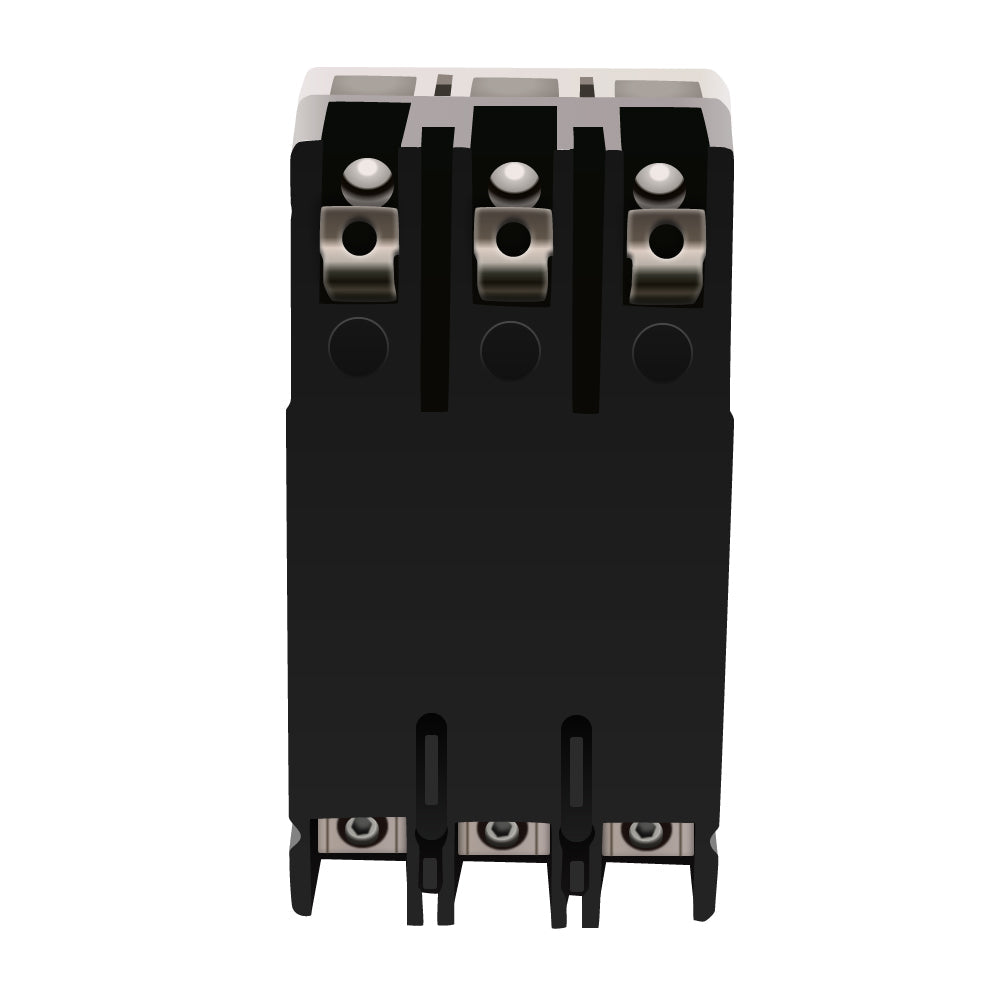

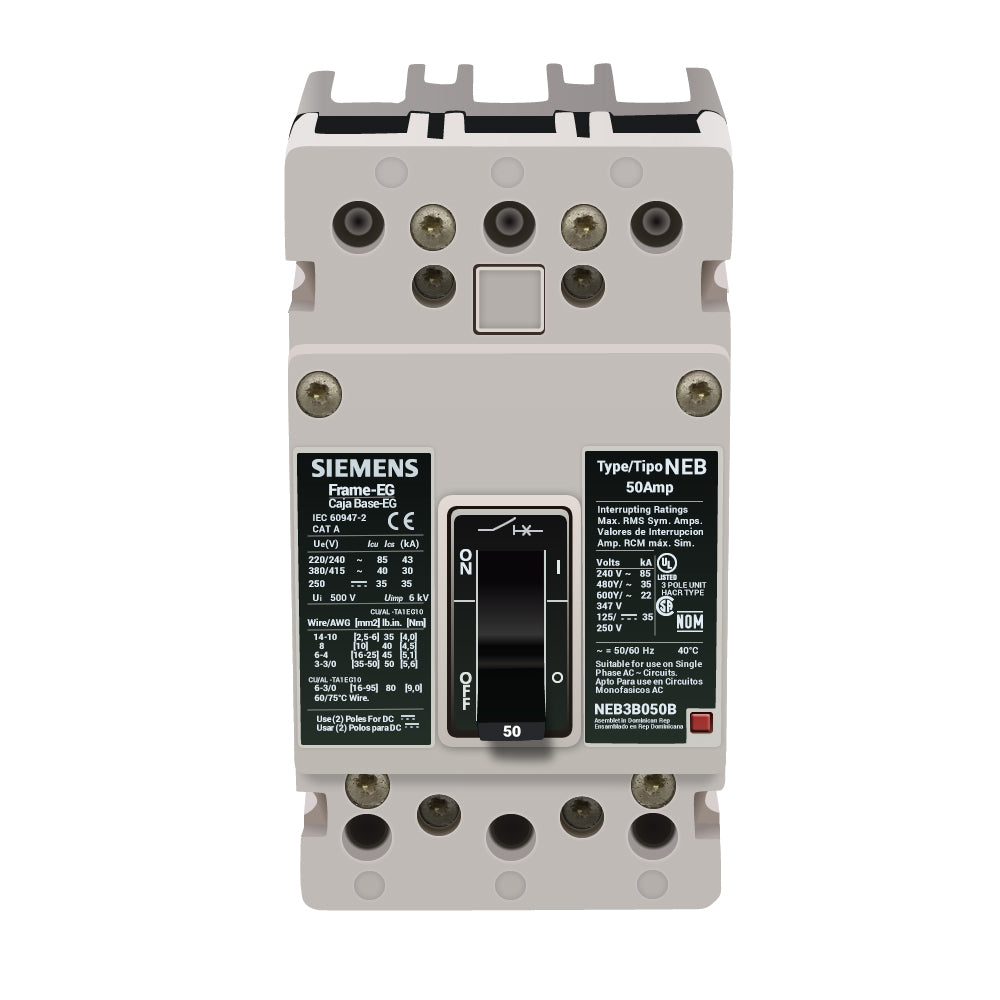

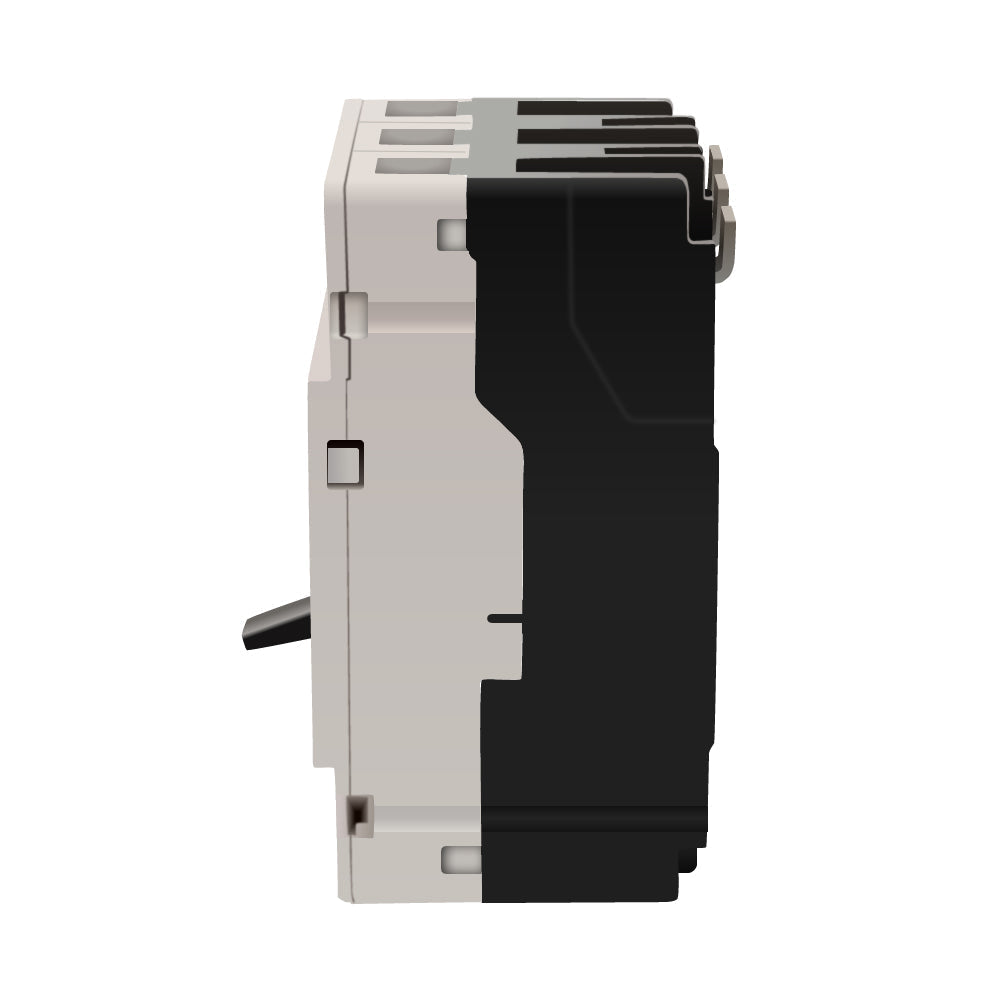

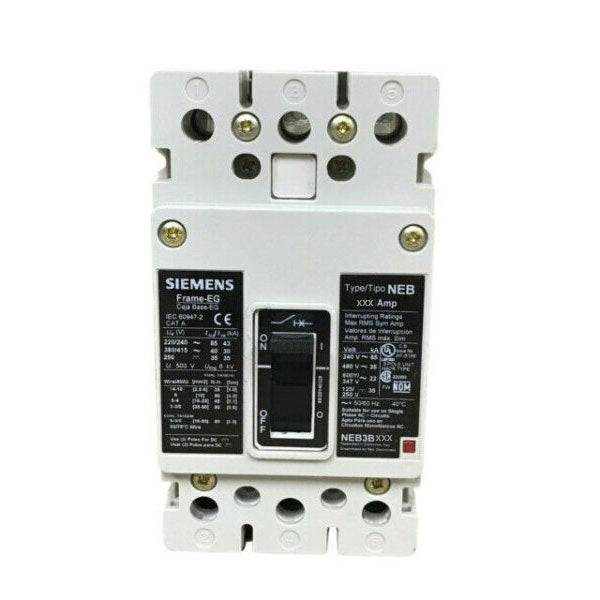

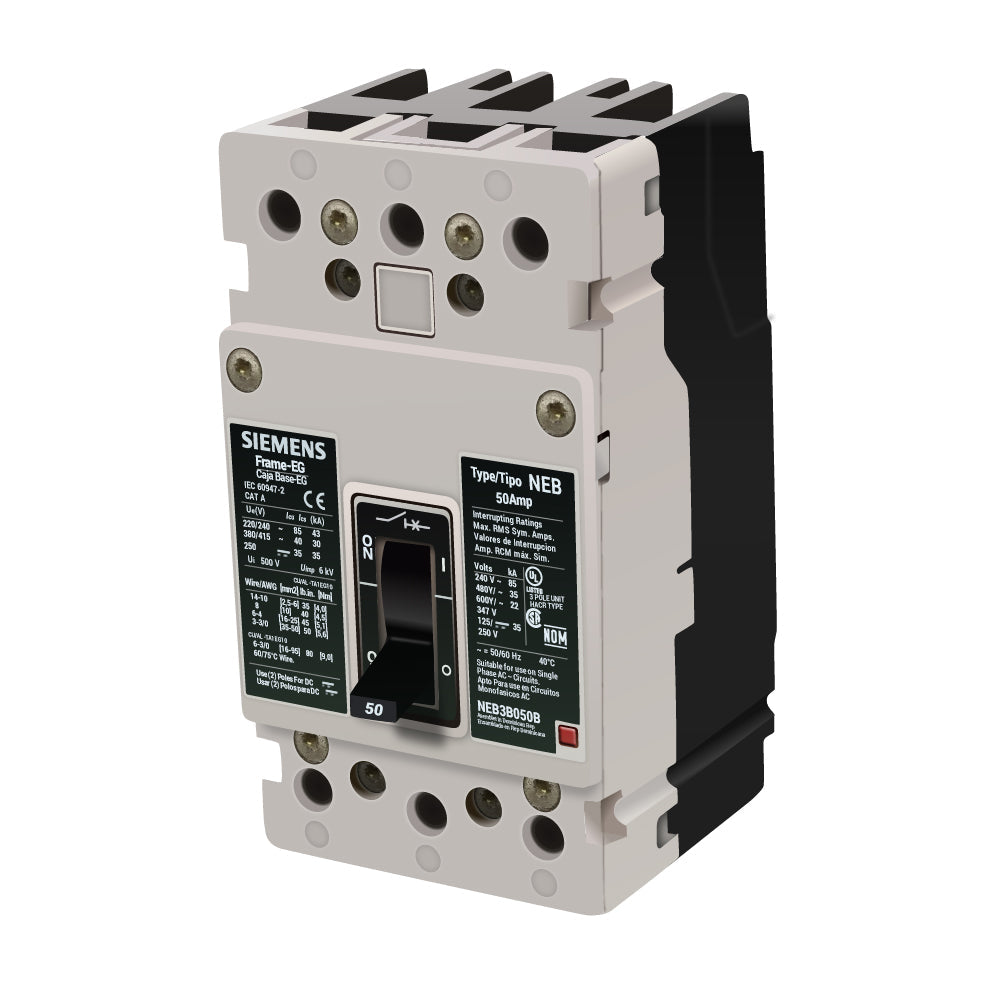

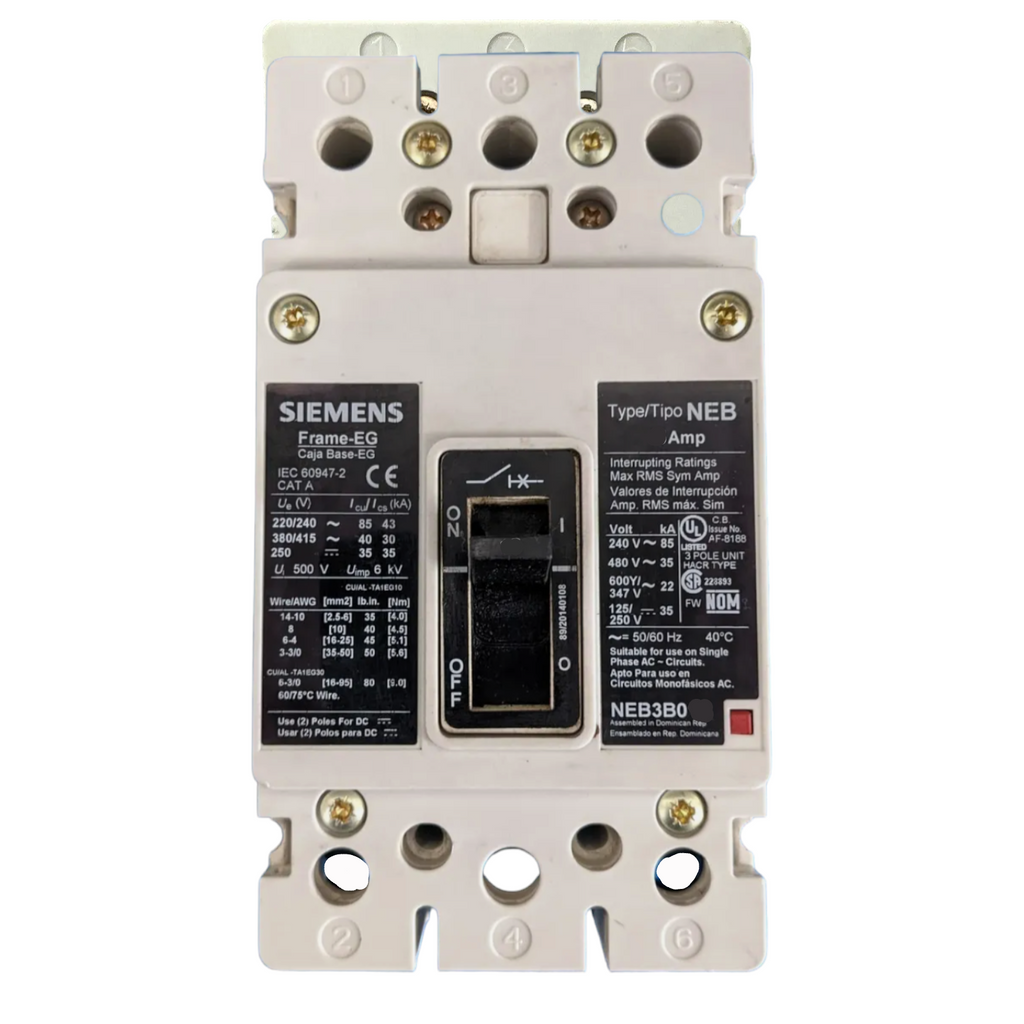

NEB3B050B - Siemens 50A 600V 3 Pole Bolt-On Circuit Breaker 35kA@480V NEB Frame

NEB3B050B

NEB3B050B is a Siemens 3 pole, 50 amp, 600 volt bolt-on circuit breaker with a 35kA interrupt rating at 480V and NEB frame type.NEB3B050B features thermal magnetic protection with long-time and instantaneous trip functions, designed for panelboard mounting with load side lug terminals. It is UL listed and suitable for 3-phase AC applications with a standard breaking capacity of 35kA at 480V and 22kA at 600Y/347V.

• Amperage: 50A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 35kA at 480V, 22kA at 600Y/347V
• Frame/Series: NEB
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Phase: 3
• UL Listed
• Load Side Lug Terminals
• Dimensions: Approx. 3" x 5.5" x 3"
• Weight: Approx. 1.26 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NEB3B050B
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : NEB Series
• Type : NEB
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643558571
• GTIN : 00783643558571
• Country of Origin : Dominican Republic
• Weight : 1.257
• Wire Size : AWS 8 to AWS 1/0, Cu/Al
