Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NEB3B040B

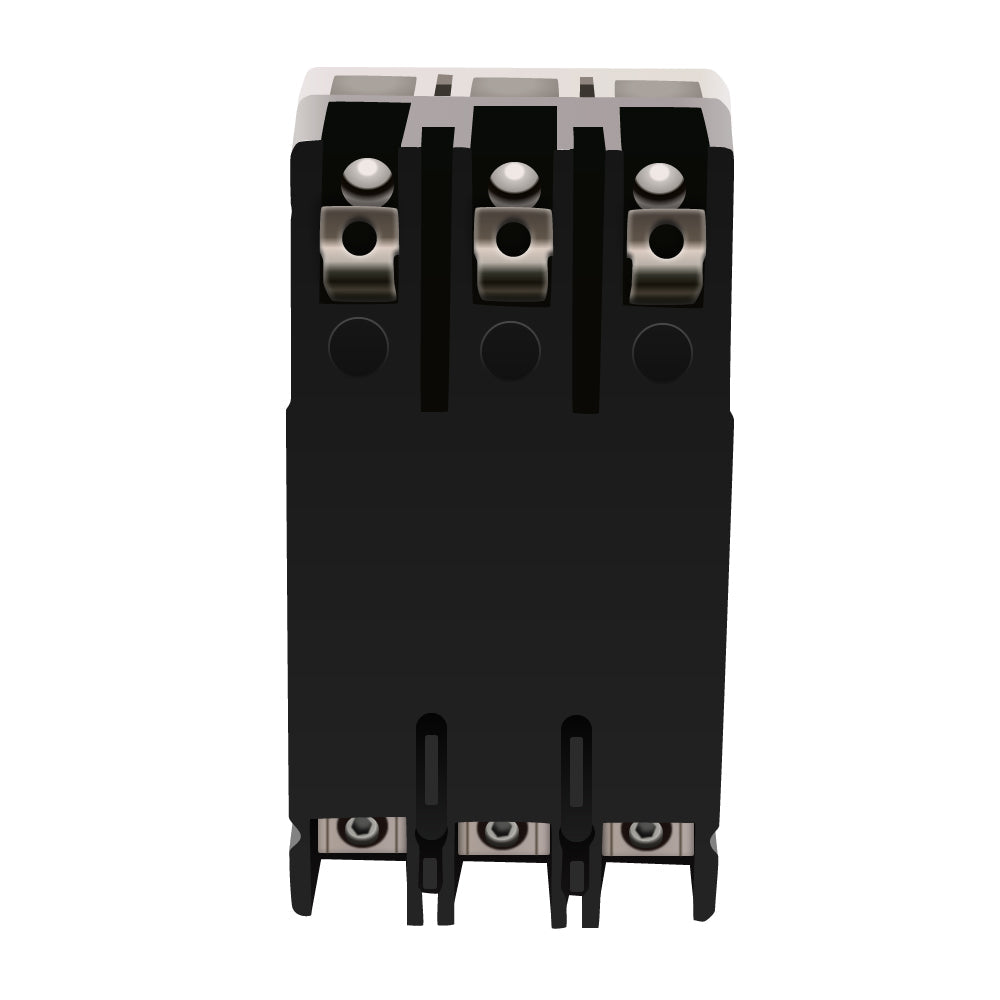

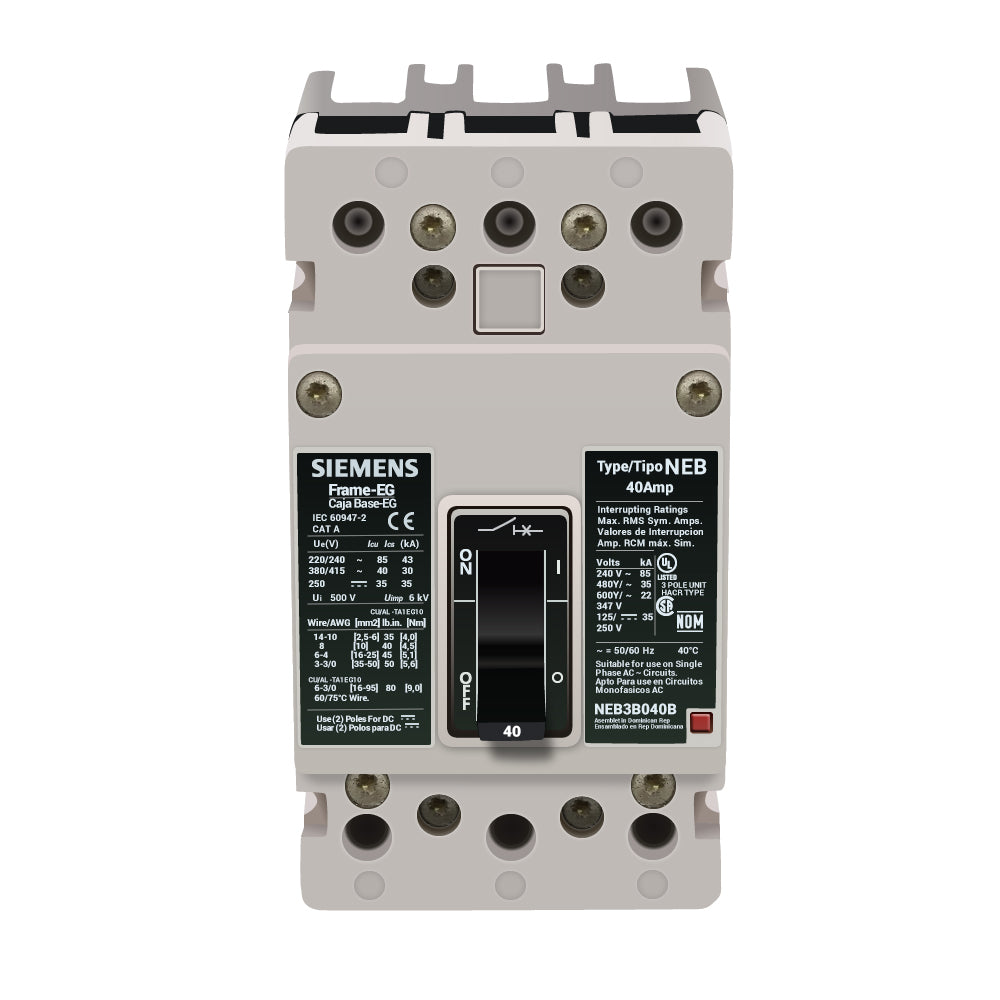

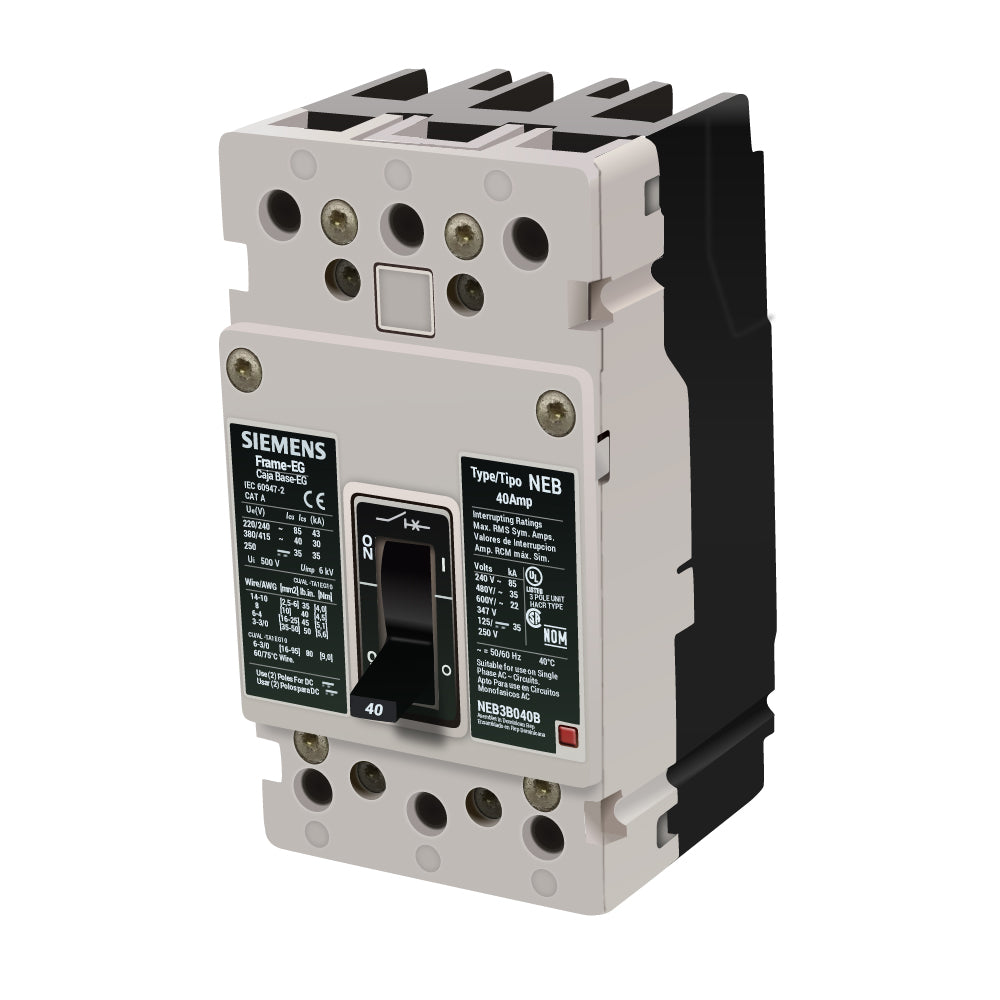

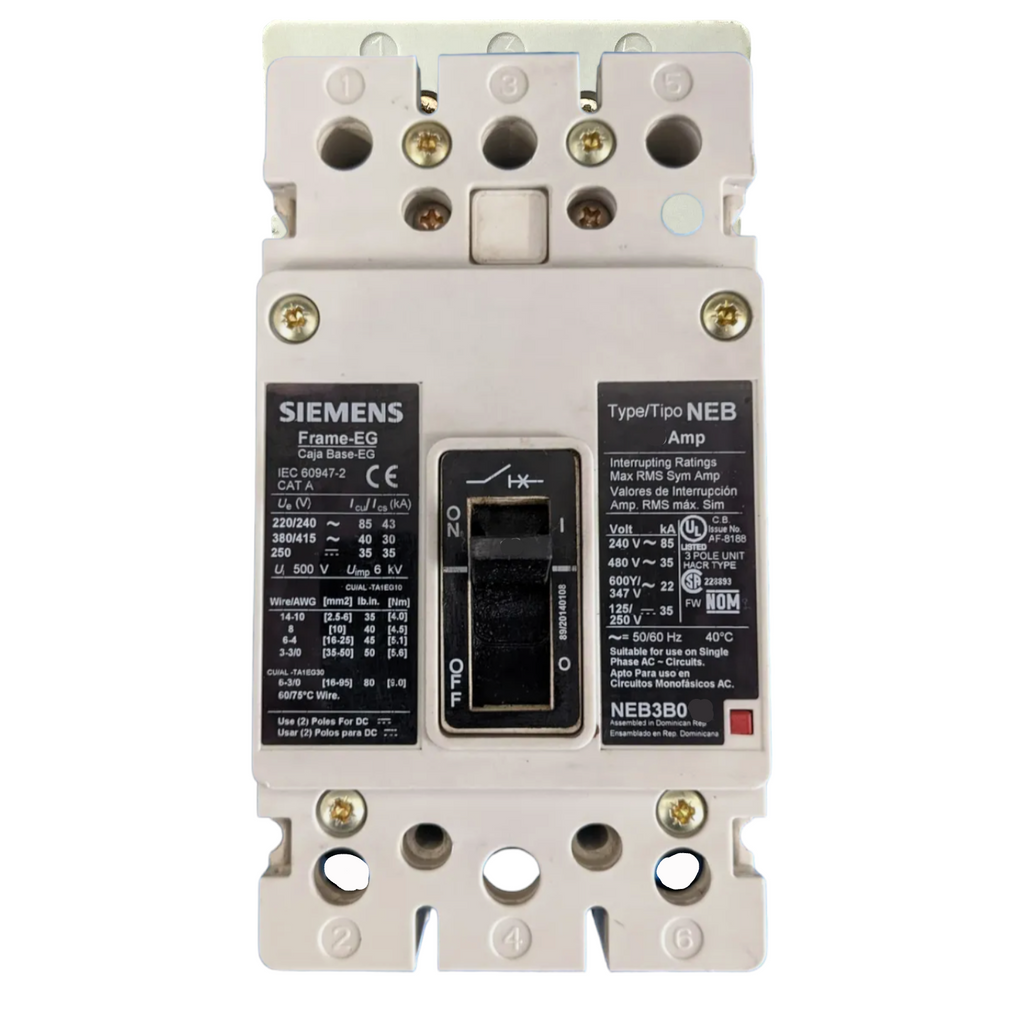

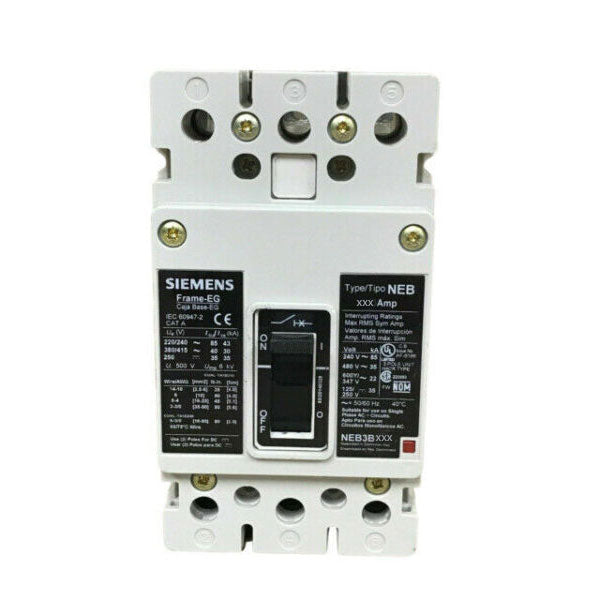

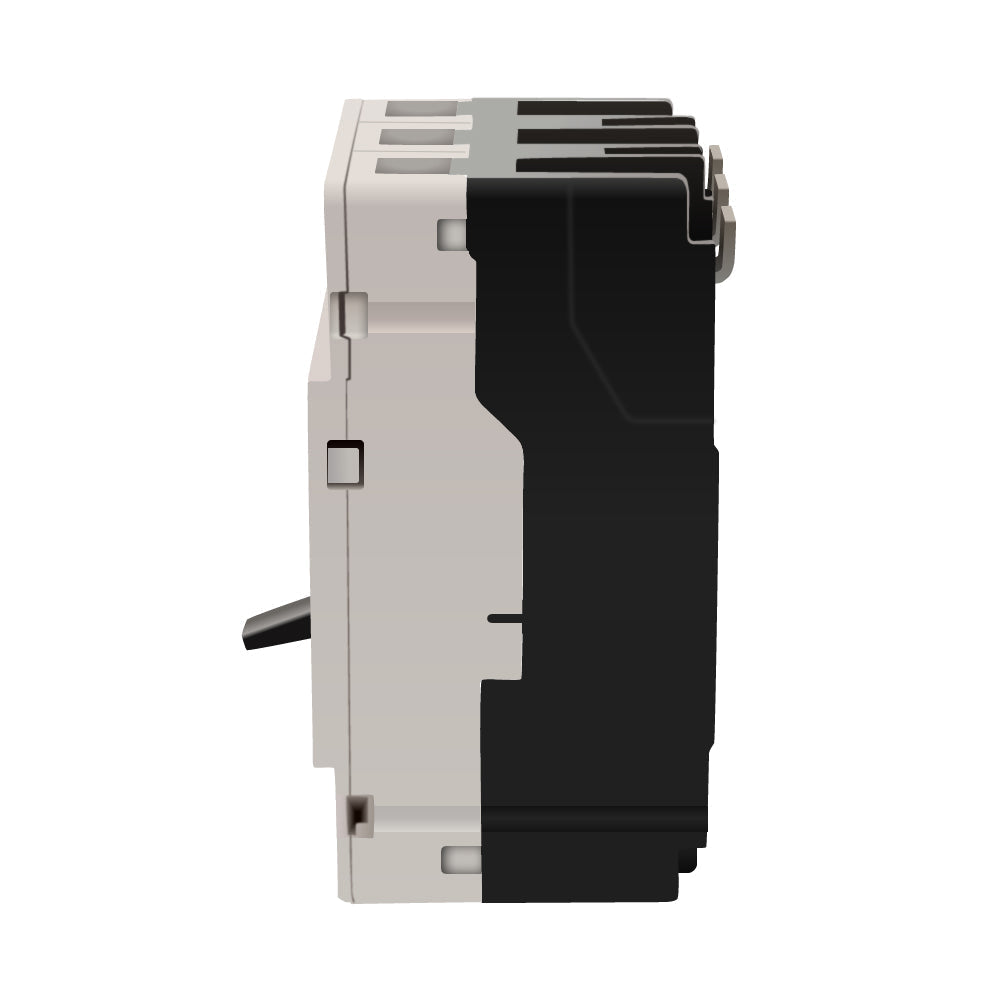

NEB3B040B is a Siemens 3 pole, 40 amp, 600V bolt-on molded case circuit breaker designed for panelboard mounting with a 35kA interrupting rating at 480V. This Siemens NEB series breaker features a thermal-magnetic trip unit and is UL listed for standard breaking capacity. It is suitable for low voltage applications and includes load side lug terminals for secure connections.
- Part Number: NEB3B040B
- Manufacturer: Siemens
- Amperage: 40A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 35kA@480V
- Series/Frame: NEB
- Frame Type: EG
- Trip Unit: Thermal-Magnetic
- Application: Panelboard Mount
- Certifications: UL Listed
Specifications
- Part Number: NEB3B040B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : NEB Series
- Type : NEB
- Voltage : 600
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783643558557
- GTIN : 00783643558557
- Country of Origin : Dominican Republic
- Dimensions : 6.693 x 3.543 x 4.331 inch
- Weight : 2.601
- Certification : Ul Listed
