Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NEB3B030B

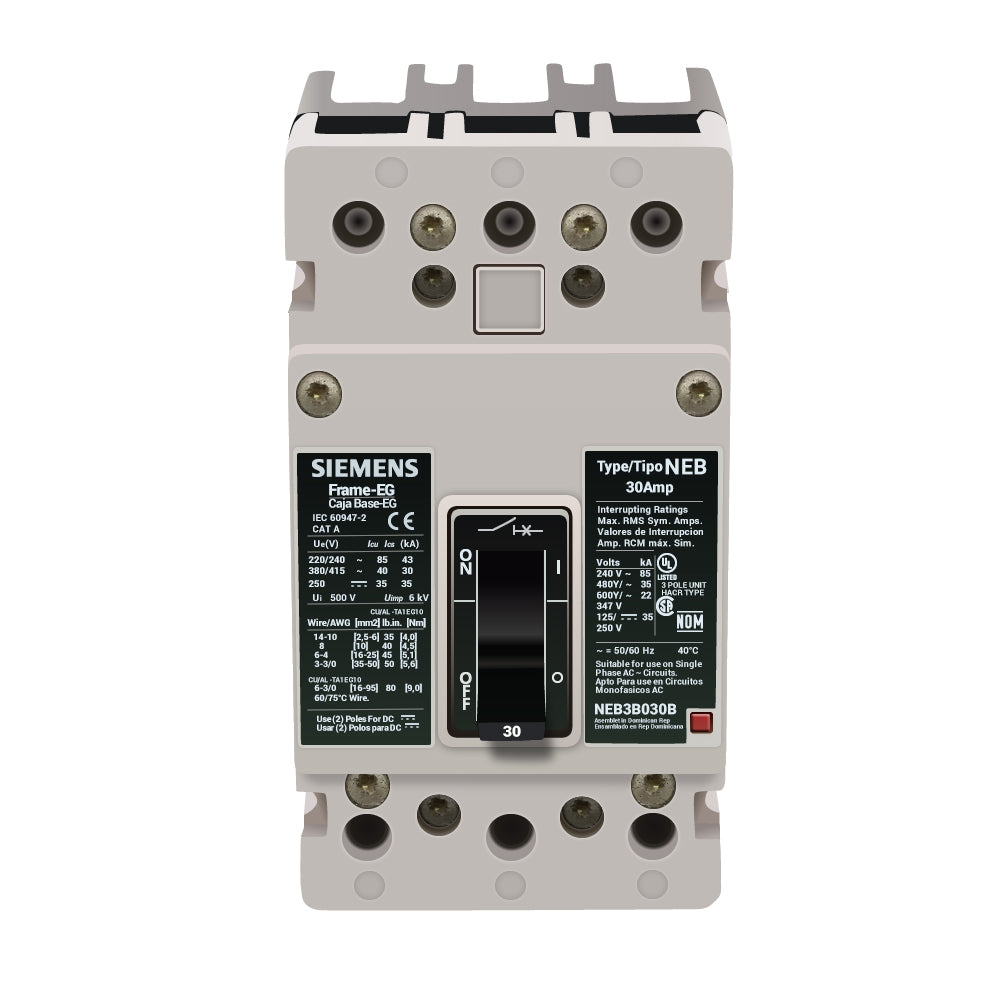

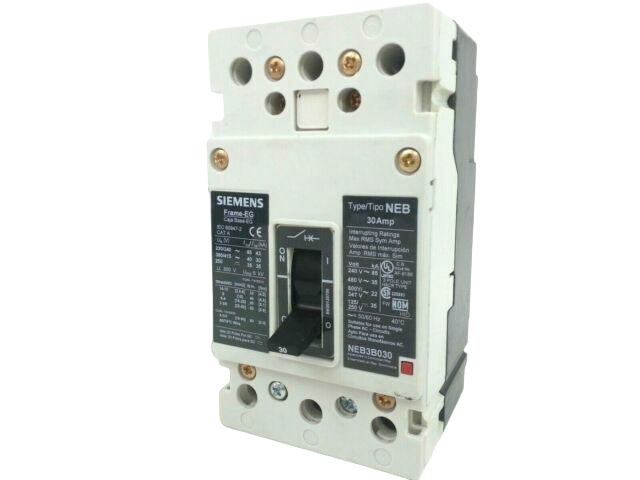

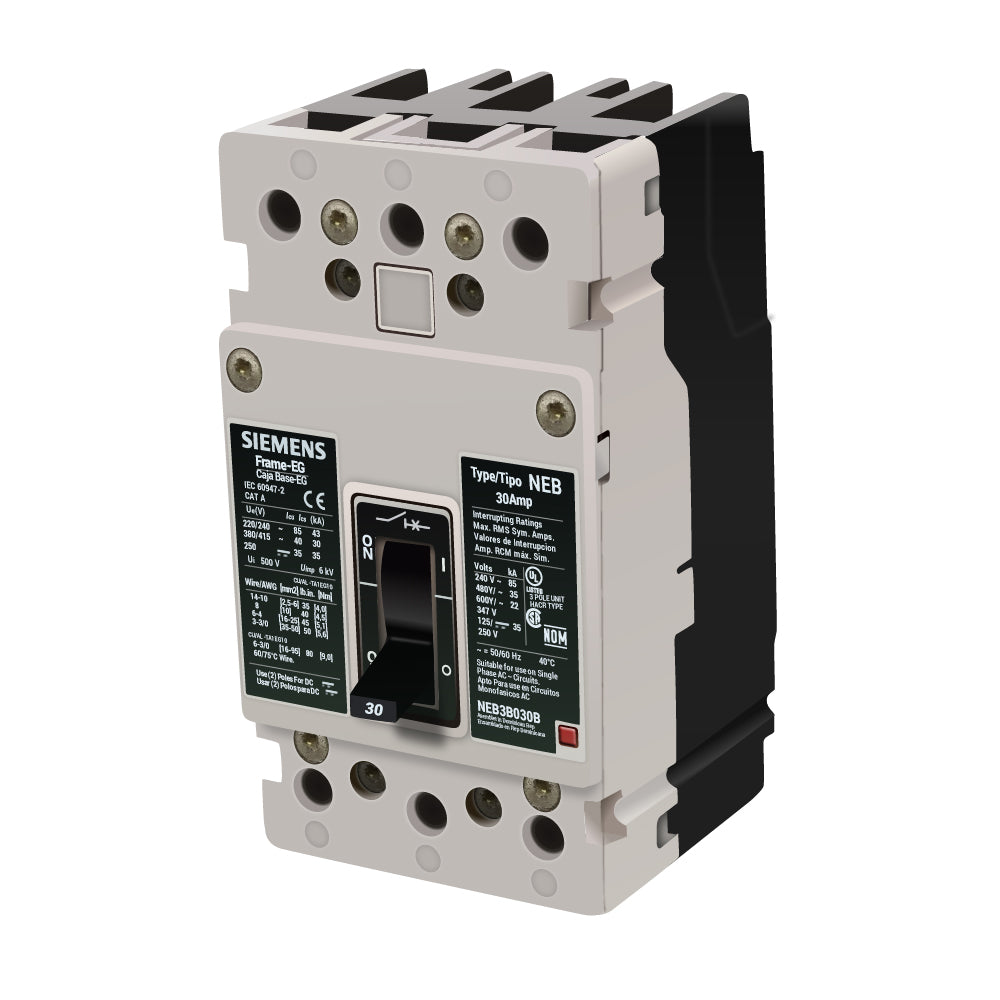

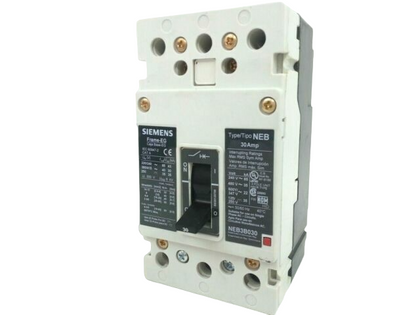

NEB3B030B is a Siemens 3-pole molded case circuit breaker designed for panelboard mounting with a 30 amp rating and 600 volts AC capability.This circuit breaker features a NEB frame with thermal-magnetic trip unit, providing reliable long-time and instantaneous trip functions. It has a 35 kA interrupting rating at 480 volts and includes load side lug terminals for bolt-on installation. The breaker is UL listed and suitable for 50/60 Hz applications.
- Amperage: 30 Amps
- Voltage: 600 Volts AC
- Number of Poles: 3
- Frame Type: NEB
- Interrupt Rating: 35 kA at 480V
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic

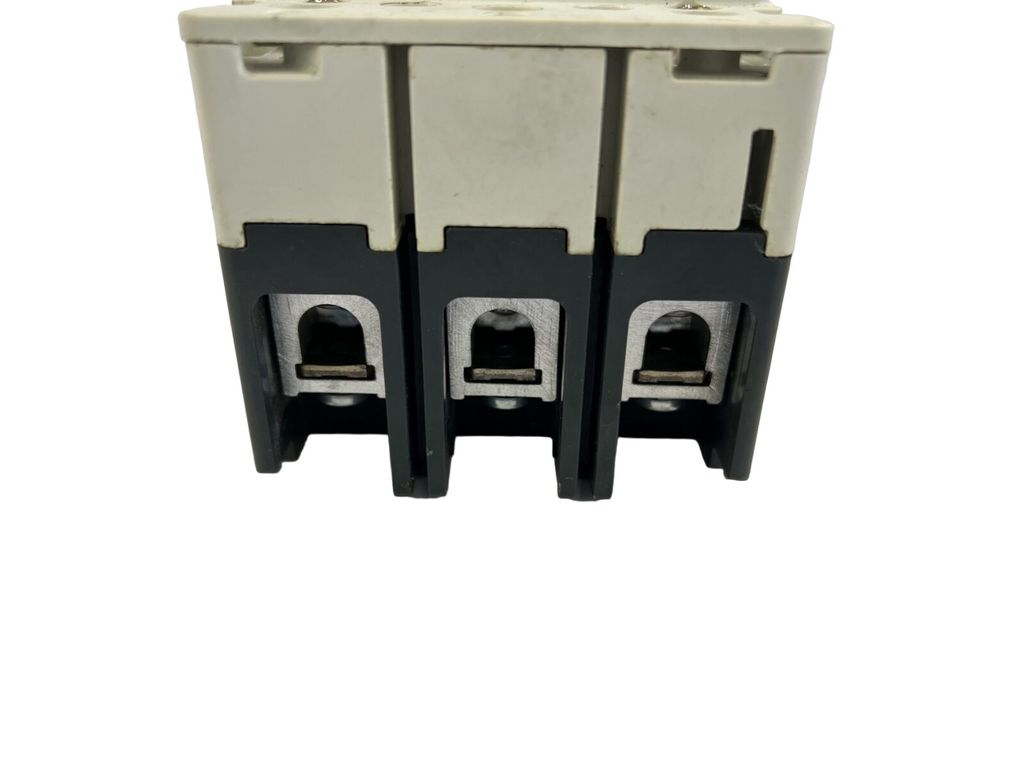

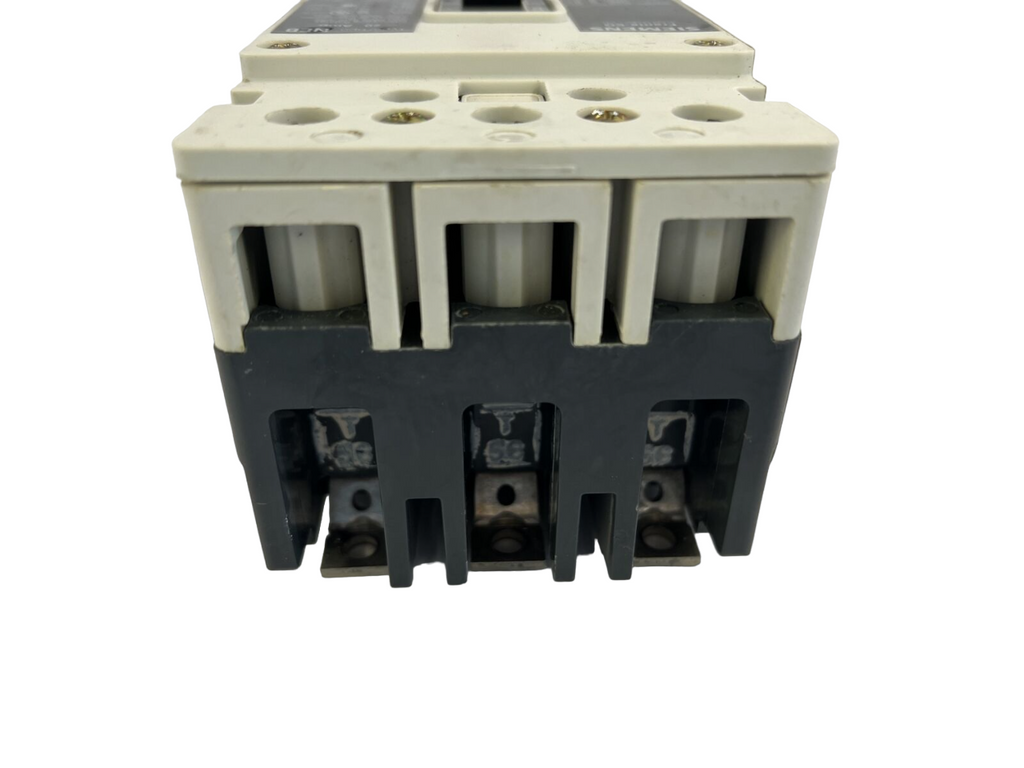

- Load Side Lug Terminals Included
- Frequency: 50/60 Hz
- UL Listed
Specifications
- Part Number: NEB3B030B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : NEB Series
- Type : NEB
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
Product Data
- UPC : 783643558533
- GTIN : 00783643558533
- Country of Origin : Dominican Republic
- Dimensions : 3" X 5.5" X 3"
- Weight : 1.257 lb
- Certification : UL, CSA
- Wire Size : 14 to 1/0 AWG
